Measurement E216M189
| Experiment: | CLAS12 Run Group A | |
|---|---|---|
| Year: | 2018 |
|
| Spokesperson: | Krishna Chandra | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/d(−cos(θ(p))) | |
| Q2: | 2.4 — 3.0 GeV2 | |
| W: | 1.7 — 1.75 GeV | |

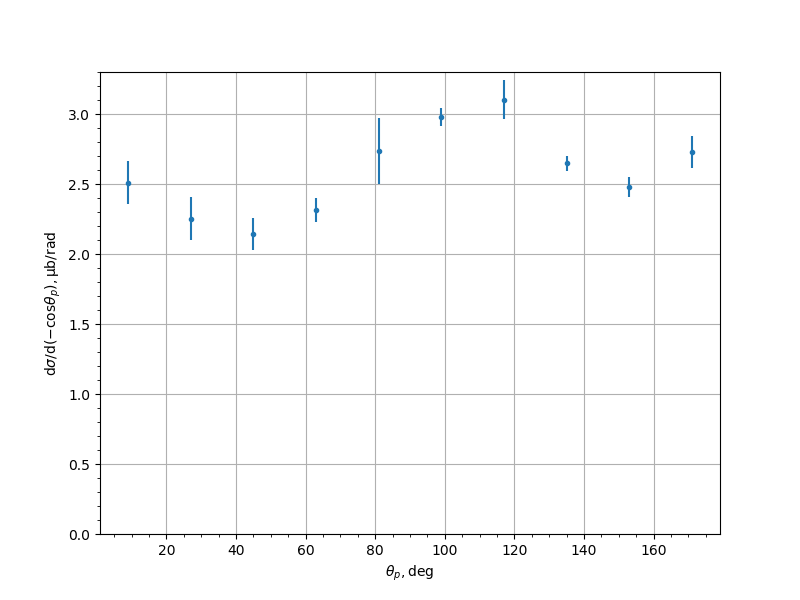

| θ(p), [deg] | dσ/d(−cos(θ(p))), [μb/rad] | uncertainty |
|---|---|---|
| 9.0 | 2.50964 | 0.153436 |
| 27.0 | 2.25466 | 0.156064 |
| 45.0 | 2.14399 | 0.112762 |
| 63.0 | 2.31544 | 0.0878297 |
| 81.0 | 2.73636 | 0.237122 |
| 99.0 | 2.97889 | 0.0635472 |
| 117.0 | 3.10287 | 0.139433 |
| 135.0 | 2.65031 | 0.0553504 |
| 153.0 | 2.48356 | 0.0707773 |
| 171.0 | 2.73202 | 0.114892 |
