Measurement E216M198
| Experiment: | CLAS12 Run Group A | |
|---|---|---|
| Year: | 2018 |
|
| Spokesperson: | Krishna Chandra | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/d(−cos(θ(p))) | |
| Q2: | 2.4 — 3.0 GeV2 | |
| W: | 1.75 — 1.8 GeV | |

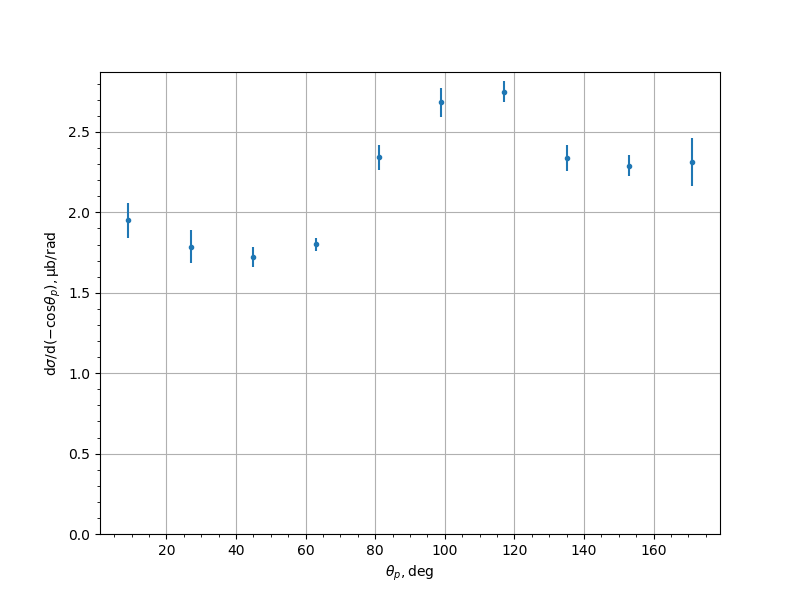

| θ(p), [deg] | dσ/d(−cos(θ(p))), [μb/rad] | uncertainty |
|---|---|---|
| 9.0 | 1.94936 | 0.109859 |
| 27.0 | 1.78584 | 0.101916 |
| 45.0 | 1.72461 | 0.0622391 |
| 63.0 | 1.80143 | 0.0409214 |
| 81.0 | 2.34183 | 0.0761107 |
| 99.0 | 2.6839 | 0.0884393 |
| 117.0 | 2.74981 | 0.065276 |
| 135.0 | 2.33861 | 0.081191 |
| 153.0 | 2.29072 | 0.0665395 |
| 171.0 | 2.314 | 0.149416 |
