Measurement E216M207
| Experiment: | CLAS12 Run Group A | |
|---|---|---|
| Year: | 2018 |
|
| Spokesperson: | Krishna Chandra | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/d(−cos(θ(p))) | |
| Q2: | 2.4 — 3.0 GeV2 | |
| W: | 1.8 — 1.85 GeV | |

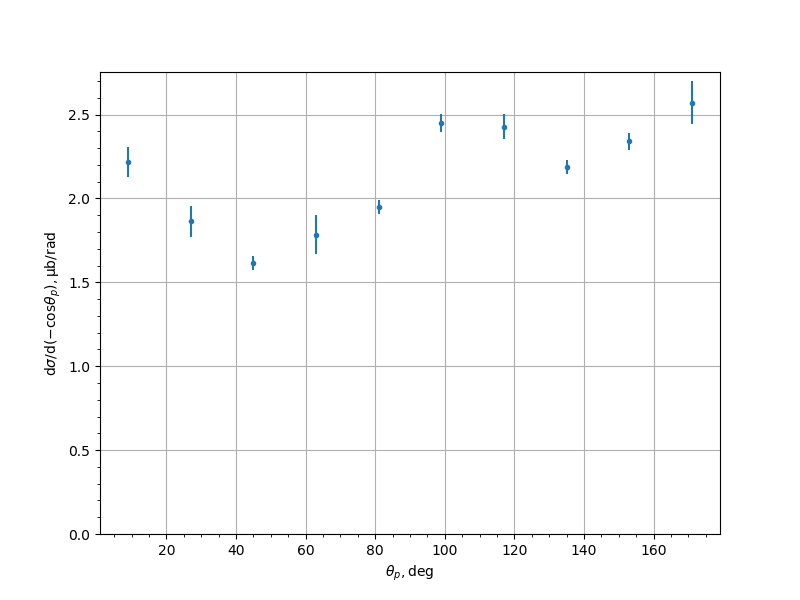

| θ(p), [deg] | dσ/d(−cos(θ(p))), [μb/rad] | uncertainty |
|---|---|---|
| 9.0 | 2.21538 | 0.0891325 |
| 27.0 | 1.86395 | 0.093476 |
| 45.0 | 1.61451 | 0.0410461 |
| 63.0 | 1.78479 | 0.116068 |
| 81.0 | 1.9503 | 0.0405572 |
| 99.0 | 2.45148 | 0.0540552 |
| 117.0 | 2.42696 | 0.0753118 |
| 135.0 | 2.18808 | 0.0433712 |
| 153.0 | 2.34034 | 0.051731 |
| 171.0 | 2.57093 | 0.126511 |
