Measurement E216M243
| Experiment: | CLAS12 Run Group A | |
|---|---|---|
| Year: | 2018 |
|
| Spokesperson: | Krishna Chandra | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/d(−cos(θ(p))) | |
| Q2: | 2.4 — 3.0 GeV2 | |
| W: | 2.0 — 2.05 GeV | |

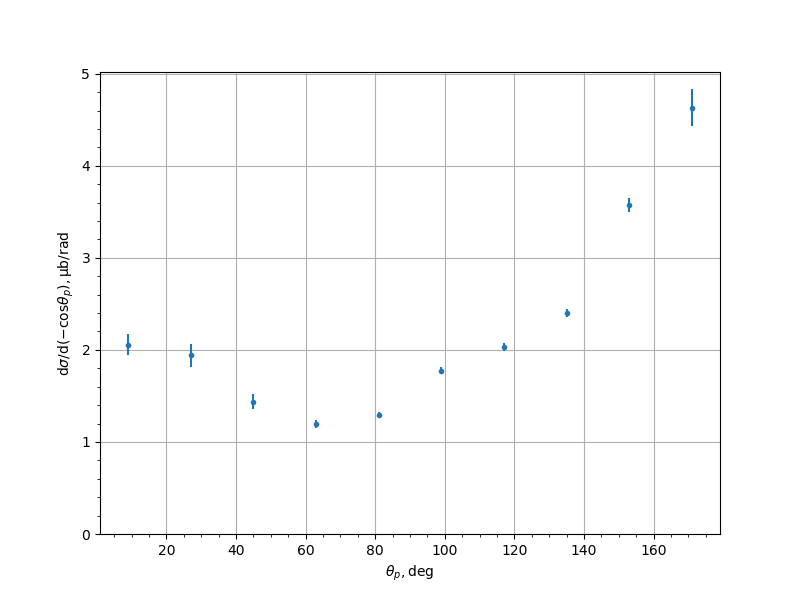

| θ(p), [deg] | dσ/d(−cos(θ(p))), [μb/rad] | uncertainty |
|---|---|---|
| 9.0 | 2.05677 | 0.113273 |
| 27.0 | 1.94132 | 0.127615 |
| 45.0 | 1.43834 | 0.0791107 |
| 63.0 | 1.19489 | 0.0453462 |
| 81.0 | 1.29774 | 0.027378 |
| 99.0 | 1.77492 | 0.0344635 |
| 117.0 | 2.03323 | 0.0465328 |
| 135.0 | 2.3974 | 0.0438349 |
| 153.0 | 3.57026 | 0.074418 |
| 171.0 | 4.63111 | 0.203461 |
