Measurement E216M288
| Experiment: | CLAS12 Run Group A | |
|---|---|---|
| Year: | 2018 |
|
| Spokesperson: | Krishna Chandra | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/d(−cos(θ(p))) | |
| Q2: | 3.0 — 3.5 GeV2 | |
| W: | 1.55 — 1.6 GeV | |

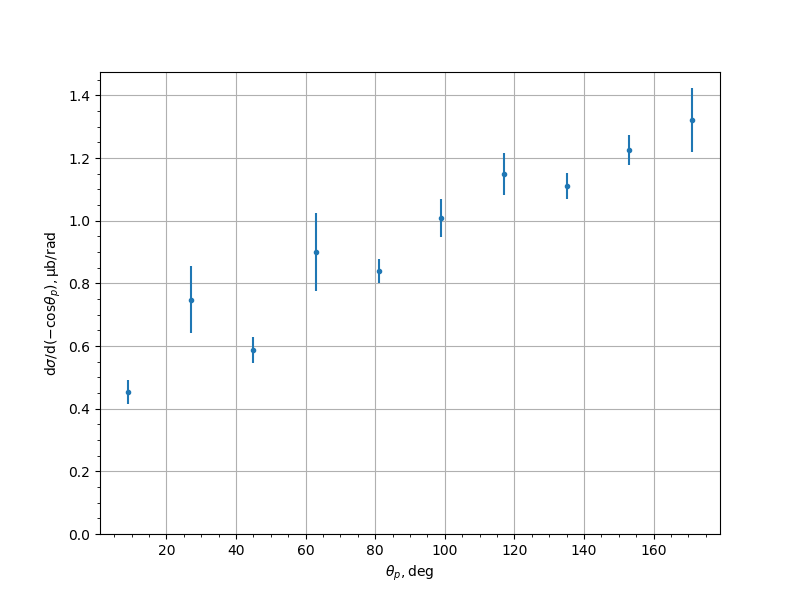

| θ(p), [deg] | dσ/d(−cos(θ(p))), [μb/rad] | uncertainty |
|---|---|---|
| 9.0 | 0.453607 | 0.0392939 |
| 27.0 | 0.748532 | 0.106086 |
| 45.0 | 0.587597 | 0.042284 |
| 63.0 | 0.898949 | 0.124459 |
| 81.0 | 0.839562 | 0.0396916 |
| 99.0 | 1.00866 | 0.0597833 |
| 117.0 | 1.14855 | 0.0664612 |
| 135.0 | 1.11043 | 0.0420375 |
| 153.0 | 1.226 | 0.0488531 |
| 171.0 | 1.32208 | 0.102286 |
