Measurement E216M297
| Experiment: | CLAS12 Run Group A | |
|---|---|---|
| Year: | 2018 |
|
| Spokesperson: | Krishna Chandra | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/d(−cos(θ(p))) | |
| Q2: | 3.0 — 3.5 GeV2 | |
| W: | 1.6 — 1.65 GeV | |

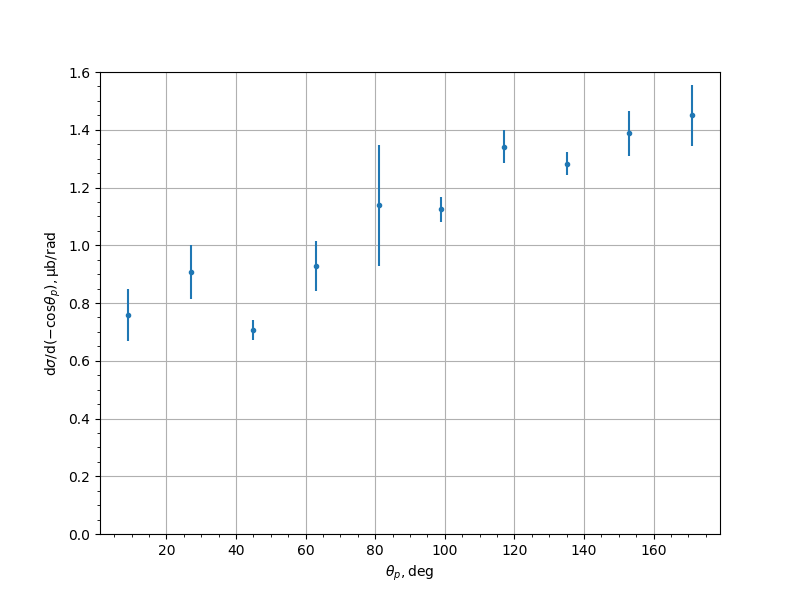

| θ(p), [deg] | dσ/d(−cos(θ(p))), [μb/rad] | uncertainty |
|---|---|---|
| 9.0 | 0.757409 | 0.0901574 |
| 27.0 | 0.908109 | 0.0931538 |
| 45.0 | 0.706612 | 0.0353058 |
| 63.0 | 0.929062 | 0.087044 |
| 81.0 | 1.1391 | 0.209724 |
| 99.0 | 1.12414 | 0.0436286 |
| 117.0 | 1.34133 | 0.0570669 |
| 135.0 | 1.28265 | 0.0387046 |
| 153.0 | 1.38727 | 0.0764896 |
| 171.0 | 1.44966 | 0.106077 |
