Measurement E216M432
| Experiment: | CLAS12 Run Group A | |
|---|---|---|
| Year: | 2018 |
|
| Spokesperson: | Krishna Chandra | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/d(−cos(θ(p))) | |
| Q2: | 3.5 — 4.2 GeV2 | |
| W: | 1.65 — 1.7 GeV | |

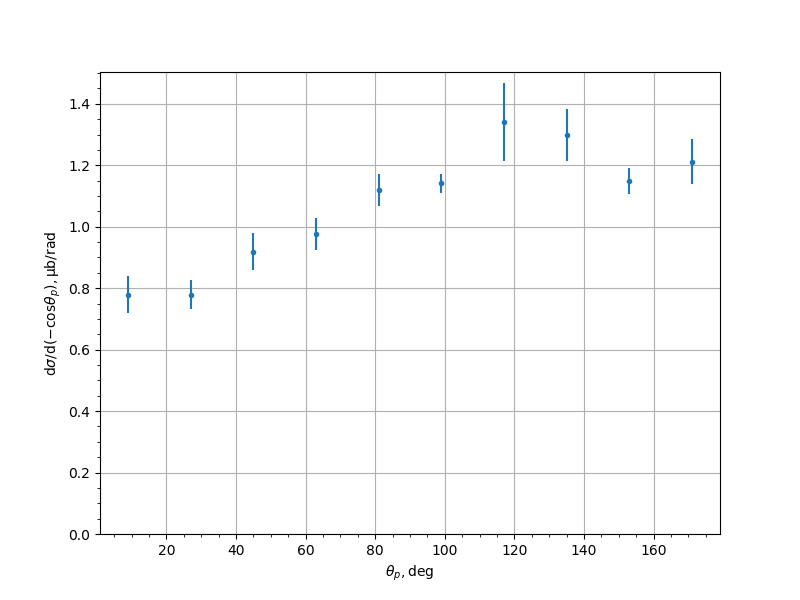

| θ(p), [deg] | dσ/d(−cos(θ(p))), [μb/rad] | uncertainty |
|---|---|---|
| 9.0 | 0.77895 | 0.0608354 |
| 27.0 | 0.778884 | 0.0462549 |
| 45.0 | 0.918551 | 0.0598536 |
| 63.0 | 0.97617 | 0.0510228 |
| 81.0 | 1.11887 | 0.0514349 |
| 99.0 | 1.14131 | 0.0300159 |
| 117.0 | 1.33924 | 0.126824 |
| 135.0 | 1.29821 | 0.0832848 |
| 153.0 | 1.14974 | 0.0417956 |
| 171.0 | 1.2121 | 0.072145 |
