Measurement E216M477
| Experiment: | CLAS12 Run Group A | |
|---|---|---|
| Year: | 2018 |
|
| Spokesperson: | Krishna Chandra | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/d(−cos(θ(p))) | |
| Q2: | 3.5 — 4.2 GeV2 | |
| W: | 1.9 — 1.95 GeV | |

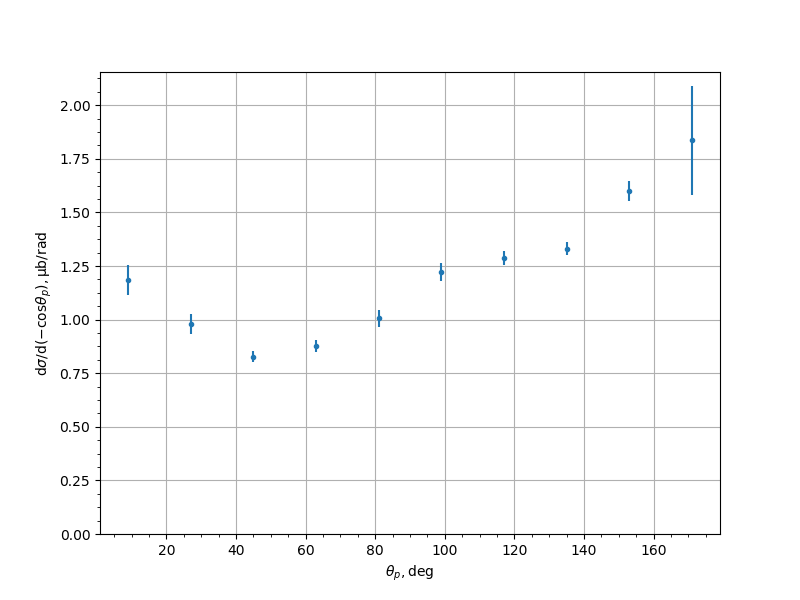

| θ(p), [deg] | dσ/d(−cos(θ(p))), [μb/rad] | uncertainty |
|---|---|---|
| 9.0 | 1.18425 | 0.0714398 |
| 27.0 | 0.978686 | 0.0468465 |
| 45.0 | 0.827769 | 0.0238517 |
| 63.0 | 0.876339 | 0.0276055 |
| 81.0 | 1.00617 | 0.039356 |
| 99.0 | 1.22046 | 0.042095 |
| 117.0 | 1.28878 | 0.0336501 |
| 135.0 | 1.33042 | 0.0311885 |
| 153.0 | 1.5991 | 0.046529 |
| 171.0 | 1.83686 | 0.253931 |
