Measurement E216M504
| Experiment: | CLAS12 Run Group A | |
|---|---|---|
| Year: | 2018 |
|
| Spokesperson: | Krishna Chandra | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/d(−cos(θ(p))) | |
| Q2: | 3.5 — 4.2 GeV2 | |
| W: | 2.05 — 2.1 GeV | |

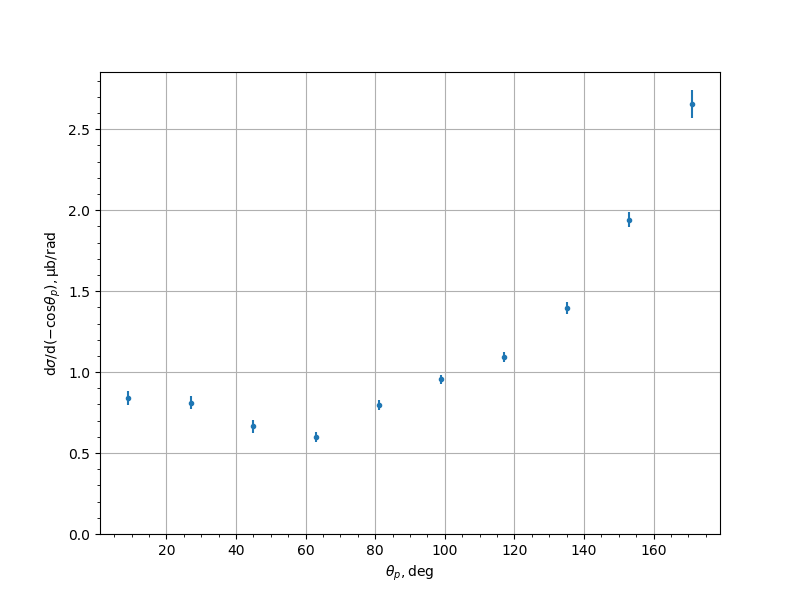

| θ(p), [deg] | dσ/d(−cos(θ(p))), [μb/rad] | uncertainty |
|---|---|---|
| 9.0 | 0.8399 | 0.0456041 |
| 27.0 | 0.810147 | 0.0407315 |
| 45.0 | 0.664397 | 0.0426235 |
| 63.0 | 0.599311 | 0.0297688 |
| 81.0 | 0.797528 | 0.0330311 |
| 99.0 | 0.954532 | 0.0288443 |
| 117.0 | 1.09408 | 0.030142 |
| 135.0 | 1.39426 | 0.0368111 |
| 153.0 | 1.9413 | 0.0482658 |
| 171.0 | 2.65626 | 0.0883602 |
