Measurement E216M567
| Experiment: | CLAS12 Run Group A | |
|---|---|---|
| Year: | 2018 |
|
| Spokesperson: | Krishna Chandra | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/d(−cos(θ(p))) | |
| Q2: | 4.2 — 5.0 GeV2 | |
| W: | 1.7 — 1.75 GeV | |

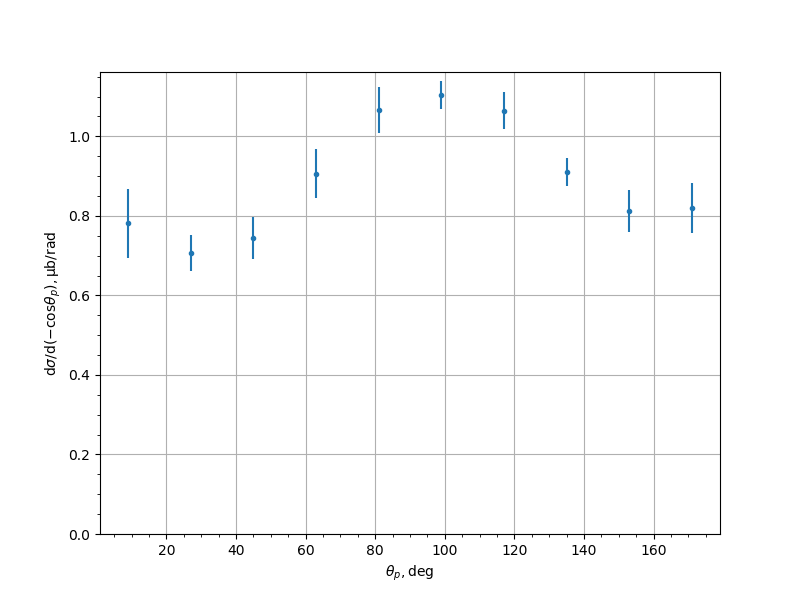

| θ(p), [deg] | dσ/d(−cos(θ(p))), [μb/rad] | uncertainty |
|---|---|---|
| 9.0 | 0.780918 | 0.0865229 |
| 27.0 | 0.707385 | 0.0457457 |
| 45.0 | 0.74495 | 0.0526039 |
| 63.0 | 0.905832 | 0.0613228 |
| 81.0 | 1.06541 | 0.0577306 |
| 99.0 | 1.10364 | 0.0344121 |
| 117.0 | 1.06485 | 0.0455412 |
| 135.0 | 0.909451 | 0.0350742 |
| 153.0 | 0.812305 | 0.051611 |
| 171.0 | 0.820692 | 0.0627498 |
