Measurement E216M576
| Experiment: | CLAS12 Run Group A | |
|---|---|---|
| Year: | 2018 |
|
| Spokesperson: | Krishna Chandra | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/d(−cos(θ(p))) | |
| Q2: | 4.2 — 5.0 GeV2 | |
| W: | 1.75 — 1.8 GeV | |

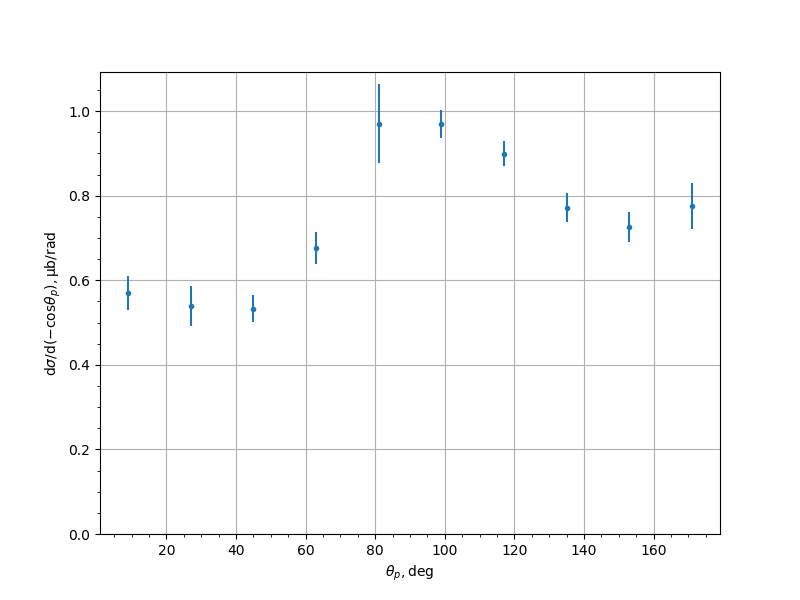

| θ(p), [deg] | dσ/d(−cos(θ(p))), [μb/rad] | uncertainty |
|---|---|---|
| 9.0 | 0.569716 | 0.0409197 |
| 27.0 | 0.538434 | 0.0476248 |
| 45.0 | 0.53331 | 0.0312092 |
| 63.0 | 0.67619 | 0.037604 |
| 81.0 | 0.970166 | 0.0938405 |
| 99.0 | 0.969452 | 0.0322365 |
| 117.0 | 0.899243 | 0.0300282 |
| 135.0 | 0.77216 | 0.0344527 |
| 153.0 | 0.725908 | 0.0354699 |
| 171.0 | 0.775674 | 0.0554986 |
