Measurement E216M603
| Experiment: | CLAS12 Run Group A | |
|---|---|---|
| Year: | 2018 |
|
| Spokesperson: | Krishna Chandra | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/d(−cos(θ(p))) | |
| Q2: | 4.2 — 5.0 GeV2 | |
| W: | 1.9 — 1.95 GeV | |

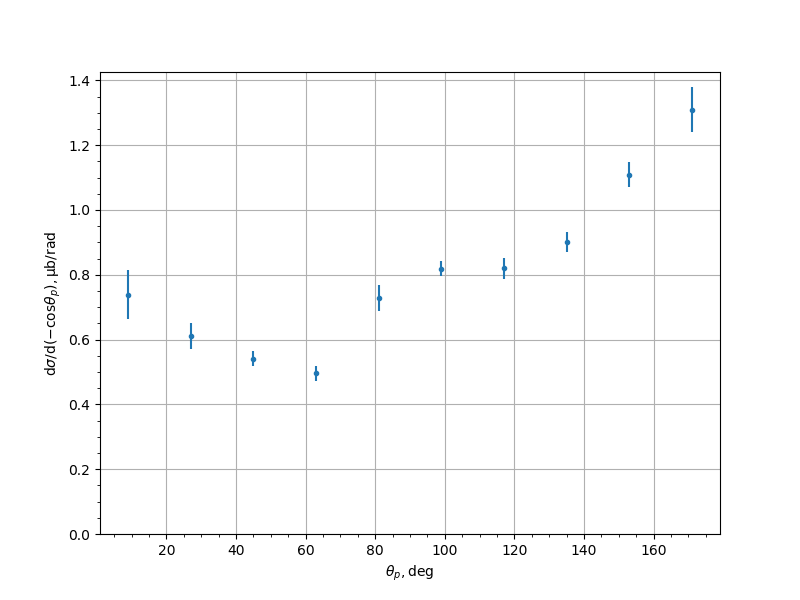

| θ(p), [deg] | dσ/d(−cos(θ(p))), [μb/rad] | uncertainty |
|---|---|---|
| 9.0 | 0.738906 | 0.0753203 |
| 27.0 | 0.61036 | 0.0407576 |
| 45.0 | 0.54096 | 0.0227564 |
| 63.0 | 0.495491 | 0.0228627 |
| 81.0 | 0.728331 | 0.0394135 |
| 99.0 | 0.819358 | 0.0242793 |
| 117.0 | 0.819623 | 0.0318662 |
| 135.0 | 0.902364 | 0.0307332 |
| 153.0 | 1.1088 | 0.0386038 |
| 171.0 | 1.31013 | 0.0703745 |
