Measurement E216M630
| Experiment: | CLAS12 Run Group A | |
|---|---|---|
| Year: | 2018 |
|
| Spokesperson: | Krishna Chandra | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/d(−cos(θ(p))) | |
| Q2: | 4.2 — 5.0 GeV2 | |
| W: | 2.05 — 2.1 GeV | |

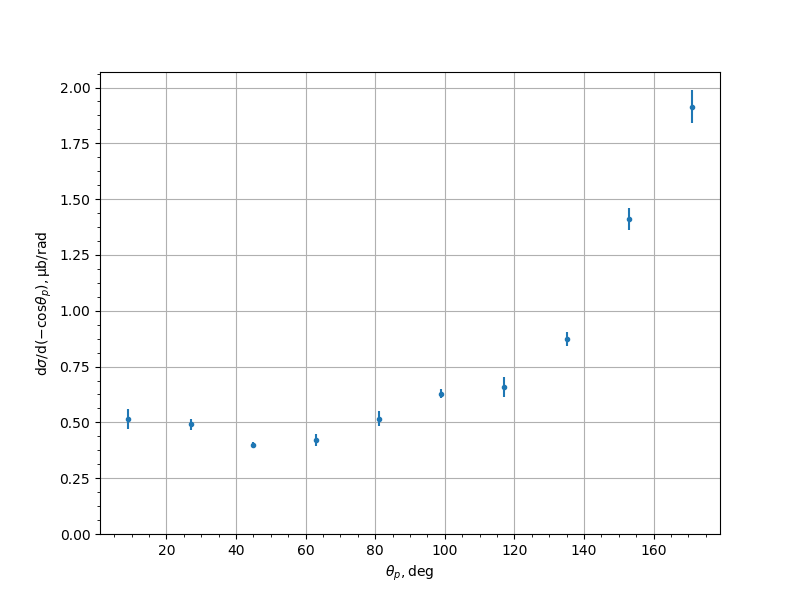

| θ(p), [deg] | dσ/d(−cos(θ(p))), [μb/rad] | uncertainty |
|---|---|---|
| 9.0 | 0.515816 | 0.0460075 |
| 27.0 | 0.491372 | 0.0251151 |
| 45.0 | 0.399606 | 0.0145908 |
| 63.0 | 0.421115 | 0.0262984 |
| 81.0 | 0.517087 | 0.0340475 |
| 99.0 | 0.628041 | 0.0195634 |
| 117.0 | 0.65791 | 0.0451221 |
| 135.0 | 0.873193 | 0.0313583 |
| 153.0 | 1.41088 | 0.0505354 |
| 171.0 | 1.91456 | 0.0747916 |
