Measurement E216M675
| Experiment: | CLAS12 Run Group A | |
|---|---|---|
| Year: | 2018 |
|
| Spokesperson: | Krishna Chandra | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/d(−cos(θ(p))) | |
| Q2: | 5.0 — 6.0 GeV2 | |
| W: | 1.6 — 1.65 GeV | |

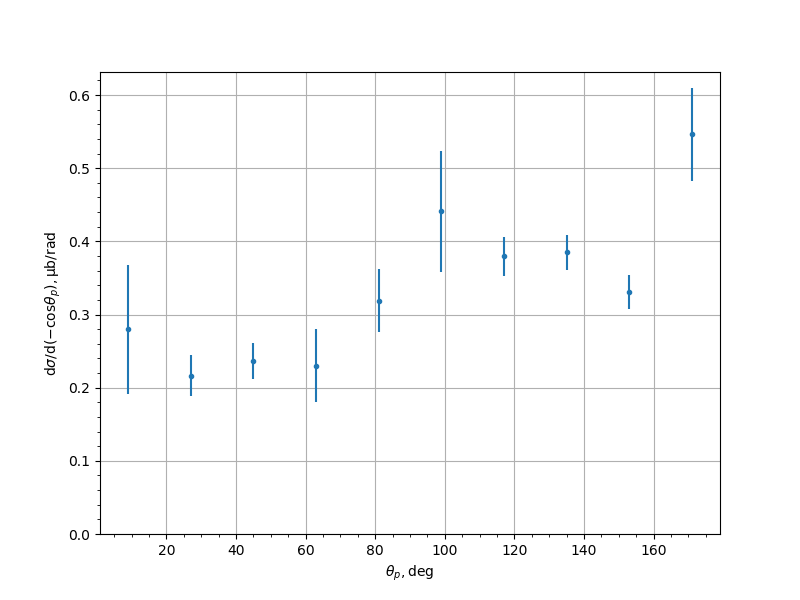

| θ(p), [deg] | dσ/d(−cos(θ(p))), [μb/rad] | uncertainty |
|---|---|---|
| 9.0 | 0.279539 | 0.0878891 |
| 27.0 | 0.216544 | 0.0276911 |
| 45.0 | 0.23585 | 0.0245183 |
| 63.0 | 0.230281 | 0.0495698 |
| 81.0 | 0.318873 | 0.0431641 |
| 99.0 | 0.44098 | 0.0823601 |
| 117.0 | 0.379291 | 0.026176 |
| 135.0 | 0.385088 | 0.0237308 |
| 153.0 | 0.330742 | 0.0232574 |
| 171.0 | 0.546127 | 0.0638506 |
