Measurement E216M684
| Experiment: | CLAS12 Run Group A | |
|---|---|---|
| Year: | 2018 |
|
| Spokesperson: | Krishna Chandra | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/d(−cos(θ(p))) | |
| Q2: | 5.0 — 6.0 GeV2 | |
| W: | 1.65 — 1.7 GeV | |

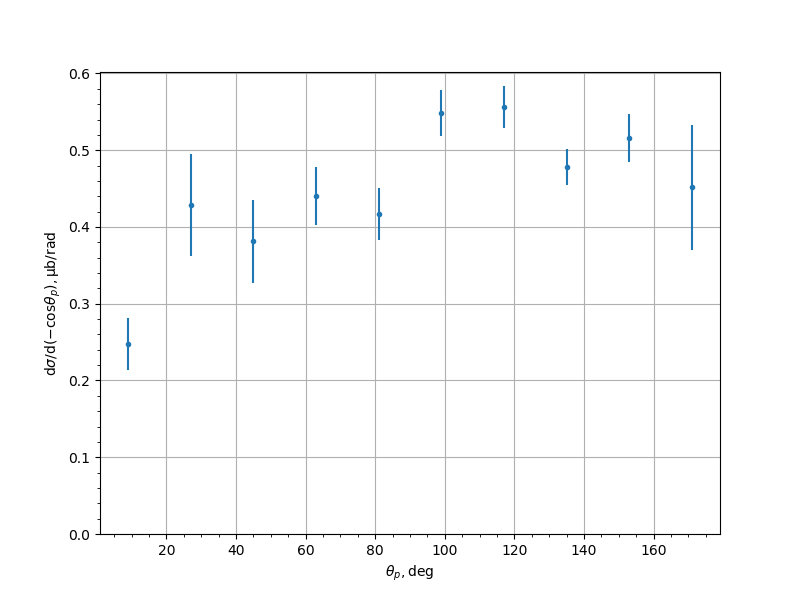

| θ(p), [deg] | dσ/d(−cos(θ(p))), [μb/rad] | uncertainty |
|---|---|---|
| 9.0 | 0.24756 | 0.0338081 |
| 27.0 | 0.428931 | 0.0662524 |
| 45.0 | 0.381139 | 0.0535885 |
| 63.0 | 0.440004 | 0.0375531 |
| 81.0 | 0.416796 | 0.033798 |
| 99.0 | 0.548999 | 0.0300067 |
| 117.0 | 0.55605 | 0.0273768 |
| 135.0 | 0.47766 | 0.0234575 |
| 153.0 | 0.51623 | 0.0312144 |
| 171.0 | 0.451756 | 0.0813486 |
