Measurement E216M710
| Experiment: | CLAS12 Run Group A | |
|---|---|---|
| Year: | 2018 |
|
| Spokesperson: | Krishna Chandra | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/d(−cos(θ(π+))) | |
| Q2: | 5.0 — 6.0 GeV2 | |
| W: | 1.8 — 1.85 GeV | |

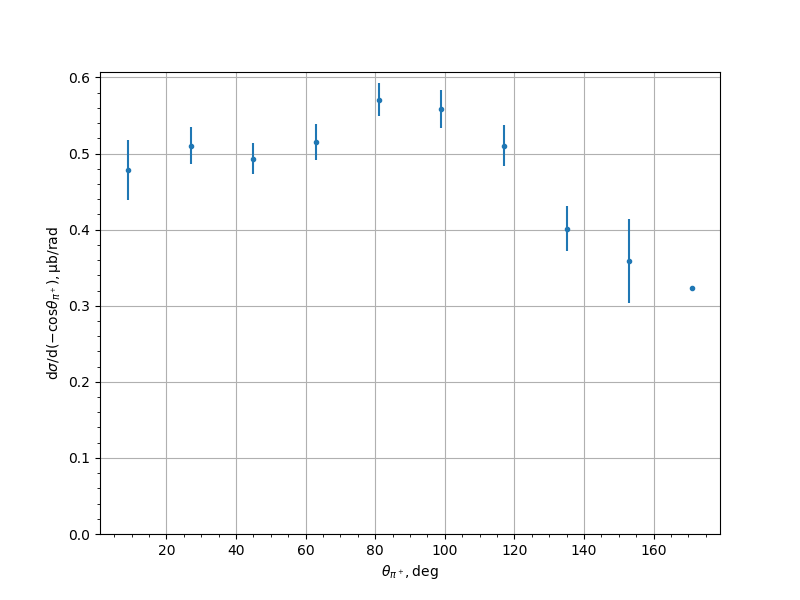

| θ(π+), [deg] | dσ/d(−cos(θ(π+))), [μb/rad] | uncertainty |
|---|---|---|
| 9.0 | 0.47856 | 0.0397997 |
| 27.0 | 0.510373 | 0.0239266 |
| 45.0 | 0.493263 | 0.0201322 |
| 63.0 | 0.514878 | 0.0239368 |
| 81.0 | 0.570881 | 0.0218266 |
| 99.0 | 0.558801 | 0.0250713 |
| 117.0 | 0.51053 | 0.0266488 |
| 135.0 | 0.401149 | 0.0296167 |
| 153.0 | 0.358581 | 0.0553743 |
| 171.0 | 0.323125 | 0.00044456 |
