Measurement E216M720
| Experiment: | CLAS12 Run Group A | |
|---|---|---|
| Year: | 2018 |
|
| Spokesperson: | Krishna Chandra | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/d(−cos(θ(p))) | |
| Q2: | 5.0 — 6.0 GeV2 | |
| W: | 1.85 — 1.9 GeV | |

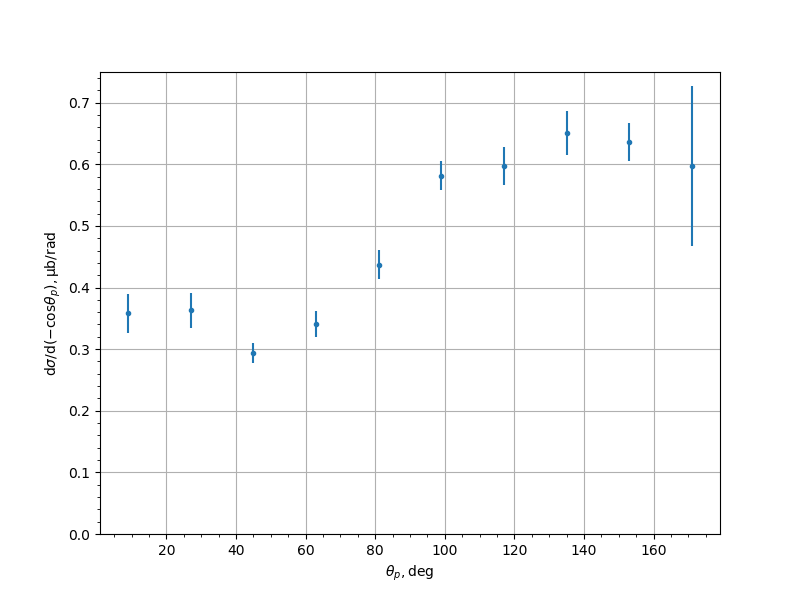

| θ(p), [deg] | dσ/d(−cos(θ(p))), [μb/rad] | uncertainty |
|---|---|---|
| 9.0 | 0.358011 | 0.0317992 |
| 27.0 | 0.363337 | 0.0284052 |
| 45.0 | 0.294081 | 0.0162386 |
| 63.0 | 0.341185 | 0.0207363 |
| 81.0 | 0.437257 | 0.0233753 |
| 99.0 | 0.581759 | 0.023833 |
| 117.0 | 0.597054 | 0.0305417 |
| 135.0 | 0.650498 | 0.0354449 |
| 153.0 | 0.636743 | 0.0308599 |
| 171.0 | 0.597001 | 0.130265 |
