Measurement E216M754
| Experiment: | CLAS12 Run Group A | |
|---|---|---|
| Year: | 2018 |
|
| Spokesperson: | Krishna Chandra | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/d(−cos(θ(π−))) | |
| Q2: | 5.0 — 6.0 GeV2 | |
| W: | 2.05 — 2.1 GeV | |

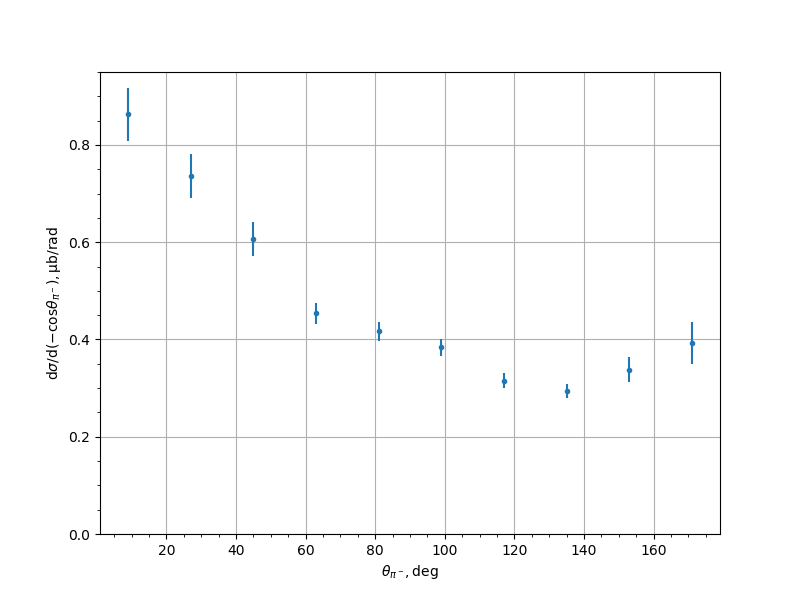

| θ(π−), [deg] | dσ/d(−cos(θ(π−))), [μb/rad] | uncertainty |
|---|---|---|
| 9.0 | 0.86335 | 0.0548376 |
| 27.0 | 0.736369 | 0.0452116 |
| 45.0 | 0.606763 | 0.0344382 |
| 63.0 | 0.453632 | 0.021037 |
| 81.0 | 0.416571 | 0.0192032 |
| 99.0 | 0.383947 | 0.0171901 |
| 117.0 | 0.315459 | 0.0151473 |
| 135.0 | 0.294255 | 0.0140373 |
| 153.0 | 0.337875 | 0.0258409 |
| 171.0 | 0.393221 | 0.0429314 |
