Measurement E216M783
| Experiment: | CLAS12 Run Group A | |
|---|---|---|
| Year: | 2018 |
|
| Spokesperson: | Krishna Chandra | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/d(−cos(θ(p))) | |
| Q2: | 6.0 — 7.0 GeV2 | |
| W: | 1.5 — 1.55 GeV | |

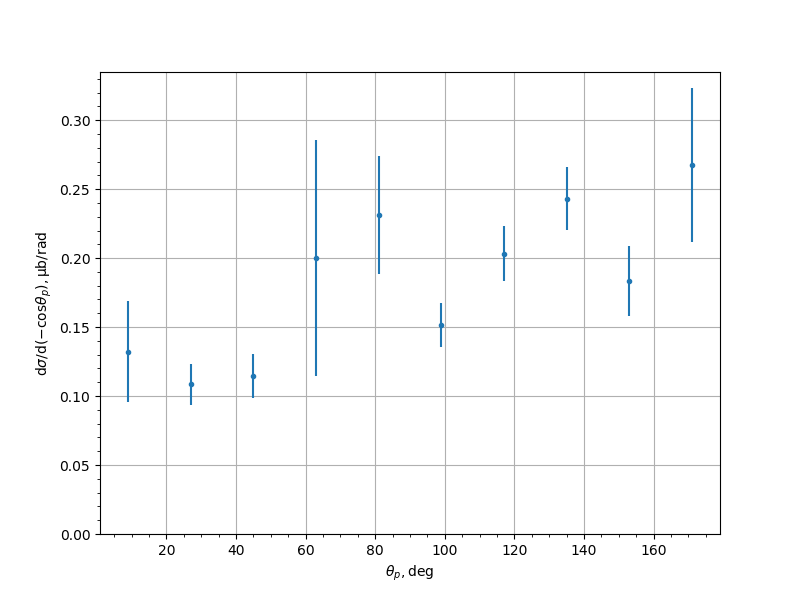

| θ(p), [deg] | dσ/d(−cos(θ(p))), [μb/rad] | uncertainty |
|---|---|---|
| 9.0 | 0.131997 | 0.0365957 |
| 27.0 | 0.108596 | 0.0148405 |
| 45.0 | 0.11475 | 0.015928 |
| 63.0 | 0.199806 | 0.0855815 |
| 81.0 | 0.231169 | 0.0424847 |
| 99.0 | 0.151363 | 0.0158516 |
| 117.0 | 0.203282 | 0.0200405 |
| 135.0 | 0.243194 | 0.0229475 |
| 153.0 | 0.183658 | 0.0253229 |
| 171.0 | 0.267635 | 0.0557759 |
