Measurement E216M810
| Experiment: | CLAS12 Run Group A | |
|---|---|---|
| Year: | 2018 |
|
| Spokesperson: | Krishna Chandra | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/d(−cos(θ(p))) | |
| Q2: | 6.0 — 7.0 GeV2 | |
| W: | 1.65 — 1.7 GeV | |

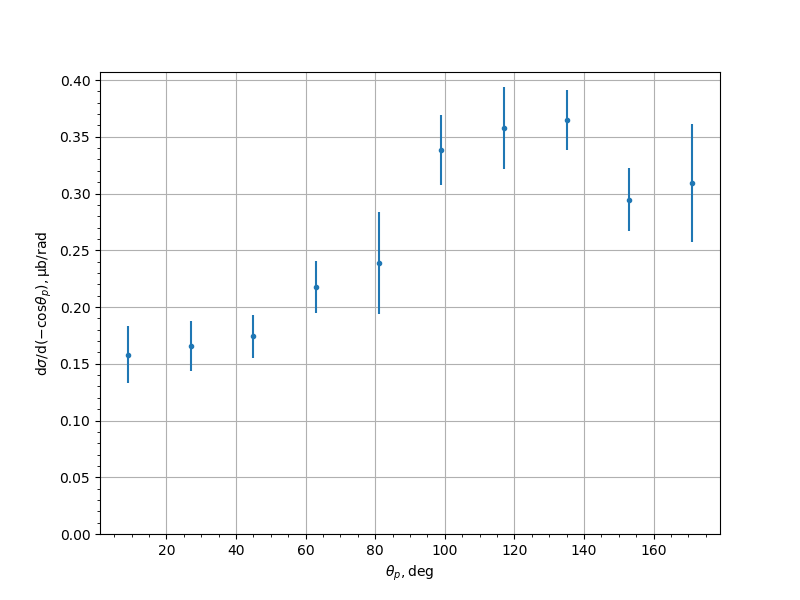

| θ(p), [deg] | dσ/d(−cos(θ(p))), [μb/rad] | uncertainty |
|---|---|---|
| 9.0 | 0.15812 | 0.0250231 |
| 27.0 | 0.165784 | 0.0222416 |
| 45.0 | 0.17425 | 0.0188072 |
| 63.0 | 0.217401 | 0.0227916 |
| 81.0 | 0.238918 | 0.0450852 |
| 99.0 | 0.338027 | 0.0308923 |
| 117.0 | 0.357818 | 0.036208 |
| 135.0 | 0.364527 | 0.0265826 |
| 153.0 | 0.294531 | 0.0278502 |
| 171.0 | 0.309107 | 0.0521213 |
