Measurement E216M864
| Experiment: | CLAS12 Run Group A | |
|---|---|---|
| Year: | 2018 |
|
| Spokesperson: | Krishna Chandra | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/d(−cos(θ(p))) | |
| Q2: | 6.0 — 7.0 GeV2 | |
| W: | 1.95 — 2.0 GeV | |

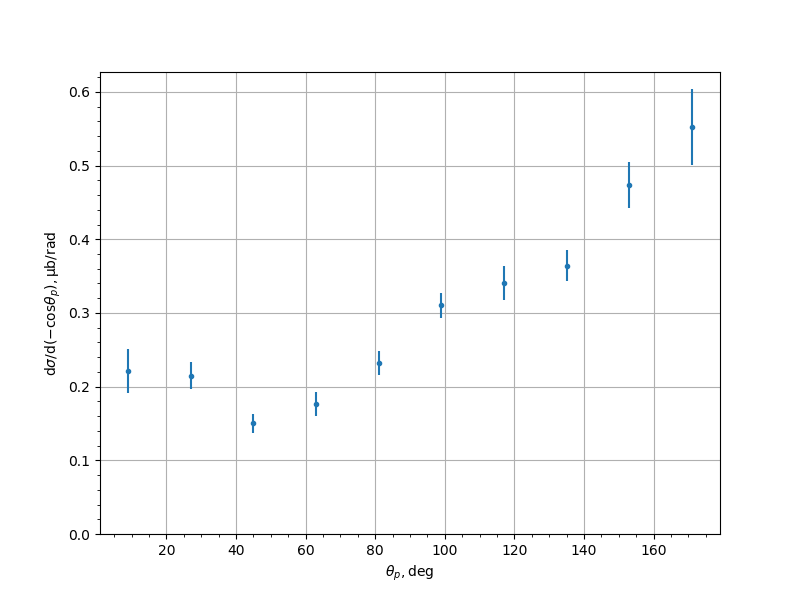

| θ(p), [deg] | dσ/d(−cos(θ(p))), [μb/rad] | uncertainty |
|---|---|---|
| 9.0 | 0.220995 | 0.0298153 |
| 27.0 | 0.215065 | 0.0186526 |
| 45.0 | 0.1502 | 0.0130901 |
| 63.0 | 0.17681 | 0.016536 |
| 81.0 | 0.232021 | 0.0158391 |
| 99.0 | 0.310633 | 0.0169346 |
| 117.0 | 0.340695 | 0.0234661 |
| 135.0 | 0.364194 | 0.0213345 |
| 153.0 | 0.473333 | 0.0314175 |
| 171.0 | 0.552456 | 0.0512654 |
