Measurement E216M873
| Experiment: | CLAS12 Run Group A | |
|---|---|---|
| Year: | 2018 |
|
| Spokesperson: | Krishna Chandra | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/d(−cos(θ(p))) | |
| Q2: | 6.0 — 7.0 GeV2 | |
| W: | 2.0 — 2.05 GeV | |

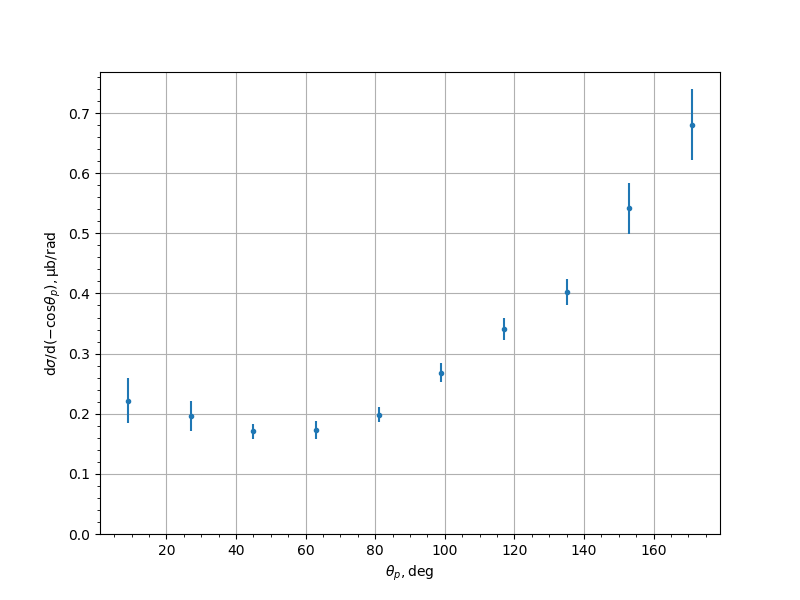

| θ(p), [deg] | dσ/d(−cos(θ(p))), [μb/rad] | uncertainty |
|---|---|---|
| 9.0 | 0.221905 | 0.0379308 |
| 27.0 | 0.196507 | 0.0250239 |
| 45.0 | 0.170946 | 0.0122459 |
| 63.0 | 0.172857 | 0.0148747 |
| 81.0 | 0.198666 | 0.0127816 |
| 99.0 | 0.268139 | 0.0157877 |
| 117.0 | 0.34065 | 0.0183649 |
| 135.0 | 0.402328 | 0.0211329 |
| 153.0 | 0.541484 | 0.0429802 |
| 171.0 | 0.680889 | 0.0583177 |
