Measurement E216M916
| Experiment: | CLAS12 Run Group A | |
|---|---|---|
| Year: | 2018 |
|
| Spokesperson: | Krishna Chandra | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/d(−cos(θ(π−))) | |
| Q2: | 7.0 — 8.0 GeV2 | |
| W: | 1.55 — 1.6 GeV | |

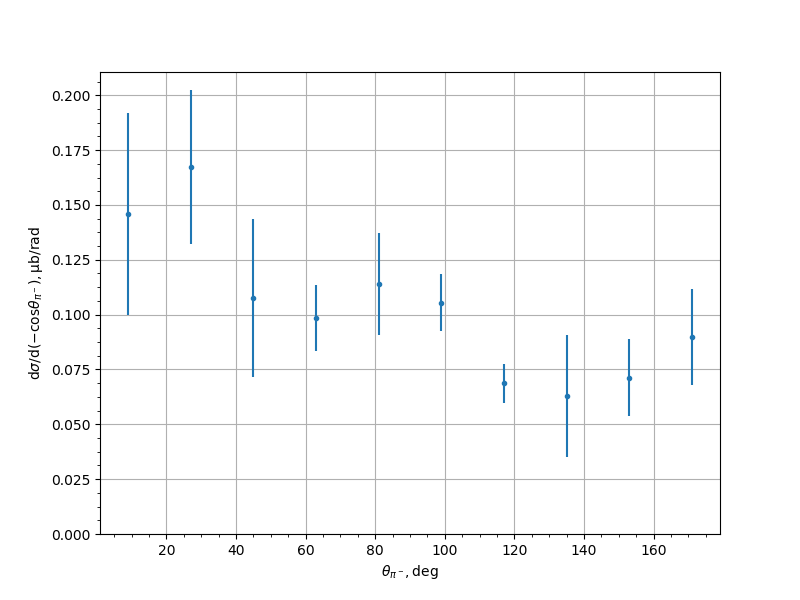

| θ(π−), [deg] | dσ/d(−cos(θ(π−))), [μb/rad] | uncertainty |
|---|---|---|
| 9.0 | 0.145794 | 0.0461134 |
| 27.0 | 0.16722 | 0.0350224 |
| 45.0 | 0.107656 | 0.0360453 |
| 63.0 | 0.0984074 | 0.0149469 |
| 81.0 | 0.113974 | 0.0230991 |
| 99.0 | 0.105523 | 0.0132017 |
| 117.0 | 0.0686792 | 0.00879688 |
| 135.0 | 0.0628426 | 0.027827 |
| 153.0 | 0.0713034 | 0.0173926 |
| 171.0 | 0.0899853 | 0.0219092 |
