Measurement E216M988
| Experiment: | CLAS12 Run Group A | |
|---|---|---|
| Year: | 2018 |
|
| Spokesperson: | Krishna Chandra | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/d(−cos(θ(π−))) | |
| Q2: | 7.0 — 8.0 GeV2 | |
| W: | 1.95 — 2.0 GeV | |

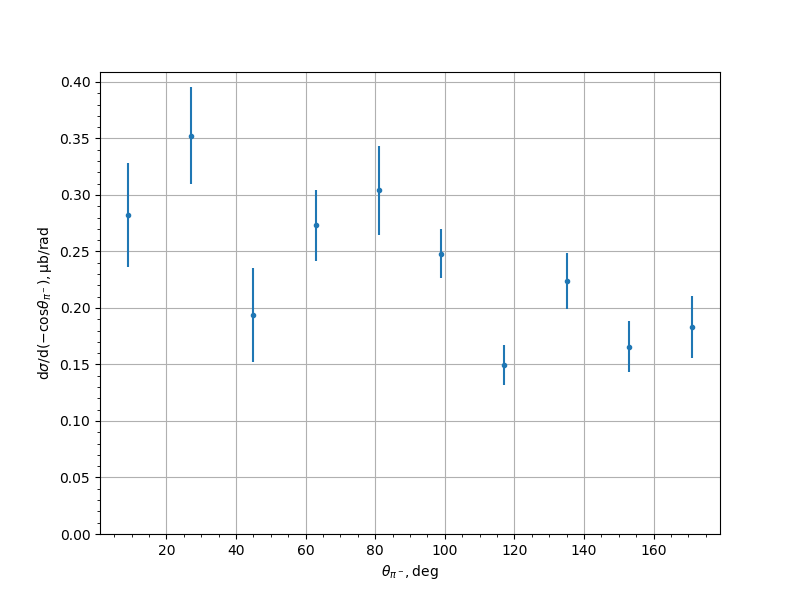

| θ(π−), [deg] | dσ/d(−cos(θ(π−))), [μb/rad] | uncertainty |
|---|---|---|
| 9.0 | 0.28249 | 0.0461513 |
| 27.0 | 0.352497 | 0.0431555 |
| 45.0 | 0.193799 | 0.0413511 |
| 63.0 | 0.273235 | 0.0313662 |
| 81.0 | 0.304102 | 0.0395953 |
| 99.0 | 0.248133 | 0.0217064 |
| 117.0 | 0.149417 | 0.01757 |
| 135.0 | 0.224049 | 0.024831 |
| 153.0 | 0.165576 | 0.0224912 |
| 171.0 | 0.183304 | 0.0275358 |
