Measurement E28M25
| Experiment: | g11 | |
|---|---|---|
| Year: | 2009 | |
| Spokesperson: | M. Battaglieri | |
| Reaction: | γp → π+π−p | |
| Polarization: | none | |
| Quantity: | Y30 | |
| W: | 2.55 — 2.62 GeV | |
| Eγ: | 3.0 — 3.2 GeV | |
| Publications: |
M. Battaglieri, R. De Vita, A. P. Szczepaniak, and CLAS Collaboration Photoproduction of π+π- meson pairs on the proton. //
PRD 80, 072005 (2009)
M. Battaglieri, R. De Vita, A. P. Szczepaniak, and CLAS Collaboration First measurement of direct f0(980) photoproduction on the proton //
PRL 102, 102001 (2009)
|
|

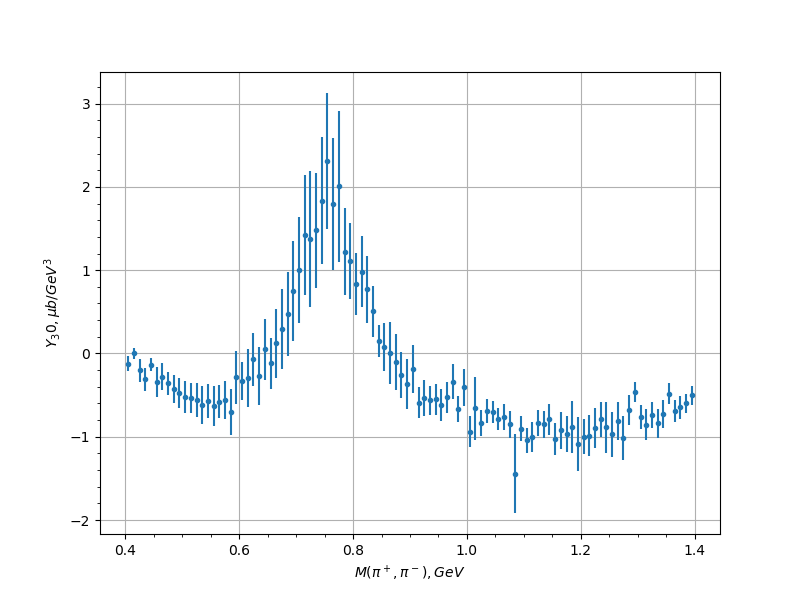

| -t, [GeV2] | M(π+,π−), [GeV] | Y30, [μb/GeV3] | uncertainty |
|---|---|---|---|
| 0.45 | 0.405 | -0.1209 | -0.09279 |
| 0.45 | 0.415 | 0.003747 | 0.06429 |
| 0.45 | 0.425 | -0.204 | -0.1382 |
| 0.45 | 0.435 | -0.3126 | -0.1378 |
| 0.45 | 0.445 | -0.1349 | -0.07827 |
| 0.45 | 0.455 | -0.343 | -0.176 |
| 0.45 | 0.465 | -0.278 | -0.1599 |
| 0.45 | 0.475 | -0.3551 | -0.1383 |
| 0.45 | 0.485 | -0.4289 | -0.1718 |
| 0.45 | 0.495 | -0.4789 | -0.1786 |
| 0.45 | 0.505 | -0.5254 | -0.1935 |
| 0.45 | 0.515 | -0.5359 | -0.1806 |
| 0.45 | 0.525 | -0.5531 | -0.2044 |
| 0.45 | 0.535 | -0.6186 | -0.2333 |
| 0.45 | 0.545 | -0.5735 | -0.2061 |
| 0.45 | 0.555 | -0.6312 | -0.2394 |
| 0.45 | 0.565 | -0.5774 | -0.1996 |
| 0.45 | 0.575 | -0.5558 | -0.229 |
| 0.45 | 0.585 | -0.6996 | -0.2773 |
| 0.45 | 0.595 | -0.2853 | -0.3166 |
| 0.45 | 0.605 | -0.3299 | -0.2333 |
| 0.45 | 0.615 | -0.2952 | -0.3505 |
| 0.45 | 0.625 | -0.07104 | -0.3206 |
| 0.45 | 0.635 | -0.2747 | -0.3475 |
| 0.45 | 0.645 | 0.05064 | 0.3676 |
| 0.45 | 0.655 | -0.117 | -0.3076 |
| 0.45 | 0.665 | 0.12 | 0.4196 |
| 0.45 | 0.675 | 0.2913 | 0.4784 |
| 0.45 | 0.685 | 0.4719 | 0.5083 |
| 0.45 | 0.695 | 0.7534 | 0.6013 |
| 0.45 | 0.705 | 1.007 | 0.6366 |
| 0.45 | 0.715 | 1.42 | 0.7198 |
| 0.45 | 0.725 | 1.376 | 0.8191 |
| 0.45 | 0.735 | 1.477 | 0.6903 |
| 0.45 | 0.745 | 1.835 | 0.7649 |
| 0.45 | 0.755 | 2.31 | 0.8178 |
| 0.45 | 0.765 | 1.791 | 0.7946 |
| 0.45 | 0.775 | 2.005 | 0.9112 |
| 0.45 | 0.785 | 1.223 | 0.5237 |
| 0.45 | 0.795 | 1.11 | 0.4582 |
| 0.45 | 0.805 | 0.8339 | 0.375 |
| 0.45 | 0.815 | 0.9797 | 0.4256 |
| 0.45 | 0.825 | 0.7709 | 0.4004 |
| 0.45 | 0.835 | 0.5065 | 0.3054 |
| 0.45 | 0.845 | 0.1473 | 0.1915 |
| 0.45 | 0.855 | 0.07703 | 0.2922 |
| 0.45 | 0.865 | 0.004432 | 0.3726 |
| 0.45 | 0.875 | -0.105 | -0.3337 |
| 0.45 | 0.885 | -0.2573 | -0.2729 |
| 0.45 | 0.895 | -0.364 | -0.3011 |
| 0.45 | 0.905 | -0.1894 | -0.2882 |
| 0.45 | 0.915 | -0.5894 | -0.1809 |
| 0.45 | 0.925 | -0.5337 | -0.2154 |
| 0.45 | 0.935 | -0.5641 | -0.1735 |
| 0.45 | 0.945 | -0.55 | -0.1874 |
| 0.45 | 0.955 | -0.6168 | -0.1899 |
| 0.45 | 0.965 | -0.5277 | -0.1837 |
| 0.45 | 0.975 | -0.3392 | -0.2123 |
| 0.45 | 0.985 | -0.6656 | -0.1538 |
| 0.45 | 0.995 | -0.4079 | -0.2263 |
| 0.45 | 1.005 | -0.9375 | -0.1864 |
| 0.45 | 1.015 | -0.6579 | -0.379 |
| 0.45 | 1.025 | -0.8378 | -0.1582 |
| 0.45 | 1.035 | -0.6947 | -0.1457 |
| 0.45 | 1.045 | -0.7018 | -0.1369 |
| 0.45 | 1.055 | -0.7877 | -0.1349 |
| 0.45 | 1.065 | -0.7597 | -0.1553 |
| 0.45 | 1.075 | -0.8527 | -0.1569 |
| 0.45 | 1.085 | -1.442 | -0.4738 |
| 0.45 | 1.095 | -0.9042 | -0.1516 |
| 0.45 | 1.105 | -1.041 | -0.1501 |
| 0.45 | 1.115 | -1.001 | -0.178 |
| 0.45 | 1.125 | -0.8307 | -0.1567 |
| 0.45 | 1.135 | -0.8499 | -0.1645 |
| 0.45 | 1.145 | -0.7914 | -0.1869 |
| 0.45 | 1.155 | -1.023 | -0.1925 |
| 0.45 | 1.165 | -0.9218 | -0.2227 |
| 0.45 | 1.175 | -0.9645 | -0.2147 |
| 0.45 | 1.185 | -0.8873 | -0.3112 |
| 0.45 | 1.195 | -1.09 | -0.3272 |
| 0.45 | 1.205 | -0.9983 | -0.2056 |
| 0.45 | 1.215 | -0.9899 | -0.2463 |
| 0.45 | 1.225 | -0.8954 | -0.2401 |
| 0.45 | 1.235 | -0.7895 | -0.2117 |
| 0.45 | 1.245 | -0.8884 | -0.3057 |
| 0.45 | 1.255 | -0.9729 | -0.2754 |
| 0.45 | 1.265 | -0.8086 | -0.2297 |
| 0.45 | 1.275 | -1.013 | -0.2666 |
| 0.45 | 1.285 | -0.6809 | -0.1776 |
| 0.45 | 1.295 | -0.4671 | -0.119 |
| 0.45 | 1.305 | -0.7603 | -0.1409 |
| 0.45 | 1.315 | -0.8555 | -0.1877 |
| 0.45 | 1.325 | -0.7355 | -0.1554 |
| 0.45 | 1.335 | -0.8398 | -0.1787 |
| 0.45 | 1.345 | -0.7296 | -0.1672 |
| 0.45 | 1.355 | -0.4829 | -0.1253 |
| 0.45 | 1.365 | -0.6933 | -0.1302 |
| 0.45 | 1.375 | -0.6449 | -0.1367 |
| 0.45 | 1.385 | -0.6001 | -0.1192 |
| 0.45 | 1.395 | -0.5043 | -0.1176 |
| 0.55 | 0.405 | -0.0777 | -0.05636 |
| 0.55 | 0.415 | -0.1276 | -0.07824 |
| 0.55 | 0.425 | -0.1694 | -0.07859 |
| 0.55 | 0.435 | -0.1653 | -0.08944 |
| 0.55 | 0.445 | 0.0044 | 0.05934 |
| 0.55 | 0.455 | -0.1371 | -0.09568 |
| 0.55 | 0.465 | -0.309 | -0.1604 |
| 0.55 | 0.475 | -0.3404 | -0.1898 |
| 0.55 | 0.485 | -0.3618 | -0.1777 |
| 0.55 | 0.495 | -0.3301 | -0.1629 |
| 0.55 | 0.505 | -0.3391 | -0.1771 |
| 0.55 | 0.515 | -0.4672 | -0.173 |
| 0.55 | 0.525 | -0.5218 | -0.215 |
| 0.55 | 0.535 | -0.486 | -0.1926 |
| 0.55 | 0.545 | -0.5348 | -0.2264 |
| 0.55 | 0.555 | -0.3991 | -0.1636 |
| 0.55 | 0.565 | -0.3556 | -0.1379 |
| 0.55 | 0.575 | -0.3495 | -0.1253 |
| 0.55 | 0.585 | -0.3585 | -0.1636 |
| 0.55 | 0.595 | -0.3723 | -0.1445 |
| 0.55 | 0.605 | -0.2737 | -0.1628 |
| 0.55 | 0.615 | -0.2621 | -0.1745 |
| 0.55 | 0.625 | -0.1258 | -0.1282 |
| 0.55 | 0.635 | -0.3188 | -0.2189 |
| 0.55 | 0.645 | 0.03687 | 0.2375 |
| 0.55 | 0.655 | 0.05904 | 0.3379 |
| 0.55 | 0.665 | -0.05177 | -0.225 |
| 0.55 | 0.675 | -0.1168 | -0.2329 |
| 0.55 | 0.685 | 0.2265 | 0.3278 |
| 0.55 | 0.695 | 0.277 | 0.2431 |
| 0.55 | 0.705 | 0.7643 | 0.4006 |
| 0.55 | 0.715 | 0.4447 | 0.3194 |
| 0.55 | 0.725 | 0.679 | 0.331 |
| 0.55 | 0.735 | 1.021 | 0.4604 |
| 0.55 | 0.745 | 0.9783 | 0.372 |
| 0.55 | 0.755 | 1.19 | 0.4315 |
| 0.55 | 0.765 | 1.273 | 0.4474 |
| 0.55 | 0.775 | 1.372 | 0.4454 |
| 0.55 | 0.785 | 1.076 | 0.3617 |
| 0.55 | 0.795 | 0.6902 | 0.3196 |
| 0.55 | 0.805 | 0.5993 | 0.2542 |
| 0.55 | 0.815 | 0.6674 | 0.2757 |
| 0.55 | 0.825 | 0.2028 | 0.2027 |
| 0.55 | 0.835 | 0.2124 | 0.1767 |
| 0.55 | 0.845 | 0.2098 | 0.1768 |
| 0.55 | 0.855 | 0.2749 | 0.2064 |
| 0.55 | 0.865 | -0.06948 | -0.1484 |
| 0.55 | 0.875 | -0.3185 | -0.1228 |
| 0.55 | 0.885 | -0.33 | -0.1338 |
| 0.55 | 0.895 | -0.08979 | -0.1582 |
| 0.55 | 0.905 | -0.2266 | -0.1905 |
| 0.55 | 0.915 | -0.1812 | -0.139 |
| 0.55 | 0.925 | -0.5123 | -0.1282 |
| 0.55 | 0.935 | -0.3241 | -0.1443 |
| 0.55 | 0.945 | -0.1599 | -0.1168 |
| 0.55 | 0.955 | -0.2343 | -0.1514 |
| 0.55 | 0.965 | -0.4908 | -0.1339 |
| 0.55 | 0.975 | -0.5164 | -0.2369 |
| 0.55 | 0.985 | -0.3401 | -0.1348 |
| 0.55 | 0.995 | -0.377 | -0.1027 |
| 0.55 | 1.005 | -0.4528 | -0.1095 |
| 0.55 | 1.015 | -0.4398 | -0.1284 |
| 0.55 | 1.025 | -0.3206 | -0.09504 |
| 0.55 | 1.035 | -0.5339 | -0.1498 |
| 0.55 | 1.045 | -0.4877 | -0.1187 |
| 0.55 | 1.055 | -0.6585 | -0.1557 |
| 0.55 | 1.065 | -0.6748 | -0.2054 |
| 0.55 | 1.075 | -0.7609 | -0.2008 |
| 0.55 | 1.085 | -0.5779 | -0.1149 |
| 0.55 | 1.095 | -0.7556 | -0.1199 |
| 0.55 | 1.105 | -0.8354 | -0.1296 |
| 0.55 | 1.115 | -0.6121 | -0.1686 |
| 0.55 | 1.125 | -0.8125 | -0.2712 |
| 0.55 | 1.135 | -0.5295 | -0.1535 |
| 0.55 | 1.145 | -0.8436 | -0.2456 |
| 0.55 | 1.155 | -0.6802 | -0.2069 |
| 0.55 | 1.165 | -0.8916 | -0.2389 |
| 0.55 | 1.175 | -0.6444 | -0.2048 |
| 0.55 | 1.185 | -0.7201 | -0.2698 |
| 0.55 | 1.195 | -0.8498 | -0.2546 |
| 0.55 | 1.205 | -0.7557 | -0.2397 |
| 0.55 | 1.215 | -0.7106 | -0.2111 |
| 0.55 | 1.225 | -0.5786 | -0.1829 |
| 0.55 | 1.235 | -0.6939 | -0.2189 |
| 0.55 | 1.245 | -0.6383 | -0.1815 |
| 0.55 | 1.255 | -0.6711 | -0.1521 |
| 0.55 | 1.265 | -0.7686 | -0.1994 |
| 0.55 | 1.275 | -0.5318 | -0.1403 |
| 0.55 | 1.285 | -0.5011 | -0.147 |
| 0.55 | 1.295 | -0.6119 | -0.1545 |
| 0.55 | 1.305 | -0.6796 | -0.1479 |
| 0.55 | 1.315 | -0.6625 | -0.1691 |
| 0.55 | 1.325 | -0.6096 | -0.1371 |
| 0.55 | 1.335 | -0.6567 | -0.1349 |
| 0.55 | 1.345 | -0.781 | -0.2273 |
| 0.55 | 1.355 | -0.5524 | -0.1527 |
| 0.55 | 1.365 | -0.385 | -0.1035 |
| 0.55 | 1.375 | -0.3166 | -0.0992 |
| 0.55 | 1.385 | -0.4496 | -0.1341 |
| 0.55 | 1.395 | -0.3958 | -0.1075 |
| 0.65 | 0.405 | -0.1121 | -0.04344 |
| 0.65 | 0.415 | -0.1802 | -0.07669 |
| 0.65 | 0.425 | -0.2635 | -0.09033 |
| 0.65 | 0.435 | -0.1405 | -0.08043 |
| 0.65 | 0.445 | -0.1893 | -0.08858 |
| 0.65 | 0.455 | -0.2933 | -0.1684 |
| 0.65 | 0.465 | -0.1926 | -0.1485 |
| 0.65 | 0.475 | -0.2702 | -0.1467 |
| 0.65 | 0.485 | -0.3173 | -0.1468 |
| 0.65 | 0.495 | -0.2784 | -0.1751 |
| 0.65 | 0.505 | -0.2835 | -0.1751 |
| 0.65 | 0.515 | -0.1787 | -0.1107 |
| 0.65 | 0.525 | -0.2951 | -0.1689 |
| 0.65 | 0.535 | -0.3494 | -0.1467 |
| 0.65 | 0.545 | -0.2132 | -0.1182 |
| 0.65 | 0.555 | -0.2871 | -0.1508 |
| 0.65 | 0.565 | -0.2157 | -0.1074 |
| 0.65 | 0.575 | -0.2878 | -0.1408 |
| 0.65 | 0.585 | -0.264 | -0.1418 |
| 0.65 | 0.595 | -0.06815 | -0.08039 |
| 0.65 | 0.605 | -0.1884 | -0.09577 |
| 0.65 | 0.615 | -0.2976 | -0.1329 |
| 0.65 | 0.625 | -0.07831 | -0.1087 |
| 0.65 | 0.635 | -0.2151 | -0.112 |
| 0.65 | 0.645 | -0.09557 | -0.1228 |
| 0.65 | 0.655 | -0.0428 | -0.1057 |
| 0.65 | 0.665 | 0.1092 | 0.1678 |
| 0.65 | 0.675 | 0.04193 | 0.1412 |
| 0.65 | 0.685 | 0.06722 | 0.1289 |
| 0.65 | 0.695 | 0.04172 | 0.1734 |
| 0.65 | 0.705 | 0.3087 | 0.2796 |
| 0.65 | 0.715 | -0.08072 | -0.1178 |
| 0.65 | 0.725 | 0.4903 | 0.3202 |
| 0.65 | 0.735 | 0.2435 | 0.1858 |
| 0.65 | 0.745 | 0.4617 | 0.2288 |
| 0.65 | 0.755 | 0.7047 | 0.3326 |
| 0.65 | 0.765 | 0.6494 | 0.2713 |
| 0.65 | 0.775 | 0.6378 | 0.3421 |
| 0.65 | 0.785 | 0.5848 | 0.2042 |
| 0.65 | 0.795 | 0.595 | 0.2352 |
| 0.65 | 0.805 | 0.2127 | 0.184 |
| 0.65 | 0.815 | 0.3735 | 0.285 |
| 0.65 | 0.825 | 0.4866 | 0.2893 |
| 0.65 | 0.835 | 0.2441 | 0.1945 |
| 0.65 | 0.845 | 0.23 | 0.3142 |
| 0.65 | 0.855 | -0.02451 | -0.1222 |
| 0.65 | 0.865 | 0.1054 | 0.2496 |
| 0.65 | 0.875 | 0.02858 | 0.1416 |
| 0.65 | 0.885 | -0.06089 | -0.1316 |
| 0.65 | 0.895 | -0.07144 | -0.1318 |
| 0.65 | 0.905 | -0.0806 | -0.1324 |
| 0.65 | 0.915 | -0.1573 | -0.1071 |
| 0.65 | 0.925 | -0.3505 | -0.0975 |
| 0.65 | 0.935 | -0.1816 | -0.1022 |
| 0.65 | 0.945 | -0.2088 | -0.09619 |
| 0.65 | 0.955 | -0.2382 | -0.08965 |
| 0.65 | 0.965 | -0.2728 | -0.08343 |
| 0.65 | 0.975 | -0.0758 | -0.09564 |
| 0.65 | 0.985 | -0.2397 | -0.07936 |
| 0.65 | 0.995 | -0.4661 | -0.1166 |
| 0.65 | 1.005 | -0.5273 | -0.1015 |
| 0.65 | 1.015 | -0.4771 | -0.08595 |
| 0.65 | 1.025 | -0.4344 | -0.08749 |
| 0.65 | 1.035 | -0.4622 | -0.1084 |
| 0.65 | 1.045 | -0.4922 | -0.1039 |
| 0.65 | 1.055 | -0.4584 | -0.1059 |
| 0.65 | 1.065 | -0.6512 | -0.1421 |
| 0.65 | 1.075 | -0.6895 | -0.1324 |
| 0.65 | 1.085 | -0.6246 | -0.1452 |
| 0.65 | 1.095 | -0.5917 | -0.1388 |
| 0.65 | 1.105 | -0.5335 | -0.1197 |
| 0.65 | 1.115 | -0.6453 | -0.1755 |
| 0.65 | 1.125 | -0.475 | -0.117 |
| 0.65 | 1.135 | -0.5856 | -0.1479 |
| 0.65 | 1.145 | -0.6247 | -0.1646 |
| 0.65 | 1.155 | -0.6034 | -0.1361 |
| 0.65 | 1.165 | -0.6803 | -0.2101 |
| 0.65 | 1.175 | -0.472 | -0.1208 |
| 0.65 | 1.185 | -0.6938 | -0.2037 |
| 0.65 | 1.195 | -0.4418 | -0.1399 |
| 0.65 | 1.205 | -0.6305 | -0.1622 |
| 0.65 | 1.215 | -0.7445 | -0.1922 |
| 0.65 | 1.225 | -0.4312 | -0.1151 |
| 0.65 | 1.235 | -0.4151 | -0.1296 |
| 0.65 | 1.245 | -0.51 | -0.1339 |
| 0.65 | 1.255 | -0.4502 | -0.1372 |
| 0.65 | 1.265 | -0.4646 | -0.1067 |
| 0.65 | 1.275 | -0.5079 | -0.1155 |
| 0.65 | 1.285 | -0.447 | -0.1223 |
| 0.65 | 1.295 | -0.6682 | -0.146 |
| 0.65 | 1.305 | -0.5073 | -0.1189 |
| 0.65 | 1.315 | -0.6608 | -0.1564 |
| 0.65 | 1.325 | -0.4381 | -0.09882 |
| 0.65 | 1.335 | -0.4667 | -0.1417 |
| 0.65 | 1.345 | -0.4556 | -0.1075 |
| 0.65 | 1.355 | -0.4427 | -0.1364 |
| 0.65 | 1.365 | -0.5151 | -0.1361 |
| 0.65 | 1.375 | -0.5227 | -0.1587 |
| 0.65 | 1.385 | -0.4223 | -0.1057 |
| 0.65 | 1.395 | -0.482 | -0.1331 |
| 0.75 | 0.405 | -0.02074 | -0.02698 |
| 0.75 | 0.415 | -0.1737 | -0.06092 |
| 0.75 | 0.425 | -0.1438 | -0.06663 |
| 0.75 | 0.435 | -0.1507 | -0.05609 |
| 0.75 | 0.445 | -0.1454 | -0.06481 |
| 0.75 | 0.455 | -0.1935 | -0.1045 |
| 0.75 | 0.465 | -0.2567 | -0.1323 |
| 0.75 | 0.475 | -0.1851 | -0.1318 |
| 0.75 | 0.485 | -0.2288 | -0.1322 |
| 0.75 | 0.495 | -0.2373 | -0.1558 |
| 0.75 | 0.505 | -0.2313 | -0.1632 |
| 0.75 | 0.515 | -0.2129 | -0.1318 |
| 0.75 | 0.525 | -0.2453 | -0.1082 |
| 0.75 | 0.535 | -0.1775 | -0.1005 |
| 0.75 | 0.545 | -0.1446 | -0.09672 |
| 0.75 | 0.555 | -0.198 | -0.1299 |
| 0.75 | 0.565 | -0.1879 | -0.1224 |
| 0.75 | 0.575 | -0.2135 | -0.1182 |
| 0.75 | 0.585 | -0.113 | -0.06797 |
| 0.75 | 0.595 | -0.05658 | -0.08053 |
| 0.75 | 0.605 | -0.2056 | -0.1151 |
| 0.75 | 0.615 | -0.1734 | -0.0993 |
| 0.75 | 0.625 | -0.1745 | -0.1099 |
| 0.75 | 0.635 | -0.1676 | -0.1108 |
| 0.75 | 0.645 | -0.07645 | -0.1343 |
| 0.75 | 0.655 | -0.2086 | -0.1426 |
| 0.75 | 0.665 | -0.08348 | -0.1753 |
| 0.75 | 0.675 | -0.2227 | -0.1676 |
| 0.75 | 0.685 | -0.1733 | -0.1523 |
| 0.75 | 0.695 | -0.07331 | -0.2649 |
| 0.75 | 0.705 | -0.13 | -0.1796 |
| 0.75 | 0.715 | -0.1151 | -0.15 |
| 0.75 | 0.725 | 0.1065 | 0.1156 |
| 0.75 | 0.735 | 0.1681 | 0.1356 |
| 0.75 | 0.745 | 0.3673 | 0.1959 |
| 0.75 | 0.755 | 0.4328 | 0.2175 |
| 0.75 | 0.765 | 0.3194 | 0.1765 |
| 0.75 | 0.775 | 0.3969 | 0.1454 |
| 0.75 | 0.785 | 0.4274 | 0.2094 |
| 0.75 | 0.795 | 0.4325 | 0.2647 |
| 0.75 | 0.805 | 0.3049 | 0.2082 |
| 0.75 | 0.815 | 0.07337 | 0.1238 |
| 0.75 | 0.825 | -0.1195 | -0.1581 |
| 0.75 | 0.835 | 0.05856 | 0.1261 |
| 0.75 | 0.845 | -0.08645 | -0.1261 |
| 0.75 | 0.855 | -0.1126 | -0.09113 |
| 0.75 | 0.865 | -0.1479 | -0.09545 |
| 0.75 | 0.875 | -0.1239 | -0.08014 |
| 0.75 | 0.885 | -0.2175 | -0.08619 |
| 0.75 | 0.895 | -0.04572 | -0.07783 |
| 0.75 | 0.905 | -0.3036 | -0.08521 |
| 0.75 | 0.915 | -0.08704 | -0.08731 |
| 0.75 | 0.925 | -0.3325 | -0.1045 |
| 0.75 | 0.935 | -0.2053 | -0.07997 |
| 0.75 | 0.945 | -0.2745 | -0.0853 |
| 0.75 | 0.955 | -0.2724 | -0.07657 |
| 0.75 | 0.965 | -0.3148 | -0.07639 |
| 0.75 | 0.975 | -0.3606 | -0.09295 |
| 0.75 | 0.985 | -0.3675 | -0.09933 |
| 0.75 | 0.995 | -0.4795 | -0.09933 |
| 0.75 | 1.005 | -0.3459 | -0.0824 |
| 0.75 | 1.015 | -0.3486 | -0.09029 |
| 0.75 | 1.025 | -0.3527 | -0.08128 |
| 0.75 | 1.035 | -0.379 | -0.08282 |
| 0.75 | 1.045 | -0.4811 | -0.1138 |
| 0.75 | 1.055 | -0.5735 | -0.1186 |
| 0.75 | 1.065 | -0.3787 | -0.09214 |
| 0.75 | 1.075 | -0.4819 | -0.1252 |
| 0.75 | 1.085 | -0.4836 | -0.1221 |
| 0.75 | 1.095 | -0.5057 | -0.1207 |
| 0.75 | 1.105 | -0.3923 | -0.09388 |
| 0.75 | 1.115 | -0.4011 | -0.1067 |
| 0.75 | 1.125 | -0.4171 | -0.109 |
| 0.75 | 1.135 | -0.5885 | -0.1531 |
| 0.75 | 1.145 | -0.3809 | -0.09338 |
| 0.75 | 1.155 | -0.3757 | -0.1083 |
| 0.75 | 1.165 | -0.2723 | -0.09503 |
| 0.75 | 1.175 | -0.5087 | -0.1191 |
| 0.75 | 1.185 | -0.4978 | -0.1162 |
| 0.75 | 1.195 | -0.6383 | -0.1681 |
| 0.75 | 1.205 | -0.5223 | -0.1375 |
| 0.75 | 1.215 | -0.6183 | -0.1618 |
| 0.75 | 1.225 | -0.5618 | -0.1605 |
| 0.75 | 1.235 | -0.6214 | -0.1864 |
| 0.75 | 1.245 | -0.615 | -0.155 |
| 0.75 | 1.255 | -0.551 | -0.1437 |
| 0.75 | 1.265 | -0.7359 | -0.2026 |
| 0.75 | 1.275 | -0.5774 | -0.1536 |
| 0.75 | 1.285 | -0.5204 | -0.1353 |
| 0.75 | 1.295 | -0.4152 | -0.1131 |
| 0.75 | 1.305 | -0.4677 | -0.1349 |
| 0.75 | 1.315 | -0.6001 | -0.1601 |
| 0.75 | 1.325 | -0.4522 | -0.121 |
| 0.75 | 1.335 | -0.5213 | -0.1234 |
| 0.75 | 1.345 | -0.5071 | -0.1278 |
| 0.75 | 1.355 | -0.5103 | -0.1357 |
| 0.75 | 1.365 | -0.5162 | -0.1472 |
| 0.75 | 1.375 | -0.4418 | -0.1152 |
| 0.75 | 1.385 | -0.4038 | -0.1268 |
| 0.75 | 1.395 | -0.5014 | -0.1179 |
| 0.85 | 0.405 | -0.112 | -0.05265 |
| 0.85 | 0.415 | -0.07222 | -0.03558 |
| 0.85 | 0.425 | -0.0558 | -0.03442 |
| 0.85 | 0.435 | -0.0818 | -0.03733 |
| 0.85 | 0.445 | -0.1458 | -0.07609 |
| 0.85 | 0.455 | -0.1313 | -0.06753 |
| 0.85 | 0.465 | -0.1902 | -0.09663 |
| 0.85 | 0.475 | -0.2022 | -0.1207 |
| 0.85 | 0.485 | -0.2863 | -0.1656 |
| 0.85 | 0.495 | -0.1381 | -0.06252 |
| 0.85 | 0.505 | -0.1756 | -0.1097 |
| 0.85 | 0.515 | -0.1479 | -0.09815 |
| 0.85 | 0.525 | -0.1662 | -0.1208 |
| 0.85 | 0.535 | -0.1412 | -0.07421 |
| 0.85 | 0.545 | -0.2172 | -0.1393 |
| 0.85 | 0.555 | -0.1481 | -0.1107 |
| 0.85 | 0.565 | -0.2014 | -0.1005 |
| 0.85 | 0.575 | -0.1079 | -0.06961 |
| 0.85 | 0.585 | -0.1655 | -0.07795 |
| 0.85 | 0.595 | -0.1491 | -0.07892 |
| 0.85 | 0.605 | -0.1509 | -0.08019 |
| 0.85 | 0.615 | -0.1883 | -0.09223 |
| 0.85 | 0.625 | -0.1281 | -0.08466 |
| 0.85 | 0.635 | -0.1427 | -0.09191 |
| 0.85 | 0.645 | -0.2184 | -0.09924 |
| 0.85 | 0.655 | -0.09284 | -0.1212 |
| 0.85 | 0.665 | -0.1172 | -0.09186 |
| 0.85 | 0.675 | -0.06307 | -0.09348 |
| 0.85 | 0.685 | -0.2206 | -0.142 |
| 0.85 | 0.695 | -0.1018 | -0.1158 |
| 0.85 | 0.705 | -0.1397 | -0.1211 |
| 0.85 | 0.715 | 0.09119 | 0.1344 |
| 0.85 | 0.725 | 0.08108 | 0.09712 |
| 0.85 | 0.735 | 0.08452 | 0.1109 |
| 0.85 | 0.745 | 0.2514 | 0.1367 |
| 0.85 | 0.755 | 0.2314 | 0.1204 |
| 0.85 | 0.765 | 0.4037 | 0.1752 |
| 0.85 | 0.775 | 0.1949 | 0.1656 |
| 0.85 | 0.785 | 0.3805 | 0.1778 |
| 0.85 | 0.795 | 0.1314 | 0.1939 |
| 0.85 | 0.805 | 0.03535 | 0.1298 |
| 0.85 | 0.815 | -0.09725 | -0.1746 |
| 0.85 | 0.825 | -0.04876 | -0.129 |
| 0.85 | 0.835 | -0.2311 | -0.1396 |
| 0.85 | 0.845 | -0.2918 | -0.1312 |
| 0.85 | 0.855 | -0.2692 | -0.114 |
| 0.85 | 0.865 | -0.1119 | -0.09222 |
| 0.85 | 0.875 | -0.2049 | -0.1319 |
| 0.85 | 0.885 | -0.2835 | -0.1238 |
| 0.85 | 0.895 | -0.3725 | -0.1379 |
| 0.85 | 0.905 | -0.2968 | -0.08976 |
| 0.85 | 0.915 | -0.2151 | -0.1123 |
| 0.85 | 0.925 | -0.1562 | -0.0844 |
| 0.85 | 0.935 | -0.1905 | -0.08382 |
| 0.85 | 0.945 | -0.2758 | -0.09948 |
| 0.85 | 0.955 | -0.2887 | -0.08672 |
| 0.85 | 0.965 | -0.3292 | -0.08641 |
| 0.85 | 0.975 | -0.4379 | -0.1064 |
| 0.85 | 0.985 | -0.4447 | -0.1269 |
| 0.85 | 0.995 | -0.4192 | -0.1297 |
| 0.85 | 1.005 | -0.2902 | -0.08624 |
| 0.85 | 1.015 | -0.3711 | -0.09769 |
| 0.85 | 1.025 | -0.3814 | -0.1017 |
| 0.85 | 1.035 | -0.3737 | -0.1044 |
| 0.85 | 1.045 | -0.3267 | -0.08828 |
| 0.85 | 1.055 | -0.3301 | -0.08421 |
| 0.85 | 1.065 | -0.4949 | -0.1021 |
| 0.85 | 1.075 | -0.3672 | -0.08686 |
| 0.85 | 1.085 | -0.247 | -0.07735 |
| 0.85 | 1.095 | -0.412 | -0.1091 |
| 0.85 | 1.105 | -0.4698 | -0.1027 |
| 0.85 | 1.115 | -0.5172 | -0.1163 |
| 0.85 | 1.125 | -0.5583 | -0.1317 |
| 0.85 | 1.135 | -0.3553 | -0.09865 |
| 0.85 | 1.145 | -0.4011 | -0.1077 |
| 0.85 | 1.155 | -0.3798 | -0.09686 |
| 0.85 | 1.165 | -0.365 | -0.09612 |
| 0.85 | 1.175 | -0.5171 | -0.1143 |
| 0.85 | 1.185 | -0.4892 | -0.1137 |
| 0.85 | 1.195 | -0.5462 | -0.1299 |
| 0.85 | 1.205 | -0.6197 | -0.149 |
| 0.85 | 1.215 | -0.6467 | -0.1492 |
| 0.85 | 1.225 | -0.5254 | -0.1424 |
| 0.85 | 1.235 | -0.6926 | -0.1678 |
| 0.85 | 1.245 | -0.6763 | -0.157 |
| 0.85 | 1.255 | -0.6365 | -0.1431 |
| 0.85 | 1.265 | -0.4788 | -0.123 |
| 0.85 | 1.275 | -0.6201 | -0.1559 |
| 0.85 | 1.285 | -0.5328 | -0.1433 |
| 0.85 | 1.295 | -0.6734 | -0.1535 |
| 0.85 | 1.305 | -0.5737 | -0.1545 |
| 0.85 | 1.315 | -0.6277 | -0.1521 |
| 0.85 | 1.325 | -0.6475 | -0.156 |
| 0.85 | 1.335 | -0.5802 | -0.1453 |
| 0.85 | 1.345 | -0.4324 | -0.122 |
| 0.85 | 1.355 | -0.534 | -0.1404 |
| 0.85 | 1.365 | -0.4859 | -0.1322 |
| 0.85 | 1.375 | -0.5513 | -0.1205 |
| 0.85 | 1.385 | -0.4754 | -0.1258 |
| 0.85 | 1.395 | -0.3971 | -0.1075 |
| 0.95 | 0.405 | -0.08073 | -0.04288 |
| 0.95 | 0.415 | -0.1049 | -0.04469 |
| 0.95 | 0.425 | -0.1147 | -0.04308 |
| 0.95 | 0.435 | -0.0718 | -0.0397 |
| 0.95 | 0.445 | -0.1683 | -0.05892 |
| 0.95 | 0.455 | -0.1909 | -0.08072 |
| 0.95 | 0.465 | -0.2199 | -0.1046 |
| 0.95 | 0.475 | -0.196 | -0.0899 |
| 0.95 | 0.485 | -0.2156 | -0.1097 |
| 0.95 | 0.495 | -0.1485 | -0.08257 |
| 0.95 | 0.505 | -0.1738 | -0.08186 |
| 0.95 | 0.515 | -0.2121 | -0.1002 |
| 0.95 | 0.525 | -0.1503 | -0.09497 |
| 0.95 | 0.535 | -0.121 | -0.08497 |
| 0.95 | 0.545 | -0.08123 | -0.06336 |
| 0.95 | 0.555 | -0.141 | -0.07066 |
| 0.95 | 0.565 | -0.04056 | -0.05906 |
| 0.95 | 0.575 | -0.06944 | -0.062 |
| 0.95 | 0.585 | -0.08617 | -0.06336 |
| 0.95 | 0.595 | -0.152 | -0.07584 |
| 0.95 | 0.605 | -0.1555 | -0.09362 |
| 0.95 | 0.615 | -0.1277 | -0.06435 |
| 0.95 | 0.625 | -0.03766 | -0.0727 |
| 0.95 | 0.635 | -0.09989 | -0.06488 |
| 0.95 | 0.645 | -0.1191 | -0.06603 |
| 0.95 | 0.655 | -0.1494 | -0.09822 |
| 0.95 | 0.665 | -0.04491 | -0.07109 |
| 0.95 | 0.675 | -0.08384 | -0.08904 |
| 0.95 | 0.685 | 0.006045 | 0.09184 |
| 0.95 | 0.695 | -0.03567 | -0.08421 |
| 0.95 | 0.705 | -0.1551 | -0.1387 |
| 0.95 | 0.715 | -0.05618 | -0.1031 |
| 0.95 | 0.725 | -0.1525 | -0.1892 |
| 0.95 | 0.735 | -0.02755 | -0.1301 |
| 0.95 | 0.745 | 0.1008 | 0.09276 |
| 0.95 | 0.755 | 0.09848 | 0.1125 |
| 0.95 | 0.765 | -0.05855 | -0.1592 |
| 0.95 | 0.775 | 0.1268 | 0.1038 |
| 0.95 | 0.785 | -0.1589 | -0.1975 |
| 0.95 | 0.795 | -0.2154 | -0.2009 |
| 0.95 | 0.805 | -0.1111 | -0.1501 |
| 0.95 | 0.815 | -0.2933 | -0.2312 |
| 0.95 | 0.825 | -0.3109 | -0.191 |
| 0.95 | 0.835 | -0.2876 | -0.1887 |
| 0.95 | 0.845 | -0.3164 | -0.1992 |
| 0.95 | 0.855 | -0.2746 | -0.1881 |
| 0.95 | 0.865 | -0.2942 | -0.1647 |
| 0.95 | 0.875 | -0.1956 | -0.1171 |
| 0.95 | 0.885 | -0.3998 | -0.1722 |
| 0.95 | 0.895 | -0.2488 | -0.1208 |
| 0.95 | 0.905 | -0.2859 | -0.1292 |
| 0.95 | 0.915 | -0.2596 | -0.1117 |
| 0.95 | 0.925 | -0.2759 | -0.1057 |
| 0.95 | 0.935 | -0.237 | -0.08593 |
| 0.95 | 0.945 | -0.3233 | -0.1248 |
| 0.95 | 0.955 | -0.1675 | -0.07541 |
| 0.95 | 0.965 | -0.3131 | -0.1074 |
| 0.95 | 0.975 | -0.2692 | -0.08498 |
| 0.95 | 0.985 | -0.2998 | -0.1061 |
| 0.95 | 0.995 | -0.4173 | -0.08282 |
| 0.95 | 1.005 | -0.2535 | -0.0902 |
| 0.95 | 1.015 | -0.3753 | -0.119 |
| 0.95 | 1.025 | -0.3144 | -0.07917 |
| 0.95 | 1.035 | -0.2981 | -0.101 |
| 0.95 | 1.045 | -0.3819 | -0.1201 |
| 0.95 | 1.055 | -0.409 | -0.08481 |
| 0.95 | 1.065 | -0.3613 | -0.09411 |
| 0.95 | 1.075 | -0.4772 | -0.121 |
| 0.95 | 1.085 | -0.4213 | -0.1166 |
| 0.95 | 1.095 | -0.3794 | -0.1062 |
| 0.95 | 1.105 | -0.3277 | -0.1368 |
| 0.95 | 1.115 | -0.5352 | -0.09678 |
| 0.95 | 1.125 | -0.3734 | -0.103 |
| 0.95 | 1.135 | -0.6178 | -0.1098 |
| 0.95 | 1.145 | -0.4103 | -0.1144 |
| 0.95 | 1.155 | -0.5074 | -0.1357 |
| 0.95 | 1.165 | -0.604 | -0.1337 |
| 0.95 | 1.175 | -0.4833 | -0.1305 |
| 0.95 | 1.185 | -0.3926 | -0.127 |
| 0.95 | 1.195 | -0.5264 | -0.1819 |
| 0.95 | 1.205 | -0.5113 | -0.1342 |
| 0.95 | 1.215 | -0.3842 | -0.1091 |
| 0.95 | 1.225 | -0.5786 | -0.1363 |
| 0.95 | 1.235 | -0.5435 | -0.1319 |
| 0.95 | 1.245 | -0.5327 | -0.1356 |
| 0.95 | 1.255 | -0.6168 | -0.1445 |
| 0.95 | 1.265 | -0.3595 | -0.09718 |
| 0.95 | 1.275 | -0.5832 | -0.1478 |
| 0.95 | 1.285 | -0.4847 | -0.1159 |
| 0.95 | 1.295 | -0.6445 | -0.1539 |
| 0.95 | 1.305 | -0.6844 | -0.154 |
| 0.95 | 1.315 | -0.5601 | -0.1295 |
| 0.95 | 1.325 | -0.6499 | -0.1569 |
| 0.95 | 1.335 | -0.5049 | -0.1241 |
| 0.95 | 1.345 | -0.5155 | -0.1147 |
| 0.95 | 1.355 | -0.5914 | -0.1267 |
| 0.95 | 1.365 | -0.4193 | -0.1434 |
| 0.95 | 1.375 | -0.377 | -0.09365 |
| 0.95 | 1.385 | -0.3958 | -0.09191 |
| 0.95 | 1.395 | -0.456 | -0.1012 |
Experiment comment:
