Measurement E2M41

Experiment:	CAA Run E1C
Year:	2003	Experiment comment: The date were obtained from a comined analysis of five different beam energy settings: 1.5, 2.5, 4.0 and 4.4 GeV. The final structure functions are corrected for bin size effect and therefore correspond to an infinitely narrow bins.
Spokespersons:	M. Osipenko, G. Ricco
Reaction:	ep → inclusive
Polarization:	none
Quantity:	F₂
Q²:	2.225 GeV²
W:	1.0781 — 2.1778 GeV
x:	0.3655 — 0.8875
Publications:	M. Osipenko, G. Ricco, M. Taiuti, M.Ripani, S. Simula, and CLAS Collaboration Kinematically complete measurement of proton structure function F2 in the resonance region and evaluation of its moments // Phys. Rev. D67, 092001 (2003) M. Osipenko and CLAS Collaboration // CLAS-NOTE-2003-001

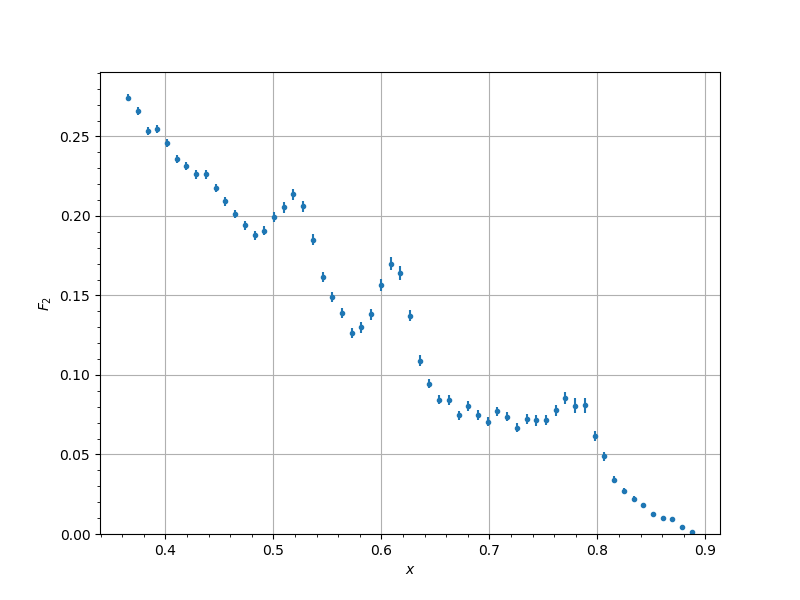

Measurement data
x	F₂	uncertainty
0.3655	0.2744	0.002378
0.3745	0.266	0.002413
0.3835	0.2533	0.002389
0.3925	0.2547	0.002448
0.4015	0.2461	0.002472
0.4105	0.2359	0.002504
0.4195	0.2314	0.002515
0.4285	0.2261	0.002583
0.4375	0.2262	0.002694
0.4465	0.2176	0.002754
0.4555	0.2092	0.002767
0.4645	0.2013	0.002749
0.4735	0.1941	0.002762
0.4825	0.1878	0.002739
0.4915	0.1907	0.002838
0.5005	0.1994	0.003052
0.5095	0.2054	0.003291
0.5185	0.2136	0.00352
0.5275	0.2061	0.003541
0.5365	0.185	0.003383
0.5455	0.1617	0.003151
0.5545	0.149	0.003288
0.5635	0.139	0.003213
0.5725	0.1263	0.003155
0.5815	0.1299	0.003294
0.5905	0.1381	0.003517
0.5995	0.1568	0.003761
0.6085	0.1699	0.004156
0.6175	0.1642	0.004231
0.6265	0.1374	0.003642
0.6355	0.1091	0.003339
0.6445	0.09453	0.003017
0.6535	0.08452	0.002939
0.6625	0.0843	0.003025
0.6715	0.07471	0.00288
0.6805	0.08077	0.003157
0.6895	0.0749	0.003039
0.6985	0.07047	0.002852
0.7075	0.07707	0.003115
0.7165	0.07388	0.003075
0.7255	0.06678	0.002903
0.7345	0.07233	0.00327
0.7435	0.0714	0.003337
0.7525	0.07184	0.00327
0.7615	0.07781	0.003333
0.7705	0.08569	0.003651
0.7795	0.0808	0.004784
0.7885	0.08087	0.004955
0.7975	0.06154	0.002976
0.8065	0.04877	0.00257
0.8155	0.0342	0.002025
0.8245	0.02724	0.001689
0.8335	0.02217	0.001571
0.8425	0.01824	0.001371
0.8515	0.01284	0.001114
0.8605	0.009892	0.001039
0.8695	0.00926	0.0008117
0.8785	0.004108	0.0005103
0.8875	0.001201	0.0001558
