Measurement E37M37
| Experiment: | E99-107 | |
|---|---|---|
| Year: | 2006 |
|
| Spokespersons: | P. Stoler, V.D.Burkert, R. Minehart, M. Taiuti | |
| Reaction: | ep → π0p | |
| Polarization: | none | |
| Quantity: | dσ/dΩ | |
| Q2: | 4.2 GeV2 | |
| W: | 1.23 GeV | |
| Ebeam: | 5.75 GeV | |
| Publication: |
M. Ungaro, P. Stoler, and CLAS Collabboration Measurement of the N → Δ+(1232) Transition at High Momentum Transfer by π0 Electroproduction //
PRL 97, 112003 (2006)
|
|

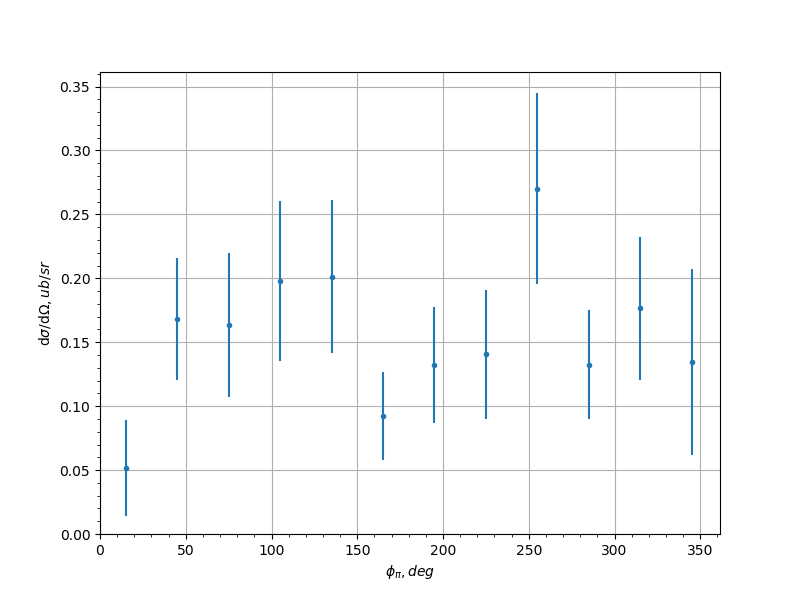

| cos(θπ) | φπ, [deg] | dσ/dΩ, [ub/sr] | uncertainty | syst. uncert. |
|---|---|---|---|---|
| -0.9 | 15.0 | 0.0516 | 0.0378 | 0.0153 |
| -0.9 | 45.0 | 0.1679 | 0.0476 | 0.0204 |
| -0.9 | 75.0 | 0.1637 | 0.0563 | 0.0199 |
| -0.9 | 105.0 | 0.1978 | 0.0627 | 0.0198 |
| -0.9 | 135.0 | 0.2014 | 0.0601 | 0.0177 |
| -0.9 | 165.0 | 0.0921 | 0.0346 | 0.0192 |
| -0.9 | 195.0 | 0.1319 | 0.0454 | 0.0194 |
| -0.9 | 225.0 | 0.1404 | 0.0505 | 0.0196 |
| -0.9 | 255.0 | 0.2702 | 0.0746 | 0.017 |
| -0.9 | 285.0 | 0.1325 | 0.0428 | 0.0182 |
| -0.9 | 315.0 | 0.1765 | 0.0558 | 0.0132 |
| -0.9 | 345.0 | 0.1345 | 0.0725 | 0.017 |
| -0.7 | 15.0 | 0.3653 | 0.112 | 0.0175 |
| -0.7 | 45.0 | 0.2955 | 0.0634 | 0.0156 |
| -0.7 | 75.0 | 0.2734 | 0.0682 | 0.0134 |
| -0.7 | 105.0 | 0.0964 | 0.0377 | 0.0126 |
| -0.7 | 135.0 | 0.157 | 0.0462 | 0.014 |
| -0.7 | 165.0 | 0.0979 | 0.0345 | 0.0148 |
| -0.7 | 195.0 | 0.1315 | 0.0403 | 0.0148 |
| -0.7 | 225.0 | 0.2163 | 0.0605 | 0.0132 |
| -0.7 | 255.0 | 0.2743 | 0.0702 | 0.0127 |
| -0.7 | 285.0 | 0.2169 | 0.0667 | 0.0133 |
| -0.7 | 315.0 | 0.3349 | 0.074 | 0.0146 |
| -0.7 | 345.0 | 0.1059 | 0.0454 | 0.0157 |
| -0.5 | 15.0 | 0.2902 | 0.0863 | 0.0158 |
| -0.5 | 45.0 | 0.2146 | 0.0515 | 0.0153 |
| -0.5 | 75.0 | 0.2371 | 0.0541 | 0.0141 |
| -0.5 | 105.0 | 0.3467 | 0.0821 | 0.013 |
| -0.5 | 135.0 | 0.2532 | 0.0541 | 0.0122 |
| -0.5 | 165.0 | 0.2017 | 0.0489 | 0.0125 |
| -0.5 | 195.0 | 0.0624 | 0.0244 | 0.0119 |
| -0.5 | 225.0 | 0.1838 | 0.0504 | 0.0113 |
| -0.5 | 255.0 | 0.1667 | 0.0504 | 0.0154 |
| -0.5 | 285.0 | 0.254 | 0.0593 | 0.0138 |
| -0.5 | 315.0 | 0.1454 | 0.0423 | 0.0147 |
| -0.5 | 345.0 | 0.1469 | 0.0587 | 0.0158 |
| -0.3 | 15.0 | 0.0508 | 0.0301 | 0.0166 |
| -0.3 | 45.0 | 0.2576 | 0.0564 | 0.0151 |
| -0.3 | 75.0 | 0.3443 | 0.0715 | 0.0143 |
| -0.3 | 105.0 | 0.2732 | 0.0683 | 0.0117 |
| -0.3 | 135.0 | 0.2286 | 0.052 | 0.011 |
| -0.3 | 165.0 | 0.122 | 0.0343 | 0.0099 |
| -0.3 | 195.0 | 0.1973 | 0.0463 | 0.0116 |
| -0.3 | 225.0 | 0.1904 | 0.0518 | 0.0094 |
| -0.3 | 255.0 | 0.3993 | 0.0884 | 0.0129 |
| -0.3 | 285.0 | 0.2357 | 0.0571 | 0.0147 |
| -0.3 | 315.0 | 0.1774 | 0.043 | 0.015 |
| -0.3 | 345.0 | 0.1264 | 0.0501 | 0.0166 |
| -0.1 | 15.0 | 0.1744 | 0.0589 | 0.0188 |
| -0.1 | 45.0 | 0.2852 | 0.058 | 0.0146 |
| -0.1 | 75.0 | 0.4313 | 0.0792 | 0.0132 |
| -0.1 | 105.0 | 0.5147 | 0.0921 | 0.0141 |
| -0.1 | 135.0 | 0.3163 | 0.0666 | 0.0097 |
| -0.1 | 165.0 | 0.2924 | 0.0575 | 0.0084 |
| -0.1 | 195.0 | 0.1748 | 0.0416 | 0.0106 |
| -0.1 | 225.0 | 0.2279 | 0.0541 | 0.0126 |
| -0.1 | 255.0 | 0.3341 | 0.0727 | 0.0119 |
| -0.1 | 285.0 | 0.4363 | 0.079 | 0.0128 |
| -0.1 | 315.0 | 0.3702 | 0.0687 | 0.0148 |
| -0.1 | 345.0 | 0.1836 | 0.057 | 0.0168 |
| 0.1 | 15.0 | 0.208 | 0.0642 | 0.0152 |
| 0.1 | 45.0 | 0.2348 | 0.049 | 0.0135 |
| 0.1 | 75.0 | 0.3082 | 0.0608 | 0.0114 |
| 0.1 | 105.0 | 0.3808 | 0.0776 | 0.0125 |
| 0.1 | 135.0 | 0.2493 | 0.0551 | 0.0139 |
| 0.1 | 165.0 | 0.2463 | 0.0473 | 0.0088 |
| 0.1 | 195.0 | 0.2233 | 0.0455 | 0.0079 |
| 0.1 | 225.0 | 0.3631 | 0.0731 | 0.0098 |
| 0.1 | 255.0 | 0.4399 | 0.0827 | 0.0132 |
| 0.1 | 285.0 | 0.2858 | 0.0572 | 0.0122 |
| 0.1 | 315.0 | 0.1918 | 0.0414 | 0.0132 |
| 0.1 | 345.0 | 0.1359 | 0.0479 | 0.0152 |
| 0.3 | 15.0 | 0.1283 | 0.0477 | 0.013 |
| 0.3 | 45.0 | 0.1975 | 0.0445 | 0.012 |
| 0.3 | 75.0 | 0.2589 | 0.0536 | 0.0143 |
| 0.3 | 105.0 | 0.4362 | 0.0836 | 0.016 |
| 0.3 | 135.0 | 0.2618 | 0.0529 | 0.0102 |
| 0.3 | 165.0 | 0.2457 | 0.0461 | 0.0078 |
| 0.3 | 195.0 | 0.1597 | 0.0376 | 0.0086 |
| 0.3 | 225.0 | 0.384 | 0.0657 | 0.0081 |
| 0.3 | 255.0 | 0.2355 | 0.0583 | 0.01 |
| 0.3 | 285.0 | 0.3901 | 0.072 | 0.0111 |
| 0.3 | 315.0 | 0.3394 | 0.0614 | 0.0121 |
| 0.3 | 345.0 | 0.1638 | 0.0551 | 0.013 |
| 0.5 | 15.0 | 0.1579 | 0.0484 | 0.0115 |
| 0.5 | 45.0 | 0.2034 | 0.0417 | 0.0105 |
| 0.5 | 75.0 | 0.2944 | 0.0555 | 0.0094 |
| 0.5 | 105.0 | 0.373 | 0.0788 | 0.0124 |
| 0.5 | 135.0 | 0.2008 | 0.046 | 0.0098 |
| 0.5 | 165.0 | 0.2682 | 0.0513 | 0.0081 |
| 0.5 | 195.0 | 0.2602 | 0.0478 | 0.0074 |
| 0.5 | 225.0 | 0.2422 | 0.0488 | 0.008 |
| 0.5 | 255.0 | 0.3957 | 0.077 | 0.012 |
| 0.5 | 285.0 | 0.2173 | 0.0468 | 0.0101 |
| 0.5 | 315.0 | 0.1645 | 0.0368 | 0.0123 |
| 0.5 | 345.0 | 0.2049 | 0.0592 | 0.0129 |
| 0.7 | 15.0 | 0.1002 | 0.0396 | 0.0105 |
| 0.7 | 45.0 | 0.1881 | 0.0387 | 0.0099 |
| 0.7 | 75.0 | 0.2548 | 0.0489 | 0.0106 |
| 0.7 | 105.0 | 0.2427 | 0.0526 | 0.0091 |
| 0.7 | 135.0 | 0.2811 | 0.0574 | 0.0078 |
| 0.7 | 165.0 | 0.1883 | 0.0418 | 0.0083 |
| 0.7 | 195.0 | 0.2281 | 0.0449 | 0.0098 |
| 0.7 | 225.0 | 0.2319 | 0.0516 | 0.0078 |
| 0.7 | 255.0 | 0.2956 | 0.0572 | 0.0109 |
| 0.7 | 285.0 | 0.2263 | 0.044 | 0.0097 |
| 0.7 | 315.0 | 0.2355 | 0.0481 | 0.0092 |
| 0.7 | 345.0 | 0.1078 | 0.0376 | 0.0113 |
| 0.9 | 15.0 | 0.1506 | 0.0467 | 0.0125 |
| 0.9 | 45.0 | 0.0939 | 0.0263 | 0.0105 |
| 0.9 | 75.0 | 0.1299 | 0.0341 | 0.0108 |
| 0.9 | 105.0 | 0.174 | 0.0423 | 0.0083 |
| 0.9 | 135.0 | 0.2465 | 0.0534 | 0.0181 |
| 0.9 | 165.0 | 0.189 | 0.0423 | 0.0069 |
| 0.9 | 195.0 | 0.2715 | 0.0532 | 0.0162 |
| 0.9 | 225.0 | 0.1439 | 0.0378 | 0.0112 |
| 0.9 | 255.0 | 0.1535 | 0.0363 | 0.0115 |
| 0.9 | 285.0 | 0.17 | 0.0363 | 0.0164 |
| 0.9 | 315.0 | 0.145 | 0.0324 | 0.0102 |
| 0.9 | 345.0 | 0.0304 | 0.0219 | 0.0119 |
