Measurement E37M45
| Experiment: | E99-107 | |
|---|---|---|
| Year: | 2006 |
|
| Spokespersons: | P. Stoler, V.D.Burkert, R. Minehart, M. Taiuti | |
| Reaction: | ep → π0p | |
| Polarization: | none | |
| Quantity: | dσ/dΩ | |
| Q2: | 3.0 GeV2 | |
| W: | 1.39 GeV | |
| Ebeam: | 5.75 GeV | |
| Publication: |
M. Ungaro, P. Stoler, and CLAS Collabboration Measurement of the N → Δ+(1232) Transition at High Momentum Transfer by π0 Electroproduction //
PRL 97, 112003 (2006)
|
|

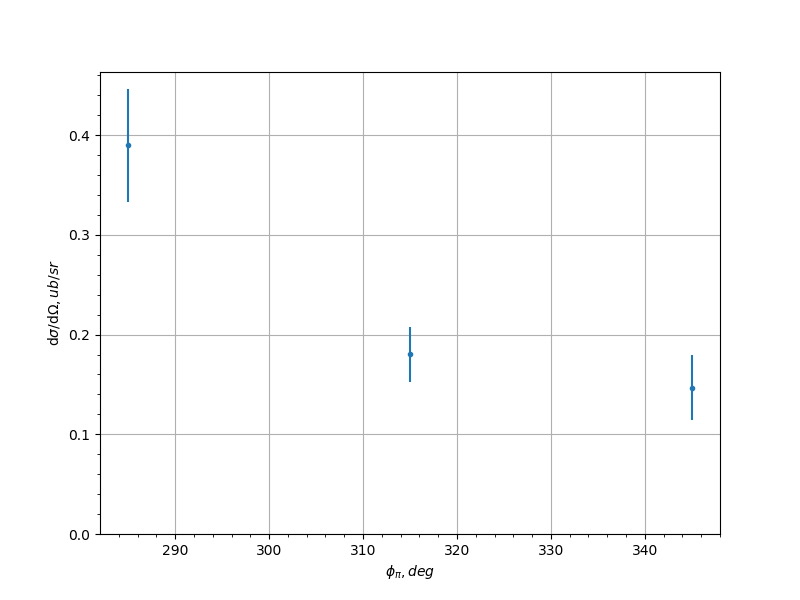

| cos(θπ) | φπ, [deg] | dσ/dΩ, [ub/sr] | uncertainty | syst. uncert. |
|---|---|---|---|---|
| 0.1 | 285.0 | 0.3899 | 0.0569 | 0.0132 |
| 0.1 | 315.0 | 0.1804 | 0.0277 | 0.0138 |
| 0.1 | 345.0 | 0.1469 | 0.0324 | 0.0292 |
| 0.3 | 15.0 | 0.1093 | 0.0265 | 0.0217 |
| 0.3 | 45.0 | 0.166 | 0.0267 | 0.0133 |
| 0.3 | 75.0 | 0.3166 | 0.0537 | 0.0153 |
| 0.3 | 105.0 | 0.2196 | 0.0556 | 0.0172 |
| 0.3 | 135.0 | 0.4255 | 0.0988 | 0.0216 |
| 0.3 | 165.0 | 0.3313 | 0.0541 | 0.0186 |
| 0.3 | 195.0 | 0.2773 | 0.0448 | 0.0154 |
| 0.3 | 225.0 | 0.3 | 0.0649 | 0.0206 |
| 0.3 | 255.0 | 0.2424 | 0.0559 | 0.0168 |
| 0.3 | 285.0 | 0.2529 | 0.0425 | 0.0139 |
| 0.3 | 315.0 | 0.1783 | 0.0297 | 0.0137 |
| 0.3 | 345.0 | 0.1107 | 0.0312 | 0.0213 |
| 0.5 | 15.0 | 0.0516 | 0.0197 | 0.0185 |
| 0.5 | 45.0 | 0.1642 | 0.0284 | 0.0175 |
| 0.5 | 75.0 | 0.2041 | 0.0465 | 0.018 |
| 0.5 | 105.0 | 0.1807 | 0.0487 | 0.0151 |
| 0.5 | 135.0 | 0.4239 | 0.0954 | 0.0239 |
| 0.5 | 165.0 | 0.3247 | 0.0557 | 0.0181 |
| 0.5 | 195.0 | 0.2539 | 0.0406 | 0.0218 |
| 0.5 | 225.0 | 0.2377 | 0.0553 | 0.0145 |
| 0.5 | 255.0 | 0.1763 | 0.0432 | 0.0149 |
| 0.5 | 285.0 | 0.2025 | 0.0374 | 0.0147 |
| 0.5 | 315.0 | 0.1854 | 0.0309 | 0.0161 |
| 0.5 | 345.0 | 0.1066 | 0.0316 | 0.0184 |
| 0.7 | 15.0 | 0.1459 | 0.0431 | 0.0213 |
| 0.7 | 45.0 | 0.1452 | 0.0296 | 0.0217 |
| 0.7 | 75.0 | 0.1076 | 0.027 | 0.0191 |
| 0.7 | 105.0 | 0.1309 | 0.035 | 0.017 |
| 0.7 | 135.0 | 0.3945 | 0.093 | 0.0176 |
| 0.7 | 165.0 | 0.2359 | 0.0411 | 0.0178 |
| 0.7 | 195.0 | 0.2301 | 0.0418 | 0.0175 |
| 0.7 | 225.0 | 0.2535 | 0.0569 | 0.0179 |
| 0.7 | 255.0 | 0.1628 | 0.0377 | 0.0257 |
| 0.7 | 285.0 | 0.1383 | 0.0269 | 0.0194 |
| 0.7 | 315.0 | 0.0938 | 0.0192 | 0.0215 |
| 0.7 | 345.0 | 0.0816 | 0.0273 | 0.0223 |
| 0.9 | 15.0 | 0.1782 | 0.0563 | 0.0569 |
| 0.9 | 45.0 | 0.1127 | 0.0279 | 0.0441 |
| 0.9 | 75.0 | 0.1613 | 0.0377 | 0.0274 |
| 0.9 | 105.0 | 0.145 | 0.0363 | 0.0198 |
| 0.9 | 135.0 | 0.3309 | 0.084 | 0.0436 |
| 0.9 | 165.0 | 0.2546 | 0.057 | 0.0498 |
| 0.9 | 195.0 | 0.1737 | 0.0378 | 0.0316 |
| 0.9 | 225.0 | 0.2253 | 0.0531 | 0.029 |
| 0.9 | 255.0 | 0.2081 | 0.0463 | 0.0295 |
| 0.9 | 285.0 | 0.2179 | 0.0534 | 0.0279 |
| 0.9 | 315.0 | 0.1527 | 0.038 | 0.0455 |
| 0.9 | 345.0 | 0.1315 | 0.0467 | 0.0578 |
