Measurement E37M76
| Experiment: | E99-107 | |
|---|---|---|
| Year: | 2006 |
|
| Spokespersons: | P. Stoler, V.D.Burkert, R. Minehart, M. Taiuti | |
| Reaction: | ep → π0p | |
| Polarization: | none | |
| Quantity: | dσ/dΩ | |
| Q2: | 6.0 GeV2 | |
| W: | 1.39 GeV | |
| Ebeam: | 5.75 GeV | |
| Publication: |
M. Ungaro, P. Stoler, and CLAS Collabboration Measurement of the N → Δ+(1232) Transition at High Momentum Transfer by π0 Electroproduction //
PRL 97, 112003 (2006)
|
|

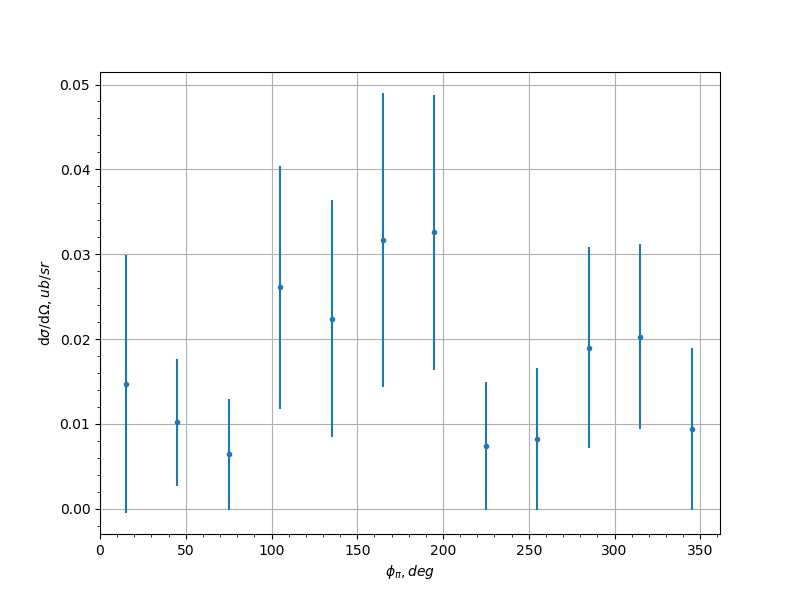

| cos(θπ) | φπ, [deg] | dσ/dΩ, [ub/sr] | uncertainty | syst. uncert. |
|---|---|---|---|---|
| -0.9 | 15.0 | 0.0147 | 0.0152 | 0.0827 |
| -0.9 | 45.0 | 0.0102 | 0.0075 | 0.0624 |
| -0.9 | 75.0 | 0.0064 | 0.0065 | 0.0389 |
| -0.9 | 105.0 | 0.0261 | 0.0143 | 0.0345 |
| -0.9 | 135.0 | 0.0224 | 0.014 | 0.0596 |
| -0.9 | 165.0 | 0.0317 | 0.0173 | 0.0721 |
| -0.9 | 195.0 | 0.0326 | 0.0162 | 0.0722 |
| -0.9 | 225.0 | 0.0074 | 0.0075 | 0.0588 |
| -0.9 | 255.0 | 0.0082 | 0.0084 | 0.0333 |
| -0.9 | 285.0 | 0.019 | 0.0118 | 0.039 |
| -0.9 | 315.0 | 0.0203 | 0.0109 | 0.0624 |
| -0.9 | 345.0 | 0.0094 | 0.0096 | 0.083 |
| -0.7 | 15.0 | 0.029 | 0.0303 | 0.058 |
| -0.7 | 45.0 | 0.045 | 0.0222 | 0.0317 |
| -0.7 | 75.0 | 0.022 | 0.0118 | 0.0161 |
| -0.7 | 105.0 | 0.0211 | 0.0128 | 0.0069 |
| -0.7 | 135.0 | 0.0095 | 0.0097 | 0.011 |
| -0.7 | 165.0 | 0.0761 | 0.0385 | 0.0158 |
| -0.7 | 195.0 | 0.0081 | 0.0083 | 0.0145 |
| -0.7 | 225.0 | 0.0142 | 0.0104 | 0.0102 |
| -0.7 | 255.0 | 0.0195 | 0.0145 | 0.0067 |
| -0.7 | 285.0 | 0.0396 | 0.0197 | 0.0162 |
| -0.7 | 315.0 | 0.0313 | 0.0195 | 0.0315 |
| -0.7 | 345.0 | 0.1045 | 0.0546 | 0.0655 |
| -0.5 | 15.0 | 0.033 | 0.0201 | 0.043 |
| -0.5 | 45.0 | 0.072 | 0.0257 | 0.0235 |
| -0.5 | 75.0 | 0.0246 | 0.0182 | 0.0117 |
| -0.5 | 105.0 | 0.0541 | 0.0269 | 0.011 |
| -0.5 | 135.0 | 0.0821 | 0.0329 | 0.0075 |
| -0.5 | 165.0 | 0.023 | 0.0168 | 0.0083 |
| -0.5 | 195.0 | 0.008 | 0.0081 | 0.0075 |
| -0.5 | 225.0 | 0.0865 | 0.0429 | 0.0056 |
| -0.5 | 255.0 | 0.037 | 0.023 | 0.0052 |
| -0.5 | 285.0 | 0.0533 | 0.0266 | 0.0119 |
| -0.5 | 315.0 | 0.0944 | 0.0392 | 0.0233 |
| -0.5 | 345.0 | 0.1129 | 0.0531 | 0.0431 |
| -0.3 | 15.0 | 0.0788 | 0.0328 | 0.0463 |
| -0.3 | 45.0 | 0.0626 | 0.0244 | 0.0207 |
| -0.3 | 75.0 | 0.0791 | 0.0335 | 0.0113 |
| -0.3 | 105.0 | 0.0549 | 0.0226 | 0.0096 |
| -0.3 | 135.0 | 0.0531 | 0.0326 | 0.005 |
| -0.3 | 165.0 | 0.091 | 0.0375 | 0.0058 |
| -0.3 | 195.0 | 0.0482 | 0.0253 | 0.0101 |
| -0.3 | 225.0 | 0.0774 | 0.0375 | 0.0085 |
| -0.3 | 255.0 | 0.0776 | 0.0389 | 0.0126 |
| -0.3 | 285.0 | 0.0328 | 0.0157 | 0.0101 |
| -0.3 | 315.0 | 0.0785 | 0.0264 | 0.0202 |
| -0.3 | 345.0 | 0.0095 | 0.0097 | 0.0458 |
| -0.1 | 15.0 | 0.0562 | 0.0297 | 0.0452 |
| -0.1 | 45.0 | 0.0497 | 0.0201 | 0.0171 |
| -0.1 | 75.0 | 0.0426 | 0.0206 | 0.0112 |
| -0.1 | 105.0 | 0.1022 | 0.0411 | 0.0183 |
| -0.1 | 135.0 | 0.1135 | 0.0476 | 0.0076 |
| -0.1 | 165.0 | 0.0647 | 0.0279 | 0.009 |
| -0.1 | 195.0 | 0.0735 | 0.0296 | 0.0088 |
| -0.1 | 225.0 | 0.1098 | 0.0491 | 0.0169 |
| -0.1 | 255.0 | 0.0588 | 0.0285 | 0.0129 |
| -0.1 | 285.0 | 0.028 | 0.0204 | 0.0099 |
| -0.1 | 315.0 | 0.0377 | 0.0177 | 0.0169 |
| -0.1 | 345.0 | 0.0336 | 0.0201 | 0.0455 |
| 0.1 | 15.0 | 0.0255 | 0.0185 | 0.0331 |
| 0.1 | 45.0 | 0.0788 | 0.0283 | 0.0146 |
| 0.1 | 75.0 | 0.0425 | 0.0201 | 0.0068 |
| 0.1 | 105.0 | 0.0796 | 0.0389 | 0.0105 |
| 0.1 | 135.0 | 0.0588 | 0.028 | 0.0107 |
| 0.1 | 165.0 | 0.0101 | 0.0102 | 0.0114 |
| 0.1 | 195.0 | 0.0323 | 0.0192 | 0.0118 |
| 0.1 | 225.0 | 0.0573 | 0.0346 | 0.0091 |
| 0.1 | 255.0 | 0.1033 | 0.0515 | 0.0139 |
| 0.1 | 285.0 | 0.0244 | 0.0147 | 0.0067 |
| 0.1 | 315.0 | 0.0437 | 0.0188 | 0.0135 |
| 0.1 | 345.0 | 0.1044 | 0.0426 | 0.0331 |
| 0.3 | 15.0 | 0.1169 | 0.0478 | 0.0193 |
| 0.3 | 45.0 | 0.0327 | 0.017 | 0.0102 |
| 0.3 | 75.0 | 0.093 | 0.0386 | 0.0101 |
| 0.3 | 105.0 | 0.0507 | 0.0308 | 0.0144 |
| 0.3 | 135.0 | 0.0941 | 0.0455 | 0.0238 |
| 0.3 | 165.0 | 0.079 | 0.0344 | 0.0159 |
| 0.3 | 195.0 | 0.0442 | 0.0229 | 0.0163 |
| 0.3 | 225.0 | 0.0366 | 0.0267 | 0.0122 |
| 0.3 | 255.0 | 0.021 | 0.0153 | 0.0069 |
| 0.3 | 285.0 | 0.0702 | 0.027 | 0.0146 |
| 0.3 | 315.0 | 0.0511 | 0.019 | 0.0101 |
| 0.3 | 345.0 | 0.0554 | 0.029 | 0.0193 |
| 0.5 | 15.0 | 0.0146 | 0.0147 | 0.015 |
| 0.5 | 45.0 | 0.054 | 0.0202 | 0.0088 |
| 0.5 | 75.0 | 0.0734 | 0.0298 | 0.0062 |
| 0.5 | 105.0 | 0.0943 | 0.0396 | 0.0069 |
| 0.5 | 135.0 | 0.041 | 0.0247 | 0.0192 |
| 0.5 | 165.0 | 0.0545 | 0.0256 | 0.0207 |
| 0.5 | 195.0 | 0.0614 | 0.0265 | 0.0201 |
| 0.5 | 225.0 | 0.0845 | 0.0452 | 0.0136 |
| 0.5 | 255.0 | 0.0569 | 0.0301 | 0.0096 |
| 0.5 | 285.0 | 0.0492 | 0.0233 | 0.0071 |
| 0.5 | 315.0 | 0.0245 | 0.0128 | 0.0066 |
| 0.5 | 345.0 | 0.0209 | 0.015 | 0.0144 |
| 0.7 | 15.0 | 0.0298 | 0.0177 | 0.0086 |
| 0.7 | 45.0 | 0.0359 | 0.0154 | 0.0043 |
| 0.7 | 75.0 | 0.0322 | 0.0151 | 0.0068 |
| 0.7 | 105.0 | 0.0634 | 0.0306 | 0.0108 |
| 0.7 | 135.0 | 0.0623 | 0.03 | 0.0177 |
| 0.7 | 165.0 | 0.0477 | 0.0223 | 0.0201 |
| 0.7 | 195.0 | 0.0432 | 0.0203 | 0.0198 |
| 0.7 | 225.0 | 0.0412 | 0.0254 | 0.0153 |
| 0.7 | 255.0 | 0.093 | 0.0425 | 0.0123 |
| 0.7 | 285.0 | 0.0386 | 0.0183 | 0.006 |
| 0.7 | 315.0 | 0.0576 | 0.0186 | 0.0044 |
| 0.7 | 345.0 | 0.0249 | 0.0149 | 0.0094 |
| 0.9 | 15.0 | 0.0277 | 0.015 | 0.0629 |
| 0.9 | 45.0 | 0.027 | 0.0119 | 0.045 |
| 0.9 | 75.0 | 0.0397 | 0.0192 | 0.0144 |
| 0.9 | 105.0 | 0.0371 | 0.0202 | 0.0171 |
| 0.9 | 135.0 | 0.0655 | 0.0297 | 0.0366 |
| 0.9 | 165.0 | 0.0378 | 0.0182 | 0.0383 |
| 0.9 | 195.0 | 0.0616 | 0.0245 | 0.04 |
| 0.9 | 225.0 | 0.0417 | 0.0173 | 0.0315 |
| 0.9 | 255.0 | 0.0417 | 0.0203 | 0.0188 |
| 0.9 | 285.0 | 0.0379 | 0.0186 | 0.0148 |
| 0.9 | 315.0 | 0.0367 | 0.0137 | 0.0432 |
| 0.9 | 345.0 | 0.0058 | 0.0059 | 0.0628 |
