Measurement E39M202
| Experiment: | E1-5st-Sigma0 (E93-030/E00-112) | |
|---|---|---|
| Year: | 1999 | |
| Spokespersons: | Mestayer, Hicks, Carman, Raue | |
| Reaction: | ep → K+ Σ0 | |
| Polarization: | none | |
| Quantity: | dσ/dΩ | |
| Q2: | 1.55 GeV2 | |
| W: | 2.15 GeV | |
| ε: | 0.493252 | |
| Publication: |
D.S. Carman, B.A. Raue, and CLAS Collaboration Beam-Recoil Polarization Transfer in the Nucleon Resonance Region in the Exclusive ep -> e′K+Λ and ep -> e′K+Σ0 Reactions at CLAS //
PRC 79, 065205 (2009)
|
|

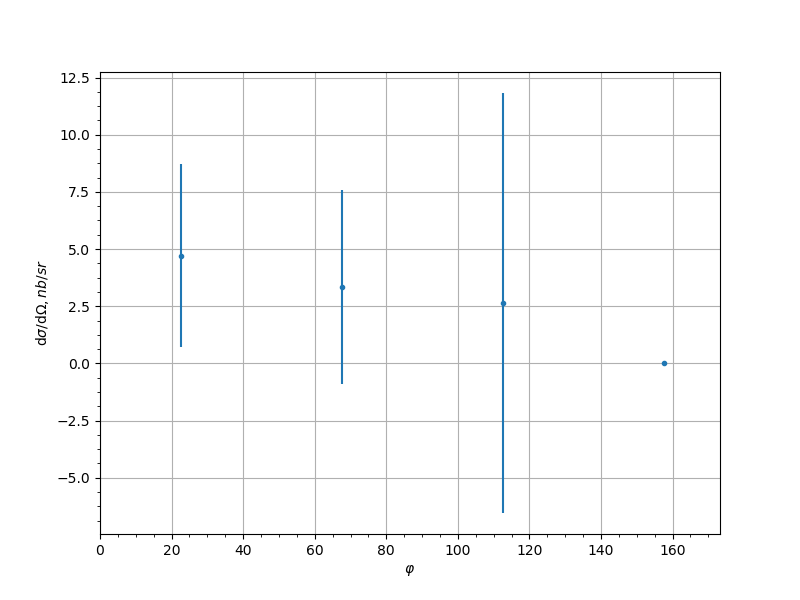

| cos(θ) | φ | dσ/dΩ, [nb/sr] | uncertainty |
|---|---|---|---|
| -0.6 | -157.5 | 0.0 | 0.0 |
| -0.6 | -112.5 | 5.187989 | 3.744137 |
| -0.6 | -67.5 | 2.127928 | 2.618592 |
| -0.6 | -22.5 | 0.559798 | 4.49991 |
| -0.6 | 22.5 | 4.708023 | 4.010158 |
| -0.6 | 67.5 | 3.3524 | 4.244257 |
| -0.6 | 112.5 | 2.640906 | 9.181635 |
| -0.6 | 157.5 | 0.0 | 0.0 |
| -0.25 | -157.5 | 4.36609 | 5.864151 |
| -0.25 | -112.5 | 7.893941 | 3.920523 |
| -0.25 | -67.5 | 7.624045 | 3.152069 |
| -0.25 | -22.5 | 3.837429 | 4.176395 |
| -0.25 | 22.5 | 12.345632 | 4.738157 |
| -0.25 | 67.5 | 8.90752 | 4.508821 |
| -0.25 | 112.5 | 0.784549 | 3.530956 |
| -0.25 | 157.5 | 6.715661 | 6.219815 |
| 0.05 | -157.5 | 15.066912 | 6.184801 |
| 0.05 | -112.5 | 5.368758 | 4.425339 |
| 0.05 | -67.5 | 9.216424 | 4.370152 |
| 0.05 | -22.5 | 12.559606 | 5.909075 |
| 0.05 | 22.5 | 13.306739 | 6.147365 |
| 0.05 | 67.5 | 5.395436 | 5.668296 |
| 0.05 | 112.5 | 10.130466 | 5.067874 |
| 0.05 | 157.5 | 11.342582 | 5.589046 |
| 0.35 | -165.0 | 21.508297 | 8.84813 |
| 0.35 | -135.0 | 12.227716 | 10.004371 |
| 0.35 | -105.0 | 13.560454 | 8.189528 |
| 0.35 | -75.0 | 18.303478 | 9.163043 |
| 0.35 | -45.0 | 13.774442 | 12.210271 |
| 0.35 | -15.0 | 0.0 | 0.0 |
| 0.35 | 15.0 | 4.087504 | 14.034125 |
| 0.35 | 45.0 | 16.312592 | 11.776428 |
| 0.35 | 75.0 | 13.984135 | 8.387725 |
| 0.35 | 105.0 | 22.465956 | 7.355148 |
| 0.35 | 135.0 | 6.5418 | 9.473887 |
| 0.35 | 165.0 | 19.75456 | 8.608242 |
| 0.65 | -165.0 | 25.111723 | 11.532687 |
| 0.65 | -135.0 | 12.010023 | 13.639491 |
| 0.65 | -105.0 | 20.591831 | 14.497876 |
| 0.65 | -75.0 | 13.325705 | 12.200838 |
| 0.65 | -45.0 | 0.0 | 0.0 |
| 0.65 | -15.0 | 0.0 | 0.0 |
| 0.65 | 15.0 | 0.0 | 0.0 |
| 0.65 | 45.0 | 38.583492 | 18.446148 |
| 0.65 | 75.0 | 8.43393 | 12.306995 |
| 0.65 | 105.0 | 8.507834 | 14.294857 |
| 0.65 | 135.0 | 17.953033 | 14.544194 |
| 0.65 | 165.0 | 19.319553 | 10.862436 |
| 0.9 | -165.0 | 11.958402 | 17.450893 |
| 0.9 | -135.0 | 8.995527 | 25.167919 |
| 0.9 | -105.0 | 0.0 | 0.0 |
| 0.9 | -75.0 | 6.511733 | 52.597462 |
| 0.9 | -45.0 | 13.982575 | 60.968811 |
| 0.9 | -15.0 | 82.272308 | 51.420937 |
| 0.9 | 15.0 | 0.0 | 0.0 |
| 0.9 | 45.0 | 11.052128 | 55.891628 |
| 0.9 | 75.0 | 3.039673 | 45.350193 |
| 0.9 | 105.0 | 51.547604 | 34.81126 |
| 0.9 | 135.0 | 7.944908 | 24.694855 |
| 0.9 | 165.0 | 27.292259 | 17.496965 |
