Measurement E40M15

Experiment: EG1
Year: 2000
Spokespersons: P. Stoler, V. Burkert, R. Minehart
Reaction: ep → π0p
Polarization: beam, target (longitudinal)
Quantity: Aet
Q2: 0.317 — 0.452 GeV2
W: 1.5 — 1.6 GeV
Publication:
A. S. Biselli, V. D. Burkert, and CLAS Collaboration First measurement of target and double spin asymmetries for polarized e- polarized p → e p π0 in the nucleon resonance region above the Δ(1232) // PRC 78, 045204 (2008)

Slice: cos(θ) = dimensionless

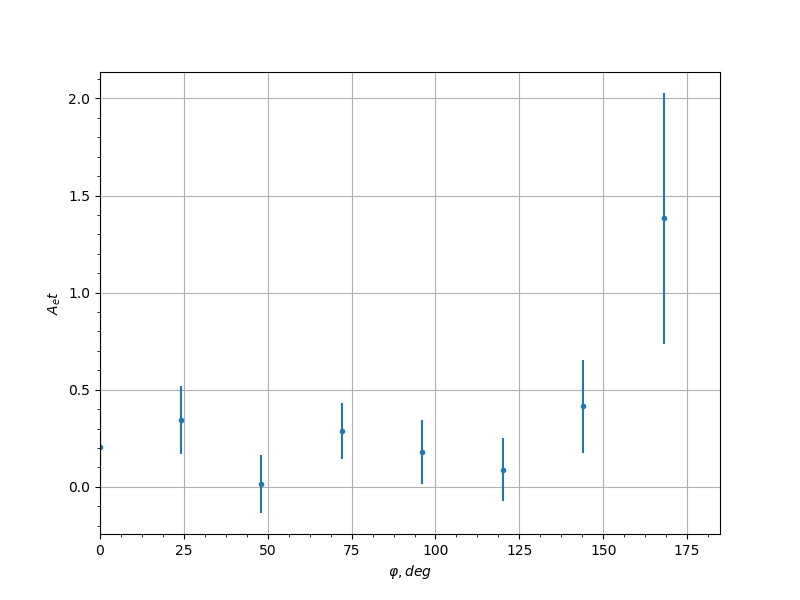

Measurement data
cos(θ) φ, [deg] Aet uncertainty syst. uncert.
-0.1 -168.0 0.409 0.456 0.0906
0.5 -168.0 1.117 1.187 0.2455
0.7 -168.0 2.338 3.908 2.3397
-0.7 -144.0 -0.169 0.531 0.0855
-0.5 -144.0 0.602 0.299 0.0884
-0.3 -144.0 0.566 0.36 0.0901
-0.1 -144.0 0.201 0.251 0.0743
0.1 -144.0 0.658 0.319 0.0719
0.3 -144.0 0.475 0.783 0.1335
0.5 -144.0 0.116 0.436 0.0437
0.7 -144.0 -0.913 7.743 0.5426
-0.9 -120.0 0.627 0.396 0.0779
-0.7 -120.0 0.378 0.404 0.0734
-0.5 -120.0 0.249 0.229 0.0776
-0.3 -120.0 0.197 0.241 0.0739
-0.1 -120.0 0.548 0.186 0.0639
0.1 -120.0 0.37 0.264 0.0663
0.3 -120.0 0.2 0.368 0.0565
0.5 -120.0 0.525 0.322 0.0691
0.7 -120.0 0.401 0.412 0.0736
-0.9 -96.0 -0.147 0.281 0.0265
-0.7 -96.0 0.078 0.248 0.0489
-0.5 -96.0 0.447 1.218 0.0802
-0.3 -96.0 0.276 0.234 0.0584
-0.1 -96.0 0.73 0.227 0.0706
0.1 -96.0 0.041 0.158 0.0431
0.3 -96.0 -0.125 0.198 0.0519
0.5 -96.0 0.451 0.303 0.0607
0.7 -96.0 1.262 0.889 0.4444
0.9 -96.0 -0.329 0.575 0.1051
-0.9 -72.0 -0.151 0.318 0.0108
-0.7 -72.0 0.087 0.216 0.0344
-0.5 -72.0 0.426 0.328 0.0647
-0.3 -72.0 0.344 0.229 0.0648
-0.1 -72.0 0.072 0.176 0.0598
0.1 -72.0 0.081 0.166 0.0461
0.3 -72.0 0.301 0.185 0.0469
-0.9 -48.0 -0.228 0.499 0.0475
-0.7 -48.0 0.402 0.268 0.045
-0.5 -48.0 0.137 0.209 0.0595
-0.3 -48.0 -0.164 0.199 0.0653
-0.1 -48.0 0.211 0.127 0.0611
0.1 -48.0 0.088 0.201 0.0652
-0.9 -24.0 -0.523 0.515 0.0621
-0.7 -24.0 -0.224 1.059 0.0564
-0.5 -24.0 -0.284 0.237 0.0609
-0.3 -24.0 0.021 0.181 0.0662
-0.1 -24.0 0.084 0.203 0.0715
-0.9 0.0 0.554 0.943 0.179
-0.7 0.0 0.901 1.89 0.7722
-0.5 0.0 -0.65 0.319 0.0729
-0.3 0.0 0.075 0.216 0.0742
-0.1 0.0 0.207 0.153 0.084
-0.9 24.0 -0.955 1.079 0.2598
-0.7 24.0 -0.135 0.549 0.0421
-0.5 24.0 0.098 0.368 0.0683
-0.3 24.0 0.215 0.21 0.0638
-0.1 24.0 0.343 0.174 0.0789
-0.9 48.0 -0.694 0.595 0.0953
-0.7 48.0 0.326 0.245 0.0575
-0.5 48.0 0.247 0.211 0.0637
-0.3 48.0 0.123 0.176 0.0674
-0.1 48.0 0.014 0.149 0.0657
0.1 48.0 0.188 0.178 0.0666
-0.9 72.0 -0.056 0.283 0.0113
-0.7 72.0 0.104 1.398 0.1052
-0.5 72.0 -0.316 0.355 0.0834
-0.3 72.0 -0.029 0.172 0.0591
-0.1 72.0 0.286 0.144 0.0589
0.1 72.0 0.292 0.132 0.0536
0.3 72.0 -0.025 0.17 0.049
-0.9 96.0 -0.08 0.399 0.0193
-0.7 96.0 0.438 0.23 0.0445
-0.5 96.0 0.578 0.362 0.0723
-0.3 96.0 0.293 0.192 0.0539
-0.1 96.0 0.178 0.164 0.0525
0.1 96.0 0.289 0.171 0.0527
0.3 96.0 0.543 0.787 0.0781
0.5 96.0 0.036 0.194 0.0369
0.7 96.0 -0.306 0.755 0.0807
-0.9 120.0 0.669 0.486 0.099
-0.7 120.0 0.634 0.429 0.0766
-0.5 120.0 0.399 0.284 0.0612
-0.3 120.0 0.112 0.176 0.0656
-0.1 120.0 0.088 0.161 0.0658
0.1 120.0 0.524 0.233 0.0664
0.3 120.0 0.086 0.229 0.0556
0.5 120.0 -0.288 1.302 0.1017
0.7 120.0 0.466 0.781 0.2021
-0.7 144.0 0.561 1.185 0.0605
-0.5 144.0 -0.843 8.563 0.2823
-0.3 144.0 0.513 0.262 0.0827
-0.1 144.0 0.414 0.238 0.0734
0.1 144.0 0.59 0.252 0.0789
0.3 144.0 -0.082 0.244 0.0608
0.5 144.0 0.505 0.391 0.076
0.7 144.0 0.879 0.512 0.1194
-0.1 168.0 1.382 0.646 0.1204
0.1 168.0 0.664 0.325 0.0951
0.3 168.0 0.232 0.225 0.0747
0.5 168.0 0.657 0.386 0.1008
0.7 168.0 2.071 1.438 0.8828
