Measurement E52M1

Experiment:	Measurement of the Σ⁺ π⁻ Photoproduction Line Shapes Near the Λ(1405)
Year:	2012	Measurement comment: Low and High Photon Energy = 1.56 1.77 GeV Low, High, Mean W = 1.95 2.05 2.00 GeV Kaon angle range (cosine) = -0.30 0.80
Spokesperson:	R. A. Schumacher
Reaction:	γp → K⁺ Σ⁺ π⁻
Polarization:	none
Quantity:	dσ/dM
W:	1.95 — 2.05 GeV
E_γ:	1.56 — 1.77 GeV
Publication:	K. Moriya, R. A. Schumacher et al. (CLAS Collaboration) Measurement of the Σ π Photoproduction Line Shapes Near the Λ(1405) // Phys. Rev. C 87, 035206 (2013) arXiv:1301.5000 [nucl-ex]

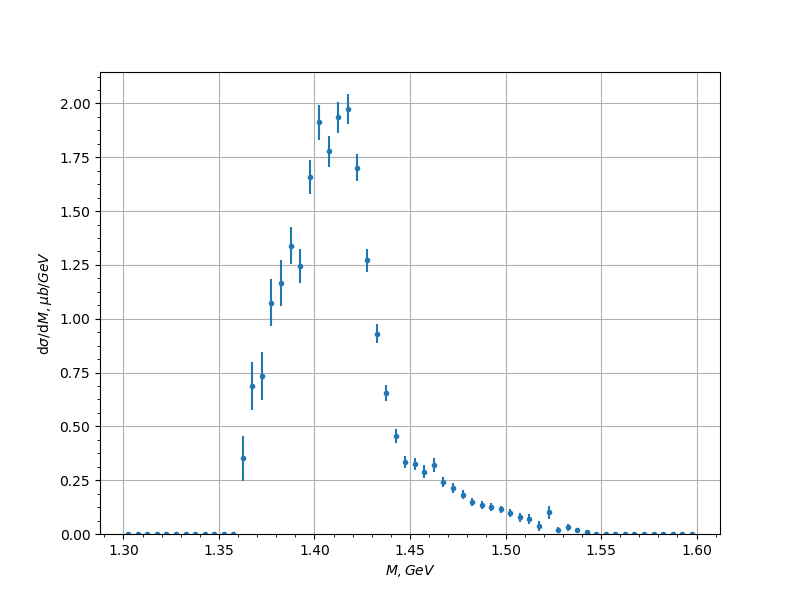

Measurement data
M, [GeV]	dσ/dM, [μb/GeV]	uncertainty	full uncertainty
1.3025	0.0	0.0	0.0
1.3075	0.0	0.0	0.0
1.3125	0.0	0.0	0.0
1.3175	0.0	0.0	0.0
1.3225	0.0	0.0	0.0
1.3275	0.0	0.0	0.0
1.3325	0.0	0.0	0.0
1.3375	0.0	0.0	0.0
1.3425	0.0	0.0	0.0
1.3475	0.0	0.0	0.0
1.3525	0.0	0.0	0.0
1.3575	0.0	0.0	0.0
1.3625	0.352	0.104	0.162
1.3675	0.687	0.11	0.128
1.3725	0.734	0.11	0.123
1.3775	1.075	0.111	0.133
1.3825	1.166	0.106	0.14
1.3875	1.34	0.087	0.12
1.3925	1.245	0.079	0.122
1.3975	1.659	0.08	0.101
1.4025	1.912	0.083	0.088
1.4075	1.778	0.071	0.087
1.4125	1.935	0.072	0.098
1.4175	1.974	0.07	0.17
1.4225	1.702	0.063	0.158
1.4275	1.271	0.053	0.124
1.4325	0.931	0.044	0.088
1.4375	0.656	0.038	0.05
1.4425	0.456	0.032	0.042
1.4475	0.334	0.029	0.039
1.4525	0.323	0.028	0.041
1.4575	0.29	0.029	0.039
1.4625	0.322	0.032	0.076
1.4675	0.243	0.024	0.065
1.4725	0.215	0.023	0.063
1.4775	0.183	0.022	0.063
1.4825	0.149	0.02	0.046
1.4875	0.135	0.019	0.056
1.4925	0.127	0.019	0.048
1.4975	0.114	0.018	0.043
1.5025	0.097	0.019	0.035
1.5075	0.077	0.02	0.025
1.5125	0.07	0.023	0.028
1.5175	0.038	0.023	0.024
1.5225	0.101	0.031	0.037
1.5275	0.018	0.013	0.014
1.5325	0.031	0.016	0.016
1.5375	0.018	0.011	0.012
1.5425	0.01	0.009	0.01
1.5475	0.0	0.0	0.0
1.5525	0.0	0.0	0.0
1.5575	0.0	0.0	0.0
1.5625	0.0	0.0	0.0
1.5675	0.0	0.0	0.0
1.5725	0.0	0.0	0.0
1.5775	0.0	0.0	0.0
1.5825	0.0	0.0	0.0
1.5875	0.0	0.0	0.0
1.5925	0.0	0.0	0.0
1.5975	0.0	0.0	0.0
