Measurement E62M793
| Experiment: | E-94-005 CLAS experiment | |
|---|---|---|
| Year: | 2006 |
|
| Spokesperson: | L. Elouadrhiri | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | σ | |
| Q2: | 0.2 — 0.6 GeV2 | |
| W: | 1.3 — 1.6 GeV | |
| Publication: |
G.V.Fedotov, V.I.Mokeev, V.D.Burkert, L.Elouadrhiri, E.N.Golovatch, B.S.Ishkhanov, E.L.Isupov, N.V.Shvedunov, and CLAS Collaboration Electroproduction of pπ+π− off Protons at 0.2<Q2<0.6 GeV2 and 1.3<W<1.57 GeV with CLAS //
PRC 79, 015204 (2009)
|
|

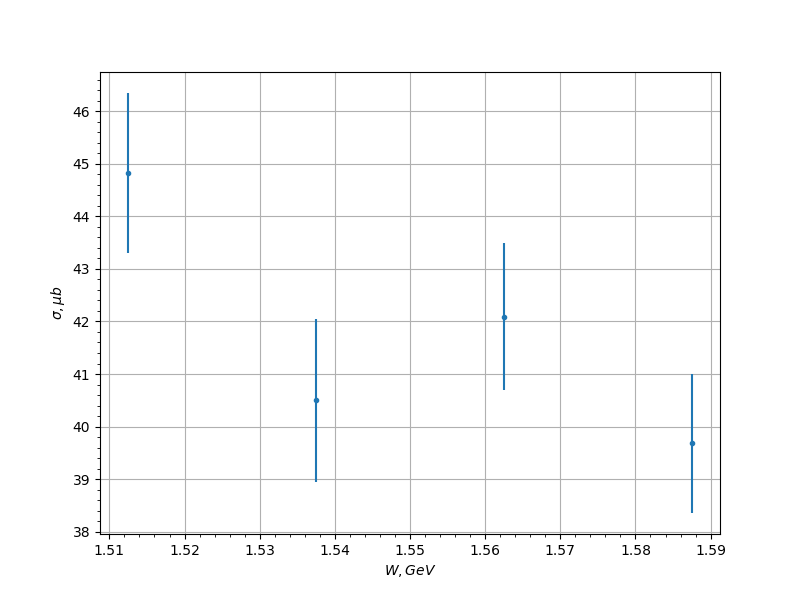

| Q2, [GeV2] | W, [GeV] | σ, [μb] | uncertainty |
|---|---|---|---|
| 0.225 | 1.5125 | 44.8273773 | 1.51808882 |
| 0.225 | 1.5375 | 40.4969292 | 1.54815555 |
| 0.225 | 1.5625 | 42.0923195 | 1.39615655 |
| 0.225 | 1.5875 | 39.6825714 | 1.32588351 |
| 0.275 | 1.3125 | 6.13215971 | 0.68170774 |
| 0.275 | 1.3375 | 9.82524109 | 0.688723743 |
| 0.275 | 1.3625 | 20.3291492 | 0.983547568 |
| 0.275 | 1.3875 | 26.9344597 | 1.16584694 |
| 0.275 | 1.4125 | 34.8136635 | 1.21357584 |
| 0.275 | 1.4375 | 36.4138069 | 1.10229981 |
| 0.275 | 1.4625 | 38.1999969 | 1.04474735 |
| 0.275 | 1.4875 | 41.657692 | 1.14411509 |
| 0.275 | 1.5125 | 41.1060905 | 1.24018693 |
| 0.275 | 1.5375 | 37.8407326 | 1.38346517 |
| 0.275 | 1.5625 | 36.5958939 | 1.19943881 |
| 0.325 | 1.3125 | 3.80598235 | 0.474624068 |
| 0.325 | 1.3375 | 9.00221252 | 0.684731126 |
| 0.325 | 1.3625 | 18.797369 | 1.12964439 |
| 0.325 | 1.3875 | 23.6943264 | 1.16060078 |
| 0.325 | 1.4125 | 27.7946625 | 1.01271713 |
| 0.325 | 1.4375 | 32.7993507 | 1.17859161 |
| 0.325 | 1.4625 | 35.4190674 | 1.19018531 |
| 0.325 | 1.4875 | 37.0180397 | 1.03291512 |
| 0.325 | 1.5125 | 35.3550186 | 0.992419362 |
| 0.325 | 1.5375 | 34.563118 | 1.06454003 |
| 0.375 | 1.3125 | 3.61449456 | 0.386396766 |
| 0.375 | 1.3375 | 9.15621853 | 0.793600321 |
| 0.375 | 1.3625 | 13.9185934 | 0.798797667 |
| 0.375 | 1.3875 | 19.5121422 | 0.861473322 |
| 0.375 | 1.4125 | 24.2202148 | 0.83383292 |
| 0.375 | 1.4375 | 29.2483826 | 0.981246054 |
| 0.375 | 1.4625 | 30.3674393 | 1.03291047 |
| 0.375 | 1.4875 | 35.4386139 | 1.21721423 |
| 0.375 | 1.5125 | 33.3140831 | 1.06928098 |
| 0.375 | 1.5375 | 32.264801 | 1.2889924 |
| 0.425 | 1.3125 | 3.27920032 | 0.348774791 |
| 0.425 | 1.3375 | 7.57423258 | 0.581891775 |
| 0.425 | 1.3625 | 12.8282061 | 0.907347262 |
| 0.425 | 1.3875 | 19.7579994 | 0.984615564 |
| 0.425 | 1.4125 | 24.2210236 | 1.02476585 |
| 0.425 | 1.4375 | 27.2032166 | 1.05169737 |
| 0.425 | 1.4625 | 28.6573925 | 1.01539469 |
| 0.425 | 1.4875 | 31.6273079 | 1.14650834 |
| 0.425 | 1.5125 | 29.9035053 | 1.07694101 |
| 0.475 | 1.3125 | 3.88259625 | 0.534401238 |
| 0.475 | 1.3375 | 6.40952635 | 0.637927055 |
| 0.475 | 1.3625 | 12.1366282 | 0.86483264 |
| 0.475 | 1.3875 | 15.3036842 | 0.896188021 |
| 0.475 | 1.4125 | 22.4861298 | 0.997347295 |
| 0.475 | 1.4375 | 23.518734 | 0.943069935 |
| 0.475 | 1.4625 | 24.7309189 | 1.1742028 |
| 0.475 | 1.4875 | 29.2696743 | 1.24688637 |
| 0.525 | 1.3125 | 3.3248992 | 0.432195485 |
| 0.525 | 1.3375 | 5.92866659 | 0.59735477 |
| 0.525 | 1.3625 | 11.8551712 | 1.00931871 |
| 0.525 | 1.3875 | 16.3483448 | 1.00323892 |
| 0.525 | 1.4125 | 18.4085732 | 1.1125474 |
| 0.525 | 1.4375 | 20.865036 | 1.0335933 |
| 0.525 | 1.4625 | 22.6662407 | 1.08615124 |
| 0.525 | 1.4875 | 24.8998222 | 1.25038612 |
| 0.575 | 1.3125 | 3.75845313 | 0.606495678 |
| 0.575 | 1.3375 | 5.52927494 | 0.673248827 |
| 0.575 | 1.3625 | 9.00072861 | 0.819526255 |
| 0.575 | 1.3875 | 13.6588821 | 1.05358553 |
| 0.575 | 1.4125 | 14.6185369 | 1.0531652 |
| 0.575 | 1.4375 | 20.4938869 | 1.14974141 |
