Measurement E8M75
| Experiment: | E89-038 CLAS experiment | |
|---|---|---|
| Year: | 1999 | |
| Spokespersons: | V. Burkert, R. Minehart | |
| Reaction: | ep → π+n | |
| Polarization: | none | |
| Quantity: | dσ/dΩ | |
| Q2: | 0.55 — 0.65 GeV2 | |
| W: | 1.22 — 1.24 GeV | |
| Ebeam: | 1.515 GeV | |
| Publication: |
under preparation //
|
|

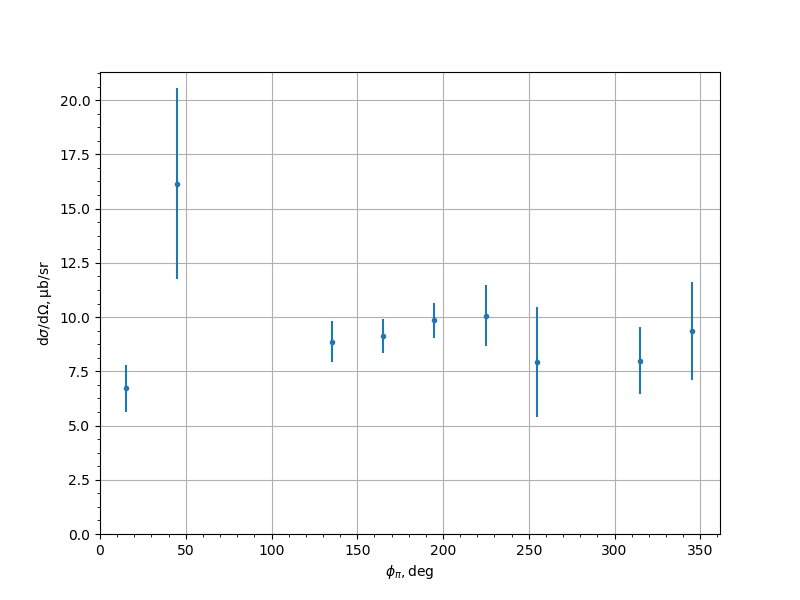

| θπ, [deg] | φπ, [deg] | dσ/dΩ, [μb/sr] | uncertainty |
|---|---|---|---|
| 22.5 | 15.0 | 6.715 | 1.096 |
| 22.5 | 45.0 | 16.14 | 4.401 |
| 22.5 | 135.0 | 8.864 | 0.9543 |
| 22.5 | 165.0 | 9.133 | 0.7909 |
| 22.5 | 195.0 | 9.855 | 0.8135 |
| 22.5 | 225.0 | 10.07 | 1.397 |
| 22.5 | 255.0 | 7.933 | 2.522 |
| 22.5 | 315.0 | 7.993 | 1.554 |
| 22.5 | 345.0 | 9.358 | 2.277 |
| 37.5 | 15.0 | 10.63 | 2.615 |
| 37.5 | 45.0 | 11.27 | 3.425 |
| 37.5 | 105.0 | 11.21 | 1.143 |
| 37.5 | 135.0 | 9.933 | 0.8007 |
| 37.5 | 165.0 | 9.91 | 0.6536 |
| 37.5 | 195.0 | 10.73 | 0.7004 |
| 37.5 | 225.0 | 10.39 | 0.8295 |
| 37.5 | 255.0 | 9.316 | 0.9759 |
| 37.5 | 315.0 | 6.659 | 1.546 |
| 37.5 | 345.0 | 7.169 | 1.354 |
| 52.5 | 45.0 | 11.46 | 1.512 |
| 52.5 | 75.0 | 11.48 | 2.172 |
| 52.5 | 105.0 | 14.16 | 1.036 |
| 52.5 | 135.0 | 9.597 | 0.6964 |
| 52.5 | 165.0 | 9.118 | 0.5547 |
| 52.5 | 195.0 | 9.819 | 0.5795 |
| 52.5 | 225.0 | 11.92 | 0.8778 |
| 52.5 | 255.0 | 10.37 | 0.795 |
| 52.5 | 285.0 | 10.36 | 2.906 |
| 52.5 | 315.0 | 11.13 | 1.364 |
| 67.5 | 45.0 | 9.975 | 1.951 |
| 67.5 | 75.0 | 10.71 | 0.7122 |
| 67.5 | 105.0 | 14.46 | 0.875 |
| 67.5 | 135.0 | 13.26 | 0.916 |
| 67.5 | 165.0 | 8.42 | 0.5458 |
| 67.5 | 195.0 | 8.789 | 0.5433 |
| 67.5 | 225.0 | 12.2 | 0.8382 |
| 67.5 | 255.0 | 14.5 | 0.9104 |
| 67.5 | 285.0 | 14.41 | 1.096 |
| 67.5 | 315.0 | 8.296 | 1.703 |
| 82.5 | 45.0 | 14.08 | 6.987 |
| 82.5 | 75.0 | 11.63 | 0.5938 |
| 82.5 | 105.0 | 12.79 | 0.6697 |
| 82.5 | 135.0 | 10.38 | 0.7755 |
| 82.5 | 165.0 | 7.48 | 0.5846 |
| 82.5 | 195.0 | 8.783 | 0.6745 |
| 82.5 | 225.0 | 11.53 | 0.911 |
| 82.5 | 255.0 | 13.25 | 0.7378 |
| 82.5 | 285.0 | 11.33 | 0.5726 |
| 82.5 | 315.0 | 7.455 | 1.16 |
| 97.5 | 15.0 | 5.698 | 0.7492 |
| 97.5 | 45.0 | 8.801 | 0.6758 |
| 97.5 | 75.0 | 11.01 | 0.6811 |
| 97.5 | 105.0 | 11.43 | 0.6236 |
| 97.5 | 135.0 | 9.242 | 0.7159 |
| 97.5 | 165.0 | 7.099 | 0.4699 |
| 97.5 | 195.0 | 6.952 | 0.4859 |
| 97.5 | 225.0 | 11.51 | 0.8388 |
| 97.5 | 255.0 | 14.65 | 0.7593 |
| 97.5 | 285.0 | 10.44 | 0.6484 |
| 97.5 | 315.0 | 8.655 | 0.664 |
| 97.5 | 345.0 | 3.901 | 0.6092 |
| 112.5 | 15.0 | 7.727 | 3.478 |
| 112.5 | 45.0 | 9.189 | 0.6299 |
| 112.5 | 75.0 | 12.07 | 0.9024 |
| 112.5 | 105.0 | 10.85 | 0.6667 |
| 112.5 | 135.0 | 7.102 | 0.6142 |
| 112.5 | 165.0 | 4.702 | 0.4357 |
| 112.5 | 195.0 | 5.354 | 0.5094 |
| 112.5 | 225.0 | 8.096 | 0.6287 |
| 112.5 | 255.0 | 10.81 | 0.5993 |
| 112.5 | 285.0 | 10.4 | 0.7956 |
| 112.5 | 315.0 | 8.266 | 0.5861 |
| 112.5 | 345.0 | 5.038 | 0.8373 |
| 127.5 | 15.0 | 6.977 | 0.8558 |
| 127.5 | 45.0 | 7.358 | 0.607 |
| 127.5 | 75.0 | 9.152 | 0.7735 |
| 127.5 | 105.0 | 8.807 | 0.6727 |
| 127.5 | 135.0 | 5.712 | 0.5863 |
| 127.5 | 165.0 | 4.31 | 0.5731 |
| 127.5 | 195.0 | 5.163 | 0.7738 |
| 127.5 | 225.0 | 6.853 | 0.673 |
| 127.5 | 255.0 | 8.647 | 0.6431 |
| 127.5 | 285.0 | 9.866 | 0.796 |
| 127.5 | 315.0 | 7.886 | 0.6596 |
| 127.5 | 345.0 | 5.722 | 0.8043 |
| 142.5 | 15.0 | 5.785 | 0.7584 |
| 142.5 | 45.0 | 5.029 | 0.5646 |
| 142.5 | 75.0 | 6.237 | 0.7914 |
| 142.5 | 105.0 | 8.636 | 1.095 |
| 142.5 | 255.0 | 7.126 | 0.9307 |
| 142.5 | 285.0 | 6.821 | 0.7623 |
| 142.5 | 315.0 | 6.894 | 0.8433 |
| 142.5 | 345.0 | 5.164 | 0.6964 |
| 157.5 | 15.0 | 10.68 | 3.422 |
| 157.5 | 315.0 | 6.29 | 1.962 |
| 157.5 | 345.0 | 7.382 | 1.732 |
Measurement comment:
Experiment comment:
