Measurement E9M150
| Experiment: | E-89-037 Electroproduction of the P33(1232) Resonance | |
|---|---|---|
| Year: | 2002 | |
| Spokespersons: | V. Burkert, R. Minehart | |
| Reaction: | ep → π0p | |
| Polarization: | none | |
| Quantity: | dσ/dΩ | |
| Q2: | 0.8 — 1.0 GeV2 | |
| W: | 1.1 GeV | |
| ε: | 0.679 | |
| Publication: |
K. Joo, L. C. Smith, V. D. Burkert, R. Minehart, I. G. Aznauryan, L. Elouadrhiri, S. Stepanyan, and CLAS Collaboration Q2 Dependence of Quadrupole Strength in the γ*p --> Δ+(1232) --> pπ0 Transition //
Phys. Rev. Let. 88, 122001 (2002)
|
|

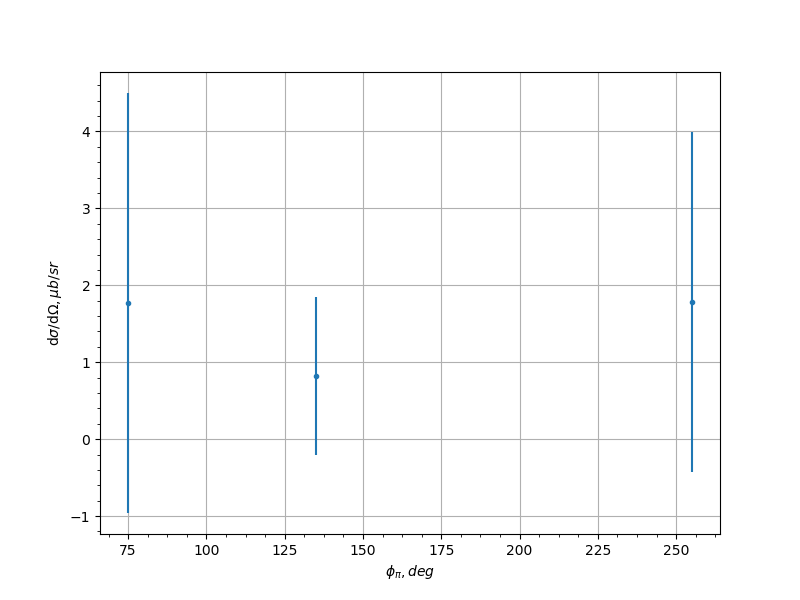

| cos(θπ) | φπ, [deg] | dσ/dΩ, [μb/sr] | uncertainty | syst. uncert. |
|---|---|---|---|---|
| -0.9 | 75.0 | 1.77 | 2.73 | None |
| -0.9 | 135.0 | 0.819 | 1.03 | None |
| -0.9 | 255.0 | 1.78 | 2.21 | None |
| -0.7 | 75.0 | 0.0254 | 0.0268 | None |
| -0.7 | 105.0 | 0.159 | 0.148 | None |
| -0.7 | 135.0 | 2.8 | 2.22 | None |
| -0.7 | 165.0 | 2.92 | 2.05 | None |
| -0.7 | 195.0 | 1.47 | 1.37 | None |
| -0.7 | 225.0 | 0.194 | 0.134 | None |
| -0.7 | 255.0 | 0.232 | 0.289 | None |
| -0.5 | 75.0 | 2.8 | 2.76 | None |
| -0.5 | 135.0 | 0.313 | 0.285 | None |
| -0.5 | 165.0 | 0.777 | 0.69 | None |
| -0.5 | 195.0 | 0.526 | 0.464 | None |
| -0.5 | 225.0 | 0.842 | 0.992 | None |
| -0.5 | 285.0 | 0.795 | 1.17 | None |
| -0.3 | 75.0 | 1.7 | 2.08 | None |
| -0.3 | 135.0 | 2.41 | 1.61 | None |
| -0.3 | 165.0 | 1.0 | 0.766 | None |
| -0.3 | 195.0 | 1.19 | 0.842 | None |
| -0.3 | 225.0 | 0.696 | 0.507 | None |
| -0.3 | 255.0 | 0.853 | 0.764 | None |
| -0.1 | 15.0 | 0.0644 | 0.0741 | None |
| -0.1 | 45.0 | 0.687 | 0.604 | None |
| -0.1 | 75.0 | 0.833 | 0.785 | None |
| -0.1 | 105.0 | 2.32 | 1.91 | None |
| -0.1 | 135.0 | 0.452 | 0.239 | None |
| -0.1 | 165.0 | 0.928 | 0.675 | None |
| -0.1 | 195.0 | 0.677 | 0.534 | None |
| -0.1 | 225.0 | 0.627 | 0.513 | None |
| -0.1 | 255.0 | 0.861 | 0.804 | None |
| -0.1 | 315.0 | 0.529 | 0.549 | None |
| -0.1 | 345.0 | 0.194 | 0.133 | None |
| 0.1 | 15.0 | 0.575 | 0.47 | None |
| 0.1 | 45.0 | 0.283 | 0.276 | None |
| 0.1 | 75.0 | 0.227 | 0.159 | None |
| 0.1 | 105.0 | 4.17 | 4.9 | None |
| 0.1 | 135.0 | 0.65 | 0.784 | None |
| 0.1 | 165.0 | 3.54 | 3.0 | None |
| 0.1 | 195.0 | 0.592 | 0.373 | None |
| 0.1 | 225.0 | 3.96 | 3.68 | None |
| 0.1 | 255.0 | 1.59 | 1.89 | None |
| 0.1 | 285.0 | 1.84 | 1.89 | None |
| 0.1 | 315.0 | 0.126 | 0.15 | None |
| 0.1 | 345.0 | 1.65 | 1.57 | None |
| 0.3 | 45.0 | 0.183 | 0.178 | None |
| 0.3 | 105.0 | 0.111 | 0.0903 | None |
| 0.3 | 135.0 | 1.55 | 1.04 | None |
| 0.3 | 165.0 | 3.95 | 2.64 | None |
| 0.3 | 195.0 | 1.03 | 0.673 | None |
| 0.3 | 225.0 | 1.48 | 1.28 | None |
| 0.3 | 255.0 | 0.743 | 0.541 | None |
| 0.3 | 285.0 | 0.455 | 0.309 | None |
| 0.3 | 315.0 | 1.68 | 1.97 | None |
| 0.5 | 15.0 | 0.471 | 0.469 | None |
| 0.5 | 45.0 | 4.39 | 3.89 | None |
| 0.5 | 75.0 | 3.62 | 3.01 | None |
| 0.5 | 105.0 | 2.91 | 2.15 | None |
| 0.5 | 135.0 | 1.98 | 1.57 | None |
| 0.5 | 165.0 | 0.277 | 0.179 | None |
| 0.5 | 195.0 | 0.48 | 0.336 | None |
| 0.5 | 225.0 | 0.821 | 0.516 | None |
| 0.5 | 255.0 | 5.94 | 4.47 | None |
| 0.5 | 315.0 | 4.03 | 5.1 | None |
| 0.7 | 45.0 | 0.1 | 0.108 | None |
| 0.7 | 75.0 | 4.37 | 4.18 | None |
| 0.7 | 105.0 | 0.243 | 0.269 | None |
| 0.7 | 135.0 | 0.109 | 0.119 | None |
| 0.7 | 165.0 | 0.448 | 0.295 | None |
| 0.7 | 195.0 | 0.761 | 0.608 | None |
| 0.7 | 225.0 | 0.205 | 0.157 | None |
| 0.7 | 255.0 | 1.77 | 1.32 | None |
| 0.7 | 285.0 | 0.118 | 0.0721 | None |
| 0.7 | 315.0 | 0.11 | 0.0911 | None |
| 0.7 | 345.0 | 2.42 | 2.07 | None |
| 0.9 | 45.0 | 0.922 | 1.32 | None |
| 0.9 | 75.0 | 0.292 | 0.224 | None |
| 0.9 | 135.0 | 0.293 | 0.213 | None |
| 0.9 | 165.0 | 8.62 | 7.59 | None |
| 0.9 | 195.0 | 3.01 | 1.94 | None |
| 0.9 | 225.0 | 6.49 | 5.22 | None |
| 0.9 | 255.0 | 0.336 | 0.368 | None |
| 0.9 | 315.0 | 1.0 | 1.17 | None |
| 0.9 | 345.0 | 0.531 | 0.577 | None |
Experiment comment:
