Measurement E9M196
| Experiment: | E-89-037 Electroproduction of the P33(1232) Resonance | |
|---|---|---|
| Year: | 2002 | |
| Spokespersons: | V. Burkert, R. Minehart | |
| Reaction: | ep → π0p | |
| Polarization: | none | |
| Quantity: | dσ/dΩ | |
| Q2: | 0.7 — 0.8 GeV2 | |
| W: | 1.14 GeV | |
| ε: | 0.882 | |
| Publication: |
K. Joo, L. C. Smith, V. D. Burkert, R. Minehart, I. G. Aznauryan, L. Elouadrhiri, S. Stepanyan, and CLAS Collaboration Q2 Dependence of Quadrupole Strength in the γ*p --> Δ+(1232) --> pπ0 Transition //
Phys. Rev. Let. 88, 122001 (2002)
|
|

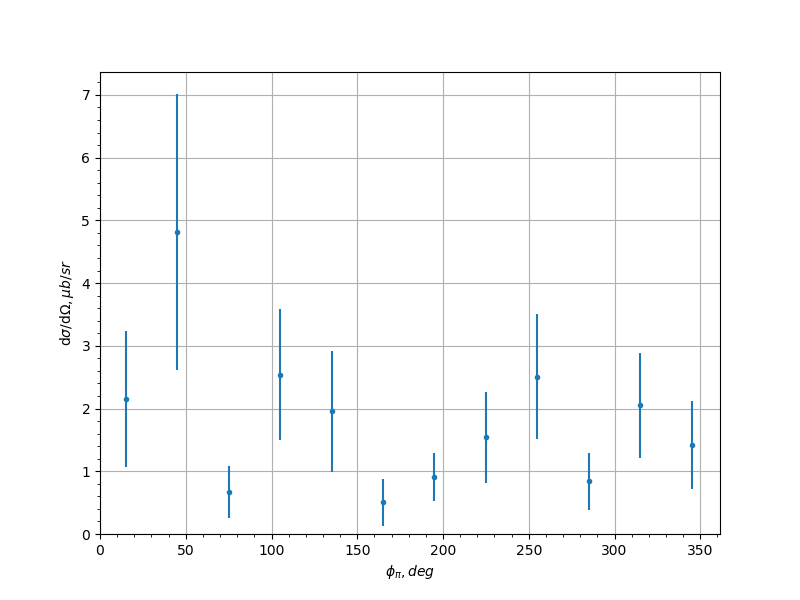

| cos(θπ) | φπ, [deg] | dσ/dΩ, [μb/sr] | uncertainty | syst. uncert. |
|---|---|---|---|---|
| -0.9 | 15.0 | 2.15 | 1.08 | 0.7945 |
| -0.9 | 45.0 | 4.82 | 2.2 | 2.1648 |
| -0.9 | 75.0 | 0.676 | 0.414 | 0.2683 |
| -0.9 | 105.0 | 2.54 | 1.04 | 0.7839 |
| -0.9 | 135.0 | 1.96 | 0.964 | 0.328 |
| -0.9 | 165.0 | 0.507 | 0.376 | 0.1998 |
| -0.9 | 195.0 | 0.906 | 0.379 | 0.2939 |
| -0.9 | 225.0 | 1.54 | 0.727 | 0.3392 |
| -0.9 | 255.0 | 2.51 | 1.0 | 0.8974 |
| -0.9 | 285.0 | 0.837 | 0.449 | 0.1502 |
| -0.9 | 315.0 | 2.05 | 0.843 | 1.3251 |
| -0.9 | 345.0 | 1.42 | 0.702 | 0.4711 |
| -0.7 | 15.0 | 0.53 | 0.285 | 0.3427 |
| -0.7 | 45.0 | 1.97 | 0.776 | 0.8891 |
| -0.7 | 75.0 | 2.78 | 1.03 | 0.8505 |
| -0.7 | 105.0 | 3.38 | 1.09 | 0.6608 |
| -0.7 | 135.0 | 3.44 | 1.2 | 0.3242 |
| -0.7 | 165.0 | 1.57 | 0.616 | 0.4855 |
| -0.7 | 195.0 | 5.59 | 1.94 | 1.5967 |
| -0.7 | 225.0 | 2.61 | 0.872 | 0.514 |
| -0.7 | 255.0 | 4.83 | 1.66 | 1.6626 |
| -0.7 | 285.0 | 2.39 | 0.842 | 0.5745 |
| -0.7 | 315.0 | 1.01 | 0.452 | 0.4507 |
| -0.7 | 345.0 | 1.82 | 0.648 | 0.4004 |
| -0.5 | 15.0 | 1.45 | 0.582 | 0.1254 |
| -0.5 | 45.0 | 2.09 | 0.577 | 0.2799 |
| -0.5 | 75.0 | 1.72 | 0.559 | 0.5592 |
| -0.5 | 105.0 | 2.99 | 0.914 | 1.4787 |
| -0.5 | 135.0 | 3.85 | 1.2 | 0.337 |
| -0.5 | 165.0 | 2.77 | 0.853 | 0.6255 |
| -0.5 | 195.0 | 2.07 | 0.758 | 0.3728 |
| -0.5 | 225.0 | 5.14 | 1.61 | 1.6683 |
| -0.5 | 255.0 | 4.17 | 1.16 | 0.7145 |
| -0.5 | 285.0 | 1.89 | 0.632 | 0.3934 |
| -0.5 | 315.0 | 1.14 | 0.482 | 0.0896 |
| -0.5 | 345.0 | 2.19 | 0.829 | 0.2902 |
| -0.3 | 15.0 | 1.66 | 0.707 | 0.2524 |
| -0.3 | 45.0 | 1.94 | 0.642 | 0.6484 |
| -0.3 | 75.0 | 3.48 | 0.945 | 0.6556 |
| -0.3 | 105.0 | 7.7 | 1.77 | 2.2147 |
| -0.3 | 135.0 | 3.56 | 0.983 | 0.5752 |
| -0.3 | 165.0 | 4.11 | 1.17 | 0.4737 |
| -0.3 | 195.0 | 2.36 | 0.781 | 0.2836 |
| -0.3 | 225.0 | 3.7 | 1.11 | 0.7262 |
| -0.3 | 255.0 | 2.69 | 0.772 | 0.3783 |
| -0.3 | 285.0 | 1.85 | 0.589 | 0.2414 |
| -0.3 | 315.0 | 1.87 | 0.74 | 0.6242 |
| -0.3 | 345.0 | 2.51 | 0.756 | 1.1399 |
| -0.1 | 15.0 | 1.04 | 0.424 | 0.6535 |
| -0.1 | 45.0 | 1.56 | 0.549 | 0.1453 |
| -0.1 | 75.0 | 4.58 | 1.2 | 0.3775 |
| -0.1 | 105.0 | 1.28 | 0.483 | 0.3089 |
| -0.1 | 135.0 | 4.39 | 1.03 | 0.6591 |
| -0.1 | 165.0 | 3.72 | 1.01 | 0.6819 |
| -0.1 | 195.0 | 3.59 | 1.0 | 0.1726 |
| -0.1 | 225.0 | 2.81 | 0.861 | 0.7029 |
| -0.1 | 255.0 | 3.46 | 0.991 | 0.9502 |
| -0.1 | 285.0 | 3.79 | 1.08 | 0.1996 |
| -0.1 | 315.0 | 3.08 | 0.881 | 0.4581 |
| -0.1 | 345.0 | 3.66 | 1.08 | 0.3716 |
| 0.1 | 15.0 | 2.23 | 0.79 | 0.4125 |
| 0.1 | 45.0 | 1.89 | 0.679 | 0.3332 |
| 0.1 | 75.0 | 1.37 | 0.47 | 0.5832 |
| 0.1 | 105.0 | 4.29 | 1.09 | 0.4906 |
| 0.1 | 135.0 | 5.62 | 1.25 | 0.8817 |
| 0.1 | 165.0 | 5.93 | 1.54 | 0.8952 |
| 0.1 | 195.0 | 5.75 | 1.36 | 0.9865 |
| 0.1 | 225.0 | 4.01 | 0.988 | 0.4139 |
| 0.1 | 255.0 | 2.94 | 0.905 | 0.6219 |
| 0.1 | 285.0 | 2.54 | 0.694 | 0.4134 |
| 0.1 | 315.0 | 1.43 | 0.529 | 0.1647 |
| 0.1 | 345.0 | 4.1 | 1.34 | 0.3118 |
| 0.3 | 15.0 | 1.7 | 0.526 | 0.7951 |
| 0.3 | 45.0 | 1.05 | 0.404 | 0.1198 |
| 0.3 | 75.0 | 4.01 | 1.12 | 0.1026 |
| 0.3 | 105.0 | 1.3 | 0.46 | 0.3819 |
| 0.3 | 135.0 | 3.07 | 0.828 | 0.2932 |
| 0.3 | 165.0 | 3.79 | 0.986 | 0.9248 |
| 0.3 | 195.0 | 4.38 | 1.09 | 0.6587 |
| 0.3 | 225.0 | 4.11 | 1.02 | 0.4197 |
| 0.3 | 255.0 | 3.98 | 1.09 | 0.6728 |
| 0.3 | 285.0 | 4.68 | 1.22 | 0.6798 |
| 0.3 | 315.0 | 3.38 | 0.963 | 0.3021 |
| 0.3 | 345.0 | 2.15 | 0.657 | 1.0756 |
| 0.5 | 15.0 | 1.4 | 0.446 | 0.273 |
| 0.5 | 45.0 | 3.37 | 0.985 | 0.1202 |
| 0.5 | 75.0 | 4.69 | 1.23 | 0.2969 |
| 0.5 | 105.0 | 4.37 | 1.15 | 0.2663 |
| 0.5 | 135.0 | 5.39 | 1.52 | 1.1181 |
| 0.5 | 165.0 | 2.95 | 0.766 | 0.5375 |
| 0.5 | 195.0 | 3.68 | 1.02 | 0.422 |
| 0.5 | 225.0 | 2.34 | 0.733 | 0.085 |
| 0.5 | 255.0 | 3.79 | 0.986 | 0.2622 |
| 0.5 | 285.0 | 3.63 | 1.0 | 0.6338 |
| 0.5 | 315.0 | 0.821 | 0.333 | 0.7384 |
| 0.5 | 345.0 | 1.71 | 0.668 | 0.3131 |
| 0.7 | 15.0 | 2.28 | 0.68 | 0.2403 |
| 0.7 | 45.0 | 3.58 | 1.06 | 0.5283 |
| 0.7 | 75.0 | 4.46 | 1.16 | 0.6756 |
| 0.7 | 105.0 | 6.26 | 1.52 | 0.9437 |
| 0.7 | 135.0 | 3.32 | 0.907 | 0.6027 |
| 0.7 | 165.0 | 5.58 | 1.56 | 0.9356 |
| 0.7 | 195.0 | 5.67 | 1.35 | 0.5457 |
| 0.7 | 225.0 | 3.99 | 1.09 | 0.6238 |
| 0.7 | 255.0 | 3.51 | 0.951 | 0.4356 |
| 0.7 | 285.0 | 3.78 | 0.974 | 0.4607 |
| 0.7 | 315.0 | 3.3 | 0.835 | 0.2873 |
| 0.7 | 345.0 | 2.26 | 0.759 | 0.2577 |
| 0.9 | 15.0 | 3.07 | 1.12 | 2.0201 |
| 0.9 | 45.0 | 1.52 | 0.635 | 0.541 |
| 0.9 | 75.0 | 1.99 | 0.836 | 1.2718 |
| 0.9 | 105.0 | 3.49 | 1.14 | 0.5955 |
| 0.9 | 135.0 | 5.65 | 1.62 | 0.5602 |
| 0.9 | 165.0 | 7.65 | 2.17 | 2.2633 |
| 0.9 | 195.0 | 4.49 | 1.67 | 1.0291 |
| 0.9 | 225.0 | 3.71 | 1.19 | 0.217 |
| 0.9 | 255.0 | 4.41 | 1.3 | 0.4748 |
| 0.9 | 285.0 | 4.54 | 1.26 | 0.3957 |
| 0.9 | 315.0 | 3.42 | 1.24 | 0.7416 |
| 0.9 | 345.0 | 1.94 | 0.657 | 1.3322 |
Experiment comment:
