Measurement E9M211

Experiment: E-89-037 Electroproduction of the P33(1232) Resonance
Year: 2002

Experiment comment:

Release 1 - Data replay: recsis prod-1-9. RC and acceptance: aao_rad+MAID98
Spokespersons: V. Burkert, R. Minehart
Reaction: ep → π0p
Polarization: none
Quantity: dσ/dΩ
Q2: 0.7 — 0.8 GeV2
W: 1.44 GeV
ε: 0.781
Publication:
K. Joo, L. C. Smith, V. D. Burkert, R. Minehart, I. G. Aznauryan, L. Elouadrhiri, S. Stepanyan, and CLAS Collaboration Q2 Dependence of Quadrupole Strength in the γ*p --> Δ+(1232) --> pπ0 Transition // Phys. Rev. Let. 88, 122001 (2002)

Slice: cos(θπ) = dimensionless

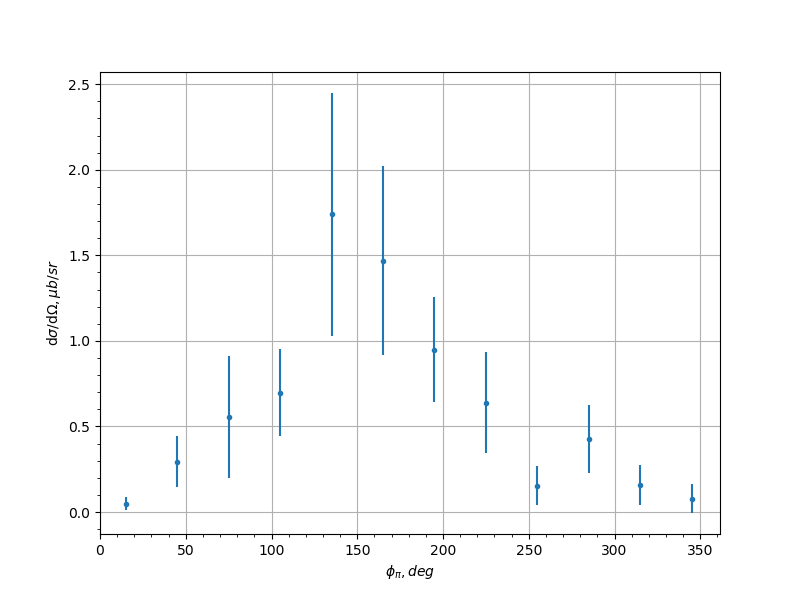

Measurement data
cos(θπ) φπ, [deg] dσ/dΩ, [μb/sr] uncertainty syst. uncert.
-0.9 15.0 0.0491 0.0366 0.0027
-0.9 45.0 0.295 0.15 0.1452
-0.9 75.0 0.555 0.357 0.2166
-0.9 105.0 0.697 0.254 1.3264
-0.9 135.0 1.74 0.709 0.4162
-0.9 165.0 1.47 0.55 0.5241
-0.9 195.0 0.949 0.306 0.1636
-0.9 225.0 0.64 0.294 0.1053
-0.9 255.0 0.154 0.115 0.2146
-0.9 285.0 0.427 0.199 0.2762
-0.9 315.0 0.157 0.118 0.0392
-0.9 345.0 0.078 0.0836 0.0275
-0.7 15.0 0.825 0.382 0.2977
-0.7 45.0 0.431 0.231 0.1142
-0.7 75.0 1.37 0.487 0.3129
-0.7 105.0 1.01 0.454 0.3628
-0.7 135.0 0.841 0.541 0.2856
-0.7 165.0 0.801 0.299 0.4308
-0.7 195.0 1.25 0.371 0.2753
-0.7 225.0 2.33 1.58 2.9308
-0.7 255.0 3.36 1.35 0.7874
-0.7 285.0 0.996 0.497 0.0765
-0.7 315.0 1.09 0.405 0.2314
-0.7 345.0 0.188 0.114 0.0494
-0.5 15.0 1.54 0.386 0.4631
-0.5 45.0 0.801 0.251 0.3387
-0.5 75.0 1.27 0.621 0.2662
-0.5 105.0 1.23 0.596 0.5829
-0.5 135.0 8.09 5.44 3.2553
-0.5 165.0 1.72 0.838 0.1883
-0.5 195.0 2.21 1.17 0.5041
-0.5 225.0 8.14 6.66 2.6641
-0.5 255.0 0.989 0.737 0.4473
-0.5 285.0 1.12 0.535 0.0809
-0.5 315.0 1.29 0.401 0.1312
-0.5 345.0 0.838 0.246 0.0615
-0.3 15.0 1.2 0.266 0.1739
-0.3 45.0 1.79 0.463 0.1818
-0.3 75.0 2.75 0.935 0.5199
-0.3 105.0 4.32 1.12 0.6868
-0.3 135.0 3.47 1.05 0.5668
-0.3 225.0 2.39 0.825 0.5786
-0.3 255.0 1.66 0.466 0.2937
-0.3 285.0 1.34 0.51 0.1899
-0.3 315.0 0.84 0.248 0.2147
-0.3 345.0 1.37 0.323 0.2613
-0.1 15.0 1.21 0.378 0.0854
-0.1 45.0 1.64 0.438 0.1264
-0.1 75.0 2.23 0.741 0.6652
-0.1 105.0 3.76 0.851 0.7924
-0.1 135.0 2.02 0.485 0.3315
-0.1 165.0 1.1 1.23 0.9556
-0.1 195.0 6.8 6.22 2.8426
-0.1 225.0 3.48 0.746 0.6574
-0.1 255.0 2.18 0.456 0.4078
-0.1 285.0 2.39 0.789 0.244
-0.1 315.0 1.07 0.347 0.1008
-0.1 345.0 1.3 0.349 0.2261
0.1 15.0 1.23 0.345 0.1378
0.1 45.0 2.28 0.619 0.1776
0.1 75.0 2.57 0.706 0.3048
0.1 105.0 2.2 0.497 0.1254
0.1 135.0 2.24 0.476 0.1883
0.1 165.0 1.25 0.804 0.4675
0.1 195.0 3.34 2.17 1.1007
0.1 225.0 2.83 0.582 0.2609
0.1 255.0 3.11 0.67 0.3133
0.1 285.0 1.94 0.62 0.2686
0.1 315.0 1.39 0.372 0.1178
0.1 345.0 1.51 0.391 0.0718
0.3 15.0 0.775 0.239 0.0936
0.3 45.0 1.62 0.453 0.223
0.3 75.0 2.51 0.642 0.1526
0.3 105.0 2.15 0.49 0.2513
0.3 135.0 2.06 0.526 0.1489
0.3 165.0 1.07 0.838 0.3519
0.3 195.0 0.921 0.459 0.7316
0.3 225.0 1.76 0.442 0.2418
0.3 255.0 2.52 0.558 0.3654
0.3 285.0 2.38 0.575 1.2597
0.3 315.0 2.88 0.876 0.5954
0.3 345.0 1.83 0.516 0.2008
0.5 15.0 2.24 0.68 0.397
0.5 45.0 0.887 0.347 0.0578
0.5 75.0 1.1 0.391 0.0958
0.5 105.0 2.08 0.498 0.319
0.5 135.0 1.8 0.475 0.2171
0.5 165.0 2.28 2.08 0.9063
0.5 195.0 2.27 1.14 0.5522
0.5 225.0 2.16 0.547 0.169
0.5 255.0 1.05 0.296 0.1022
0.5 285.0 1.38 0.411 0.1612
0.5 315.0 1.28 0.359 0.1929
0.5 345.0 1.0 0.315 0.0502
0.7 15.0 1.06 0.295 0.1175
0.7 45.0 1.18 0.457 0.11
0.7 75.0 1.09 0.394 0.203
0.7 105.0 0.742 0.255 0.2373
0.7 135.0 1.56 0.503 0.2234
0.7 195.0 7.08 8.69 4.3863
0.7 225.0 0.721 0.229 0.1912
0.7 255.0 1.47 0.397 0.1849
0.7 285.0 0.961 0.419 0.1663
0.7 315.0 0.798 0.377 0.2384
0.7 345.0 2.5 0.812 0.7349
0.9 15.0 0.731 0.303 0.3386
0.9 45.0 0.9 0.443 0.2568
0.9 75.0 0.306 0.178 0.053
0.9 105.0 0.645 0.305 0.4186
0.9 135.0 2.12 1.11 0.7758
0.9 225.0 0.79 0.479 0.3262
0.9 255.0 0.808 0.367 0.2071
0.9 285.0 0.572 0.325 0.264
0.9 315.0 1.85 0.916 0.8268
0.9 345.0 1.88 0.986 0.7842
