Measurement E9M219

Experiment: E-89-037 Electroproduction of the P33(1232) Resonance
Year: 2002

Experiment comment:

Release 1 - Data replay: recsis prod-1-9. RC and acceptance: aao_rad+MAID98
Spokespersons: V. Burkert, R. Minehart
Reaction: ep → π0p
Polarization: none
Quantity: dσ/dΩ
Q2: 0.7 — 0.8 GeV2
W: 1.6 GeV
ε: 0.684
Publication:
K. Joo, L. C. Smith, V. D. Burkert, R. Minehart, I. G. Aznauryan, L. Elouadrhiri, S. Stepanyan, and CLAS Collaboration Q2 Dependence of Quadrupole Strength in the γ*p --> Δ+(1232) --> pπ0 Transition // Phys. Rev. Let. 88, 122001 (2002)

Slice: cos(θπ) = dimensionless

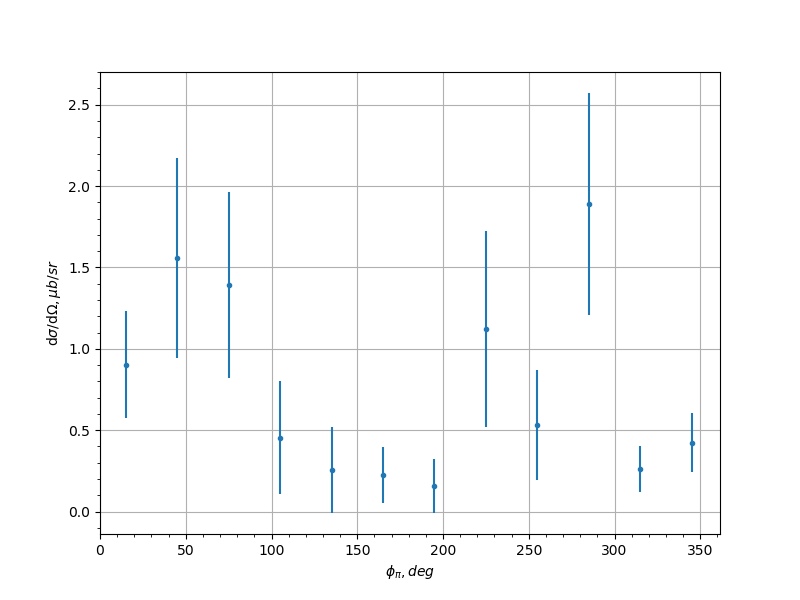

Measurement data
cos(θπ) φπ, [deg] dσ/dΩ, [μb/sr] uncertainty syst. uncert.
-0.9 15.0 0.903 0.327 0.2249
-0.9 45.0 1.56 0.614 0.4639
-0.9 75.0 1.39 0.572 0.2855
-0.9 105.0 0.454 0.347 0.1943
-0.9 135.0 0.254 0.263 0.0214
-0.9 165.0 0.225 0.17 0.1118
-0.9 195.0 0.157 0.164 0.0344
-0.9 225.0 1.12 0.601 4.8992
-0.9 255.0 0.532 0.339 0.2802
-0.9 285.0 1.89 0.682 0.4253
-0.9 315.0 0.263 0.14 0.1777
-0.9 345.0 0.424 0.181 0.0972
-0.7 15.0 0.654 0.205 0.3372
-0.7 45.0 0.445 0.176 0.081
-0.7 75.0 0.523 0.395 0.2936
-0.7 105.0 0.629 0.507 0.3416
-0.7 135.0 2.54 1.95 1.3447
-0.7 195.0 2.43 3.44 0.8592
-0.7 225.0 1.26 1.02 0.4748
-0.7 255.0 0.42 0.23 0.2304
-0.7 285.0 1.32 0.783 0.4662
-0.7 315.0 0.66 0.265 0.2215
-0.7 345.0 0.496 0.166 0.0453
-0.5 15.0 0.889 0.248 0.2522
-0.5 45.0 0.445 0.188 0.2297
-0.5 75.0 0.887 0.498 0.4539
-0.5 105.0 0.886 0.341 0.0789
-0.5 135.0 0.586 0.235 0.21
-0.5 195.0 2.81 3.97 1.8836
-0.5 225.0 1.01 0.333 0.2428
-0.5 255.0 0.684 0.243 0.1236
-0.5 285.0 0.303 0.163 0.0384
-0.5 315.0 0.301 0.161 0.0483
-0.5 345.0 0.862 0.252 0.3866
-0.3 15.0 1.05 0.327 0.211
-0.3 45.0 0.296 0.142 0.0858
-0.3 75.0 1.4 0.458 0.1556
-0.3 105.0 1.51 0.373 0.3032
-0.3 135.0 0.96 0.301 0.0795
-0.3 225.0 1.16 0.43 0.1794
-0.3 255.0 1.75 0.449 0.2509
-0.3 285.0 3.62 1.37 1.191
-0.3 315.0 1.26 0.422 0.2086
-0.3 345.0 0.919 0.249 0.0861
-0.1 15.0 0.44 0.27 0.1169
-0.1 45.0 1.47 0.616 0.3243
-0.1 75.0 0.632 0.217 0.0758
-0.1 105.0 0.843 0.214 0.1422
-0.1 135.0 1.18 0.608 0.3265
-0.1 225.0 1.5 0.482 0.3228
-0.1 255.0 1.42 0.362 0.1771
-0.1 285.0 1.5 0.48 0.2311
-0.1 315.0 0.62 0.272 0.115
-0.1 345.0 0.744 0.345 0.0857
0.1 15.0 2.38 1.06 0.594
0.1 45.0 1.2 0.383 0.0934
0.1 75.0 1.65 0.397 0.2194
0.1 105.0 1.56 0.373 0.239
0.1 135.0 2.18 0.966 0.4749
0.1 165.0 0.805 0.463 1.1261
0.1 225.0 2.89 1.21 0.316
0.1 255.0 1.53 0.357 0.1756
0.1 285.0 1.19 0.312 0.0474
0.1 315.0 1.08 0.475 0.1158
0.1 345.0 0.853 0.445 0.0755
0.3 15.0 2.06 0.901 0.48
0.3 45.0 0.219 0.131 0.0826
0.3 75.0 0.688 0.195 0.058
0.3 105.0 0.99 0.275 0.1145
0.3 135.0 2.53 1.41 0.6126
0.3 165.0 0.932 0.543 0.1174
0.3 195.0 8.59 5.71 3.3339
0.3 225.0 0.718 0.316 0.3911
0.3 255.0 1.07 0.303 0.1325
0.3 285.0 1.11 0.28 0.1319
0.3 315.0 0.891 0.336 0.0254
0.3 345.0 0.398 0.313 0.1795
0.5 15.0 1.05 0.485 0.0873
0.5 45.0 1.21 0.512 0.3637
0.5 75.0 0.948 0.269 0.0593
0.5 105.0 0.537 0.185 0.1572
0.5 135.0 3.68 1.77 1.0491
0.5 165.0 2.2 1.17 0.316
0.5 195.0 2.24 1.22 0.709
0.5 225.0 1.54 0.659 0.2763
0.5 255.0 1.43 0.461 0.4756
0.5 285.0 0.711 0.208 0.0372
0.5 315.0 1.53 0.599 0.3427
0.5 345.0 0.0959 0.0993 0.0127
0.7 15.0 0.83 0.319 0.2275
0.7 45.0 0.765 0.404 0.141
0.7 75.0 0.642 0.206 0.0932
0.7 105.0 0.933 0.35 0.1243
0.7 135.0 0.575 0.338 0.1032
0.7 165.0 0.656 0.431 0.2116
0.7 195.0 1.52 0.754 0.3591
0.7 225.0 0.706 0.395 0.1962
0.7 255.0 0.284 0.135 0.0711
0.7 285.0 0.711 0.233 0.1636
0.7 315.0 0.304 0.151 0.228
0.7 345.0 0.336 0.131 0.2101
0.9 15.0 0.214 0.166 0.1488
0.9 45.0 0.301 0.19 0.1549
0.9 75.0 0.878 0.312 0.1877
0.9 105.0 0.977 0.326 0.1098
0.9 135.0 1.7 1.08 0.5207
0.9 225.0 0.664 0.441 0.1193
0.9 255.0 0.398 0.179 0.1138
0.9 285.0 0.581 0.204 0.0743
0.9 315.0 1.54 0.771 0.6138
0.9 345.0 0.853 0.414 0.1533
