Measurement E9M269

Experiment: E-89-037 Electroproduction of the P33(1232) Resonance
Year: 2002

Experiment comment:

Release 1 - Data replay: recsis prod-1-9. RC and acceptance: aao_rad+MAID98
Spokespersons: V. Burkert, R. Minehart
Reaction: ep → π0p
Polarization: none
Quantity: dσ/dΩ
Q2: 1.0 — 1.3 GeV2
W: 1.4 GeV
ε: 0.685
Publication:
K. Joo, L. C. Smith, V. D. Burkert, R. Minehart, I. G. Aznauryan, L. Elouadrhiri, S. Stepanyan, and CLAS Collaboration Q2 Dependence of Quadrupole Strength in the γ*p --> Δ+(1232) --> pπ0 Transition // Phys. Rev. Let. 88, 122001 (2002)

Slice: cos(θπ) = dimensionless

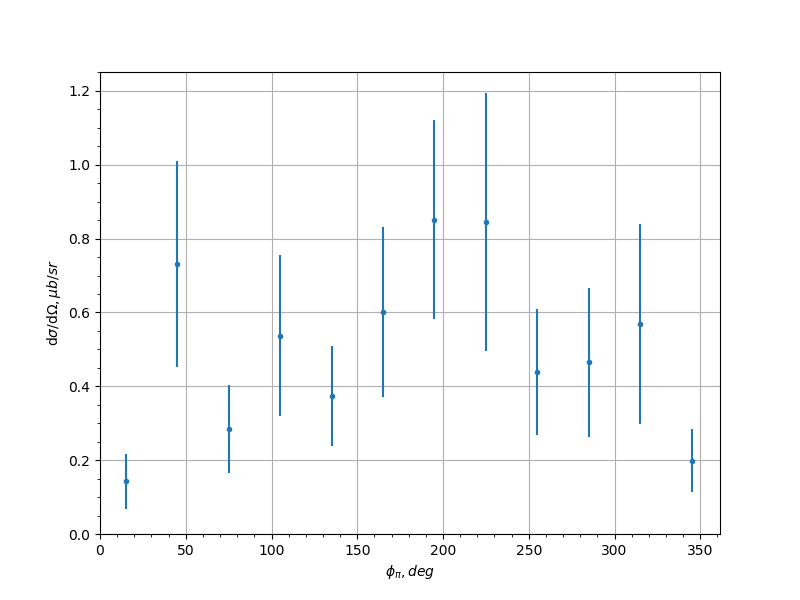

Measurement data
cos(θπ) φπ, [deg] dσ/dΩ, [μb/sr] uncertainty syst. uncert.
-0.9 15.0 0.143 0.075 0.0284
-0.9 45.0 0.732 0.279 0.2037
-0.9 75.0 0.285 0.119 0.0455
-0.9 105.0 0.537 0.218 0.1343
-0.9 135.0 0.374 0.135 0.4495
-0.9 165.0 0.601 0.231 0.1457
-0.9 195.0 0.851 0.27 0.3019
-0.9 225.0 0.846 0.349 0.1954
-0.9 255.0 0.439 0.171 0.1084
-0.9 285.0 0.465 0.201 0.1429
-0.9 315.0 0.57 0.271 0.2191
-0.9 345.0 0.199 0.0844 0.0247
-0.7 15.0 0.523 0.18 0.1402
-0.7 45.0 0.378 0.107 0.1448
-0.7 75.0 0.353 0.137 0.0932
-0.7 105.0 1.02 0.334 0.2533
-0.7 135.0 1.3 0.508 0.3302
-0.7 165.0 0.928 0.275 0.1621
-0.7 195.0 0.768 0.215 0.2326
-0.7 225.0 1.21 0.377 0.0995
-0.7 255.0 0.513 0.19 0.085
-0.7 285.0 0.857 0.273 0.178
-0.7 315.0 0.566 0.181 0.1002
-0.7 345.0 0.452 0.132 0.0147
-0.5 15.0 1.17 0.336 0.3216
-0.5 45.0 0.863 0.231 0.0643
-0.5 75.0 1.34 0.387 0.0723
-0.5 105.0 1.7 0.458 0.0687
-0.5 135.0 1.3 0.542 0.1684
-0.5 165.0 1.13 0.39 0.2608
-0.5 195.0 1.56 0.441 0.3607
-0.5 225.0 1.99 0.836 0.6538
-0.5 255.0 1.3 0.42 0.3312
-0.5 285.0 1.5 0.392 0.1128
-0.5 315.0 1.27 0.315 0.1288
-0.5 345.0 0.572 0.199 0.0977
-0.3 15.0 1.03 0.263 0.0551
-0.3 45.0 1.47 0.334 0.137
-0.3 75.0 1.82 0.448 0.2474
-0.3 105.0 2.18 0.556 0.4896
-0.3 135.0 2.52 1.17 0.7565
-0.3 165.0 1.5 0.626 0.3495
-0.3 195.0 1.97 0.621 0.4867
-0.3 225.0 2.35 1.0 0.4176
-0.3 255.0 1.35 0.414 0.1177
-0.3 285.0 1.24 0.32 0.1803
-0.3 315.0 1.08 0.256 0.162
-0.3 345.0 1.02 0.269 0.1385
-0.1 15.0 0.608 0.152 0.0431
-0.1 45.0 2.33 0.519 0.4817
-0.1 75.0 2.05 0.464 0.2253
-0.1 105.0 1.46 0.415 0.2492
-0.1 135.0 2.08 0.65 0.5419
-0.1 165.0 0.425 0.263 0.3697
-0.1 195.0 1.2 0.639 0.8089
-0.1 225.0 1.97 0.667 0.4775
-0.1 255.0 1.46 0.389 0.2704
-0.1 285.0 2.38 0.556 0.4681
-0.1 315.0 1.34 0.291 0.2176
-0.1 345.0 0.855 0.184 0.1153
0.1 15.0 1.22 0.268 0.0822
0.1 45.0 0.813 0.225 0.0327
0.1 75.0 1.52 0.358 0.1494
0.1 105.0 2.18 0.492 0.6864
0.1 135.0 1.23 0.318 0.3765
0.1 165.0 15.1 17.0 7.9116
0.1 225.0 2.8 0.726 0.6089
0.1 255.0 1.16 0.306 0.024
0.1 285.0 1.4 0.331 0.074
0.1 315.0 1.51 0.315 0.1334
0.1 345.0 1.07 0.21 0.1982
0.3 15.0 1.31 0.303 0.2847
0.3 45.0 0.994 0.247 0.1686
0.3 75.0 1.45 0.359 0.1022
0.3 105.0 1.04 0.262 0.1382
0.3 135.0 1.36 0.4 0.171
0.3 165.0 1.71 1.16 0.5188
0.3 195.0 0.667 0.519 0.3714
0.3 225.0 2.32 0.661 0.4121
0.3 255.0 2.26 0.501 0.2487
0.3 285.0 1.68 0.482 0.3094
0.3 315.0 1.09 0.249 0.0502
0.3 345.0 0.834 0.202 0.0539
0.5 15.0 0.759 0.189 0.0728
0.5 45.0 1.36 0.35 0.1756
0.5 75.0 1.95 0.594 0.5373
0.5 105.0 2.33 0.616 0.4013
0.5 135.0 0.705 0.209 0.216
0.5 165.0 3.02 2.32 0.9148
0.5 195.0 1.95 1.95 1.0434
0.5 225.0 1.15 0.352 0.1797
0.5 255.0 2.12 0.663 0.5336
0.5 285.0 1.67 0.463 0.1695
0.5 315.0 0.707 0.188 0.1278
0.5 345.0 0.834 0.197 0.18
0.7 15.0 1.02 0.272 0.0439
0.7 45.0 1.31 0.391 0.166
0.7 75.0 1.33 0.514 0.2677
0.7 105.0 1.23 0.424 0.2099
0.7 135.0 2.75 1.11 0.4727
0.7 165.0 0.274 0.307 0.2075
0.7 195.0 1.35 1.24 0.7348
0.7 225.0 0.448 0.2 0.0991
0.7 255.0 0.81 0.273 0.1491
0.7 285.0 0.724 0.274 0.0649
0.7 315.0 0.95 0.297 0.0802
0.7 345.0 0.874 0.229 0.0422
0.9 15.0 0.28 0.132 0.2157
0.9 45.0 0.991 0.377 0.1931
0.9 75.0 0.238 0.115 0.1439
0.9 105.0 0.896 0.433 0.3508
0.9 135.0 0.766 0.38 0.4969
0.9 165.0 0.554 0.373 1.5035
0.9 195.0 0.288 0.132 0.2367
0.9 225.0 0.757 0.378 0.3771
0.9 255.0 0.744 0.409 0.5515
0.9 285.0 0.758 0.383 0.187
0.9 315.0 0.488 0.285 0.173
0.9 345.0 0.68 0.257 0.1284
