Measurement E151M1787

Experiment: EG4
Year: 2016

Experiment comment:

Final asymmetry results for the ep-> e pi+ (n) channel extracted from CLAS/EG4 data obtained using a longitudinally polarized beam and a longitudinally polarized NH3 target (CAA HS07-02).
Spokesperson: Xiaochao Zheng
Reaction: ep → π+n
Polarization: beam (longitudinal), target (longitudinal)
Quantity: ALL
εL: 0.1379
Q2: 0.0593 GeV2
W: 1415.0 GeV
Ebeam: 1.9889 GeV
ε: 0.9219

Slice: cos(θπ+) =

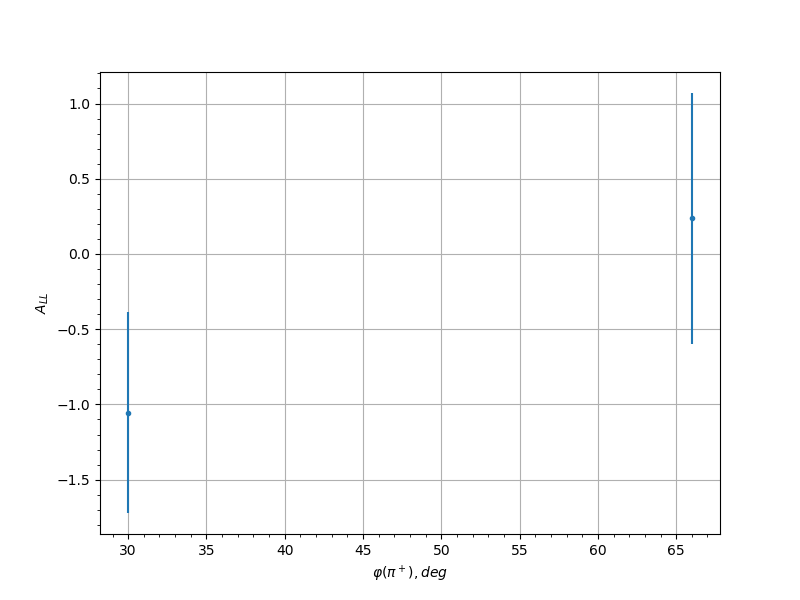

Measurement data
cos(θπ+) φ(π+), [deg] ALL uncertainty syst. uncert.
0.15 30.0 -1.0551 0.6664 0.0706
0.15 66.0 0.2371 0.8327 0.0333
0.25 42.0 -0.5523 0.8655 0.0449
0.25 54.0 -0.4206 0.751 0.0394
0.25 66.0 -0.4521 0.5662 0.0406
0.25 78.0 0.0333 0.5986 0.0301
0.25 282.0 0.0276 0.6727 0.03
0.25 294.0 -0.4874 0.6236 0.0421
0.25 306.0 -1.1288 0.6435 0.0747
0.35 18.0 -0.3418 0.7864 0.0365
0.35 30.0 0.2315 0.7489 0.0331
0.35 66.0 1.1143 0.3882 0.0739
0.35 78.0 -1.3508 0.4331 0.0872
0.35 90.0 -0.0521 0.6775 0.0302
0.35 270.0 0.2263 0.6686 0.033
0.35 282.0 -0.4478 0.4088 0.0404
0.35 294.0 -0.9932 0.418 0.0672
0.35 306.0 -0.8755 0.6053 0.0609
0.35 318.0 -0.853 0.6902 0.0598
0.35 342.0 -0.1635 0.8397 0.0316
0.45 66.0 0.3173 0.4668 0.0356
0.45 78.0 0.3011 0.4098 0.0351
0.45 90.0 -0.3172 0.5429 0.0356
0.45 102.0 1.0877 0.6558 0.0724
0.45 258.0 1.634 0.7372 0.1035
0.45 270.0 0.6902 0.4974 0.0515
0.45 282.0 -0.1348 0.4005 0.0311
0.45 294.0 0.2267 0.442 0.033
0.45 306.0 -0.1861 0.6559 0.032
0.45 318.0 -1.1496 0.716 0.0758
0.55 66.0 0.3168 0.6214 0.0356
0.55 78.0 0.0591 0.4398 0.0302
0.55 90.0 -0.1242 0.4784 0.0309
0.55 102.0 -1.321 0.5578 0.0855
0.55 114.0 -1.9029 0.4976 0.1191
0.55 126.0 -0.0728 0.6508 0.0303
0.55 138.0 0.7581 0.7459 0.0549
0.55 222.0 -0.1283 0.7905 0.031
0.55 234.0 0.0936 0.6884 0.0305
0.55 246.0 -1.4255 0.4911 0.0914
0.55 258.0 0.3616 0.5273 0.0372
0.55 270.0 -0.3126 0.4782 0.0355
0.55 282.0 0.0441 0.4032 0.0301
0.55 294.0 -0.213 0.4927 0.0327
0.55 306.0 -0.1597 0.7968 0.0315
0.65 66.0 -0.2155 0.6005 0.0327
0.65 78.0 -0.2938 0.5568 0.0349
0.65 90.0 1.159 0.5026 0.0764
0.65 102.0 0.2811 0.4905 0.0345
0.65 114.0 -0.989 0.4832 0.067
0.65 126.0 -0.4606 0.4935 0.041
0.65 138.0 -0.6217 0.4922 0.0482
0.65 150.0 0.3793 0.8055 0.0378
0.65 210.0 -0.7337 0.6672 0.0536
0.65 222.0 0.266 0.5072 0.0341
0.65 234.0 0.6968 0.4407 0.0518
0.65 246.0 0.2998 0.4523 0.0351
0.65 258.0 0.4105 0.4324 0.039
0.65 270.0 0.1395 0.4503 0.0312
0.65 282.0 0.6375 0.5568 0.0489
0.65 294.0 -0.306 0.6068 0.0353
0.65 306.0 1.3157 0.5974 0.0852
0.75 66.0 -0.8495 0.6681 0.0596
0.75 78.0 -0.0754 0.5933 0.0303
0.75 90.0 0.8672 0.6773 0.0605
0.75 102.0 -0.1921 0.4873 0.0322
0.75 114.0 0.2454 0.3955 0.0335
0.75 126.0 -0.2433 0.4346 0.0334
0.75 138.0 -0.5588 0.4772 0.0452
0.75 150.0 0.3043 0.5147 0.0352
0.75 174.0 0.6022 0.8312 0.0472
0.75 198.0 1.2459 0.7484 0.0812
0.75 210.0 0.2578 0.5622 0.0338
0.75 222.0 0.6215 0.4151 0.0481
0.75 234.0 0.3221 0.4189 0.0358
0.75 246.0 -0.5167 0.4222 0.0434
0.75 258.0 -1.1919 0.4515 0.0782
0.75 270.0 0.2236 0.6517 0.0329
0.75 282.0 -0.3288 0.6834 0.036
0.75 294.0 -0.8746 0.694 0.0609
0.85 90.0 0.4741 0.7793 0.0415
0.85 102.0 0.3396 0.6928 0.0364
0.85 114.0 0.0267 0.5318 0.03
0.85 126.0 0.5778 0.4565 0.0461
0.85 138.0 0.5877 0.5317 0.0466
0.85 150.0 0.5057 0.7222 0.0429
0.85 162.0 1.0777 0.7576 0.0719
0.85 210.0 0.3238 0.5402 0.0358
0.85 222.0 -0.3534 0.4496 0.0369
0.85 234.0 -0.1414 0.4218 0.0312
0.85 246.0 -0.1864 0.3682 0.0321
0.85 258.0 0.2711 0.4025 0.0342
0.85 270.0 0.7752 0.552 0.0557
0.95 114.0 1.4873 0.6292 0.095
0.95 126.0 0.9373 0.7278 0.0642
0.95 210.0 -0.4741 0.5552 0.0415
0.95 222.0 0.6976 0.5416 0.0518
0.95 234.0 0.328 0.5454 0.036
0.95 246.0 -0.5869 0.4743 0.0465
0.95 258.0 1.1749 0.6188 0.0773
