Measurement E151M1788

Experiment: EG4
Year: 2016

Experiment comment:

Final asymmetry results for the ep-> e pi+ (n) channel extracted from CLAS/EG4 data obtained using a longitudinally polarized beam and a longitudinally polarized NH3 target (CAA HS07-02).
Spokesperson: Xiaochao Zheng
Reaction: ep → π+n
Polarization: beam (longitudinal), target (longitudinal)
Quantity: ALL
εL: 0.1609
Q2: 0.0707 GeV2
W: 1415.0 GeV
Ebeam: 1.9889 GeV
ε: 0.9185

Slice: cos(θπ+) =

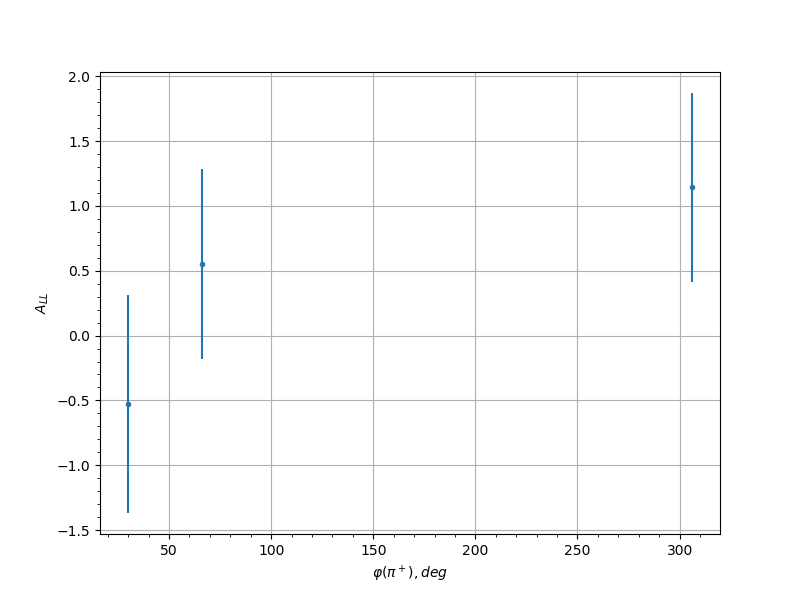

Measurement data
cos(θπ+) φ(π+), [deg] ALL uncertainty syst. uncert.
0.15 30.0 -0.526 0.8421 0.0438
0.15 66.0 0.5511 0.7301 0.0449
0.15 306.0 1.1423 0.7285 0.0754
0.25 18.0 -0.0465 0.7592 0.0301
0.25 54.0 0.4911 0.8 0.0423
0.25 66.0 -0.1897 0.5159 0.0321
0.25 78.0 0.3068 0.6422 0.0353
0.25 282.0 0.7827 0.7386 0.0561
0.25 294.0 -0.3143 0.5694 0.0355
0.25 306.0 0.1121 0.6138 0.0308
0.35 54.0 0.5252 0.867 0.0437
0.35 66.0 -0.4735 0.4751 0.0415
0.35 78.0 0.3623 0.505 0.0372
0.35 90.0 -0.2953 0.8114 0.0349
0.35 282.0 -0.0331 0.4876 0.0301
0.35 294.0 -0.1346 0.4551 0.0311
0.35 306.0 -0.2496 0.6467 0.0336
0.45 66.0 -0.5348 0.5432 0.0442
0.45 78.0 0.3408 0.3974 0.0364
0.45 90.0 0.6417 0.5521 0.0491
0.45 102.0 0.5487 0.8663 0.0448
0.45 270.0 -0.4451 0.4945 0.0403
0.45 282.0 0.1591 0.4114 0.0315
0.45 294.0 -0.4597 0.4439 0.0409
0.45 306.0 0.9092 0.5881 0.0627
0.55 66.0 -0.1655 0.6359 0.0316
0.55 78.0 0.184 0.552 0.032
0.55 90.0 -0.5657 0.564 0.0456
0.55 102.0 0.7719 0.5806 0.0556
0.55 114.0 0.4671 0.6398 0.0412
0.55 126.0 0.2235 0.7439 0.0329
0.55 234.0 1.1885 0.7036 0.078
0.55 246.0 1.3822 0.5896 0.089
0.55 258.0 0.152 0.6289 0.0314
0.55 270.0 1.0874 0.467 0.0724
0.55 282.0 -0.4141 0.4695 0.0391
0.55 294.0 0.2834 0.5368 0.0346
0.55 306.0 -0.411 0.7502 0.039
0.65 66.0 -1.5628 0.5748 0.0993
0.65 78.0 -0.2619 0.6135 0.0339
0.65 90.0 0.4609 0.6534 0.041
0.65 102.0 -0.0104 0.5936 0.03
0.65 114.0 -1.1897 0.4391 0.0781
0.65 126.0 -0.3297 0.4866 0.036
0.65 138.0 -0.5326 0.6054 0.0441
0.65 210.0 -1.3325 0.7017 0.0861
0.65 222.0 -0.1165 0.6073 0.0308
0.65 234.0 -0.6577 0.4935 0.0499
0.65 246.0 -0.3567 0.4673 0.037
0.65 258.0 -1.0609 0.4606 0.0709
0.65 270.0 0.259 0.5217 0.0339
0.65 282.0 1.3017 0.6168 0.0844
0.65 294.0 0.5738 0.5548 0.0459
0.65 306.0 0.2077 0.6157 0.0325
0.75 66.0 2.1484 0.5474 0.1336
0.75 78.0 0.8359 0.75 0.0589
0.75 90.0 0.4186 0.663 0.0393
0.75 102.0 -0.7744 0.5207 0.0557
0.75 114.0 -0.0857 0.4146 0.0304
0.75 126.0 0.2287 0.4173 0.033
0.75 138.0 0.5686 0.4802 0.0457
0.75 150.0 -1.0244 0.5665 0.0689
0.75 162.0 0.3823 0.7981 0.0379
0.75 174.0 0.565 0.7887 0.0455
0.75 198.0 -0.4817 0.7383 0.0419
0.75 210.0 -0.0182 0.5255 0.03
0.75 222.0 0.5723 0.4462 0.0459
0.75 234.0 0.1153 0.3566 0.0308
0.75 246.0 -0.3245 0.4 0.0359
0.75 258.0 0.2025 0.5107 0.0324
0.75 270.0 0.3018 0.5705 0.0351
0.75 282.0 0.862 0.7359 0.0602
0.75 294.0 -1.1239 0.6595 0.0744
0.85 90.0 0.017 0.6711 0.03
0.85 102.0 0.4729 0.6583 0.0415
0.85 114.0 0.2301 0.4978 0.0331
0.85 126.0 -0.3573 0.5518 0.037
0.85 138.0 -0.1667 0.5101 0.0317
0.85 150.0 -0.3595 0.6857 0.0371
0.85 162.0 -0.458 0.7586 0.0409
0.85 198.0 0.3456 0.7499 0.0366
0.85 210.0 0.9172 0.591 0.0632
0.85 222.0 -0.2614 0.519 0.0339
0.85 234.0 0.2981 0.3997 0.035
0.85 246.0 0.3045 0.4017 0.0352
0.85 258.0 -0.5765 0.4313 0.046
0.85 270.0 0.3367 0.4762 0.0363
0.95 102.0 0.7961 0.602 0.0568
0.95 114.0 0.1481 0.7008 0.0313
0.95 210.0 0.0402 0.7452 0.0301
0.95 222.0 0.5641 0.5423 0.0455
0.95 234.0 1.5087 0.4464 0.0962
0.95 246.0 -0.0526 0.4381 0.0302
0.95 258.0 0.1059 0.4565 0.0307
0.95 270.0 -0.2924 0.6093 0.0348
