Measurement E151M2080

Experiment:	EG4
Year:	2016	Experiment comment: Final asymmetry results for the ep-> e pi+ (n) channel extracted from CLAS/EG4 data obtained using a longitudinally polarized beam and a longitudinally polarized NH3 target (CAA HS07-02).
Spokesperson:	Xiaochao Zheng
Reaction:	ep → π⁺n
Polarization:	beam (longitudinal), target (longitudinal)
Quantity:	A_LL
ε_L:	0.0574
Q²:	0.0415 GeV²
W:	1535.0 GeV
E_beam:	2.2596 GeV
ε:	0.9039

Slice: cos(θ_π⁺) =

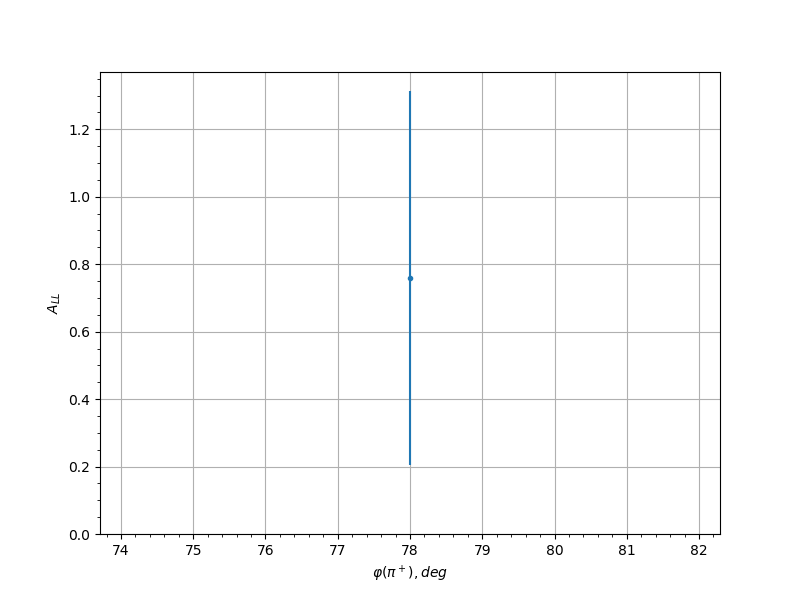

Measurement data
cos(θ_π⁺)	φ(π⁺), [deg]	A_LL	uncertainty	syst. uncert.
0.35	78.0	0.7588	0.5555	0.0643
0.55	78.0	-1.0081	0.9718	0.0974
0.55	114.0	-0.509	1.0335	0.0556
0.55	126.0	1.5678	0.9758	0.1472
0.55	282.0	-1.1228	0.8428	0.1075
0.65	126.0	0.1	1.1974	0.0314
0.65	138.0	0.1786	1.0092	0.0342
0.65	222.0	-0.6121	0.9245	0.0638
0.75	114.0	-0.2407	1.2772	0.0373
0.75	138.0	1.2562	1.0829	0.1193
0.75	210.0	0.1453	1.1406	0.0328
0.75	234.0	-0.2972	1.0814	0.0406
0.75	282.0	-0.4948	0.9215	0.0545
0.85	102.0	-2.2746	1.3083	0.2112
0.85	114.0	-0.6091	1.2537	0.0635
0.85	222.0	-0.9279	1.109	0.0904
0.85	234.0	0.6959	1.0102	0.0706
0.45	66.0	-0.521	0.7611	0.0453
0.45	270.0	-0.7737	0.8464	0.0586
0.45	282.0	-0.0413	0.8289	0.0301
0.55	114.0	-1.175	0.6873	0.0821
0.55	138.0	-1.8058	0.7755	0.1212
0.55	282.0	-1.1615	0.6996	0.0813
0.65	126.0	0.0839	0.9185	0.0305
0.65	150.0	0.8394	0.8379	0.0623
0.65	210.0	-1.1838	0.9057	0.0826
0.65	222.0	-0.3277	0.9716	0.0368
0.65	270.0	0.0365	0.8487	0.0301
0.75	126.0	0.6707	0.9124	0.0529
0.75	138.0	-1.0429	0.8243	0.0742
0.75	210.0	-0.5811	1.0529	0.0483
0.75	222.0	-0.82	0.9192	0.0612
0.75	234.0	-0.3624	0.8981	0.0382
0.75	282.0	-0.3077	0.8783	0.0361
0.85	102.0	0.1119	0.9486	0.0309
0.85	114.0	-0.3874	0.8054	0.0392
0.85	210.0	1.3822	0.9215	0.0948
0.85	222.0	-0.0537	0.9372	0.0302
0.85	234.0	1.8886	0.9797	0.1265
