Measurement E151M2081

Experiment: EG4
Year: 2016

Experiment comment:

Final asymmetry results for the ep-> e pi+ (n) channel extracted from CLAS/EG4 data obtained using a longitudinally polarized beam and a longitudinally polarized NH3 target (CAA HS07-02).
Spokesperson: Xiaochao Zheng
Reaction: ep → π+n
Polarization: beam (longitudinal), target (longitudinal)
Quantity: ALL
εL: 0.0677
Q2: 0.0496 GeV2
W: 1535.0 GeV
Ebeam: 2.2596 GeV
ε: 0.9017

Slice: cos(θπ+) =

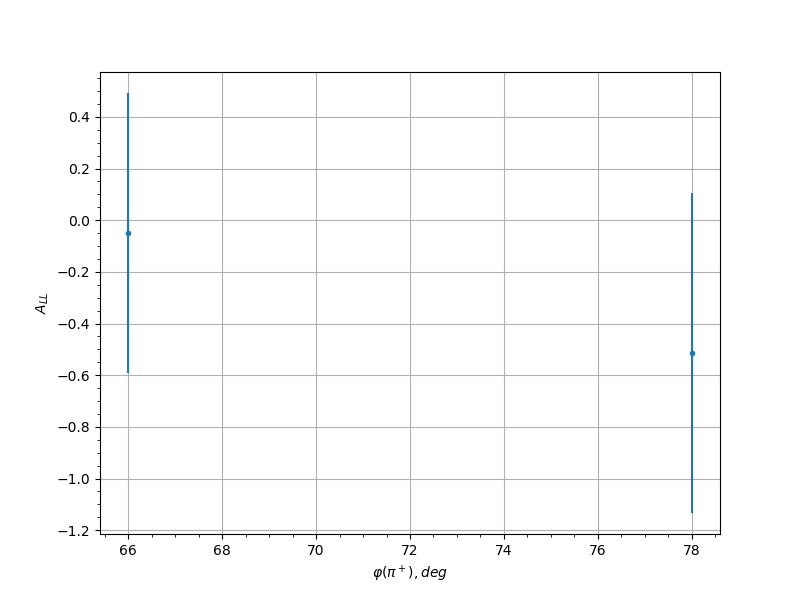

Measurement data
cos(θπ+) φ(π+), [deg] ALL uncertainty syst. uncert.
0.25 66.0 -0.0502 0.5425 0.0639
0.25 78.0 -0.5143 0.619 0.0519
0.35 54.0 -0.9149 0.6838 0.0666
0.35 66.0 -0.5325 0.5246 0.0485
0.35 78.0 -0.0041 0.5693 0.0357
0.35 258.0 -1.286 0.8274 0.0889
0.35 270.0 0.3544 0.4638 0.0395
0.35 282.0 -0.5446 0.4583 0.051
0.35 294.0 -0.526 0.5222 0.0659
0.45 66.0 -0.5924 0.5408 0.0788
0.45 78.0 0.4505 0.4413 0.0508
0.45 90.0 -0.0679 0.8408 0.0303
0.45 114.0 0.9301 0.6442 0.1074
0.45 126.0 0.8722 0.5956 0.0669
0.45 258.0 -0.761 0.8958 0.0761
0.45 270.0 0.3933 0.4841 0.0668
0.45 282.0 -0.3683 0.4591 0.0535
0.45 294.0 0.0393 0.4576 0.0377
0.55 66.0 -0.104 0.8237 0.0308
0.55 78.0 0.7547 0.5276 0.0632
0.55 90.0 0.6125 1.038 0.0638
0.55 114.0 0.0829 0.5049 0.0534
0.55 126.0 -0.4518 0.5537 0.0835
0.55 138.0 -0.3884 0.616 0.0409
0.55 150.0 -0.8992 0.8607 0.0657
0.55 210.0 -0.7814 0.687 0.0728
0.55 222.0 -0.8985 0.5551 0.1156
0.55 234.0 0.4784 0.6279 0.0623
0.55 246.0 0.3413 0.7778 0.0373
0.55 258.0 0.398 0.5251 0.0465
0.55 270.0 0.2676 0.4221 0.0367
0.55 282.0 0.8781 0.4418 0.0699
0.65 66.0 0.8442 1.1214 0.0832
0.65 78.0 0.2816 0.6502 0.0718
0.65 102.0 -0.274 0.6907 0.0537
0.65 114.0 0.3694 0.4626 0.0948
0.65 126.0 0.2067 0.4664 0.0355
0.65 138.0 -0.1031 0.5638 0.0394
0.65 150.0 0.9495 0.836 0.0687
0.65 198.0 0.2044 0.6779 0.0914
0.65 210.0 0.6542 0.557 0.0734
0.65 222.0 0.5302 0.5379 0.0484
0.65 234.0 -0.1021 0.5479 0.0682
0.65 246.0 -0.8214 0.5628 0.0786
0.65 258.0 0.4395 0.8176 0.0414
0.65 270.0 0.0099 0.5741 0.0306
0.75 66.0 0.7851 0.6312 0.0592
0.75 114.0 0.5713 0.6828 0.0478
0.75 126.0 -0.5261 0.6464 0.0455
0.75 138.0 0.064 0.6489 0.0303
0.75 150.0 0.6441 0.9115 0.0515
0.75 198.0 2.582 0.8537 0.1706
0.75 210.0 0.5964 0.7764 0.049
0.75 222.0 -0.385 0.6716 0.0391
0.75 234.0 0.5531 0.6945 0.0468
0.75 246.0 0.0343 0.8225 0.0301
0.75 270.0 0.0075 0.9184 0.03
0.75 282.0 0.0082 0.5856 0.03
0.75 294.0 -0.1091 0.6511 0.0308
0.85 102.0 0.6211 0.6874 0.0503
0.85 114.0 -1.1745 0.7556 0.0821
0.85 126.0 0.1443 0.7964 0.0314
0.85 138.0 -0.077 1.0174 0.0304
0.85 198.0 -1.8096 0.922 0.1215
0.85 210.0 -1.7714 0.7735 0.1191
0.85 222.0 0.0203 0.6456 0.03
0.85 234.0 -0.2286 0.7592 0.0335
0.85 246.0 -0.1307 0.8209 0.0312
0.85 258.0 -0.0479 1.0159 0.0302
0.95 234.0 0.3735 1.4628 0.0386
0.65 294.0 0.5778 0.7778 0.061
0.75 102.0 -2.2716 1.1329 0.2109
0.75 114.0 -0.9769 0.8828 0.0947
0.75 126.0 -3.028 0.8178 0.2799
0.75 138.0 0.2184 0.8504 0.0361
0.75 150.0 -1.86 1.125 0.1735
0.75 210.0 -0.1906 1.0114 0.0347
0.75 222.0 -0.2714 0.762 0.039
0.75 234.0 -0.8412 1.024 0.0829
0.75 246.0 1.1915 0.9169 0.1135
0.75 270.0 -1.2954 0.9707 0.1228
0.75 282.0 -0.3483 0.6445 0.0439
0.75 294.0 1.7804 0.698 0.1664
0.85 102.0 3.2985 0.8911 0.3046
0.85 114.0 -1.9146 1.2929 0.1785
0.85 198.0 0.0741 1.3234 0.0308
0.85 222.0 0.401 0.875 0.0475
0.85 234.0 0.3982 0.8781 0.0473
0.95 222.0 3.9931 2.9429 0.3682
0.95 234.0 -1.4426 3.4476 0.1359
