Measurement E151M2203

Experiment: EG4
Year: 2016

Experiment comment:

Final asymmetry results for the ep-> e pi+ (n) channel extracted from CLAS/EG4 data obtained using a longitudinally polarized beam and a longitudinally polarized NH3 target (CAA HS07-02).
Spokesperson: Xiaochao Zheng
Reaction: ep → π+n
Polarization: beam (longitudinal), target (longitudinal)
Quantity: ALL
εL: 0.5965
Q2: 0.205 GeV2
W: 1325.0 GeV
Ebeam: 2.999 GeV
ε: 0.9642

Slice: cos(θπ+) =

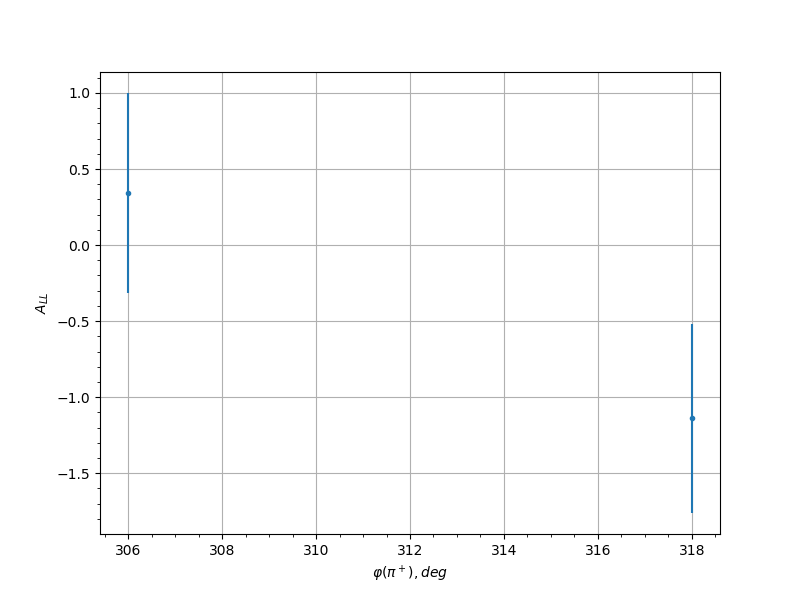

Measurement data
cos(θπ+) φ(π+), [deg] ALL uncertainty syst. uncert.
-0.05 306.0 0.3408 0.6591 0.0389
-0.05 318.0 -1.14 0.6218 0.0879
0.05 54.0 -0.6095 0.8078 0.0534
0.05 66.0 0.9961 0.6783 0.0782
0.05 294.0 -0.7983 0.8249 0.0652
0.05 306.0 -0.1306 0.6204 0.0315
0.15 54.0 0.0308 0.6869 0.0301
0.15 66.0 -1.314 0.5087 0.0999
0.15 294.0 1.2546 0.4732 0.0958
0.15 306.0 0.8141 0.5361 0.0662
0.25 54.0 0.585 0.7551 0.052
0.25 66.0 -0.0211 0.5196 0.03
0.25 78.0 1.6475 0.6062 0.1232
0.25 294.0 -0.4828 0.5854 0.0461
0.25 306.0 0.2886 0.6133 0.0366
0.35 54.0 1.5958 0.6495 0.1195
0.35 66.0 -1.4717 0.45 0.1109
0.35 78.0 1.2814 0.6147 0.0976
0.35 282.0 -0.8178 0.7105 0.0665
0.35 294.0 0.566 0.6087 0.0508
0.35 306.0 0.4229 0.6919 0.0429
0.45 54.0 0.755 0.6567 0.0624
0.45 66.0 -0.4391 0.5673 0.0437
0.45 78.0 -1.1105 0.7075 0.0859
0.45 282.0 0.0039 0.7115 0.03
0.45 294.0 -0.0963 0.5482 0.0308
0.55 66.0 0.1593 0.7302 0.0321
0.55 78.0 0.0557 0.8401 0.0303
0.55 90.0 1.5124 0.5401 0.1137
0.55 102.0 1.5756 0.7909 0.1181
0.55 270.0 -0.1467 0.5659 0.0318
0.55 282.0 0.1958 0.5556 0.0332
0.55 294.0 0.1992 0.6583 0.0333
0.65 66.0 0.0983 0.7326 0.0308
0.65 78.0 -0.0721 0.4237 0.0305
0.65 90.0 0.0823 0.4254 0.0306
0.65 102.0 -0.2181 0.4399 0.0339
0.65 114.0 -0.369 0.7957 0.0402
0.65 258.0 -0.1109 0.5135 0.0311
0.65 270.0 0.4017 0.4094 0.0418
0.65 282.0 0.567 0.4559 0.0509
0.65 294.0 -0.2192 0.5775 0.034
0.75 66.0 -0.655 0.569 0.0562
0.75 78.0 0.0271 0.3816 0.0301
0.75 90.0 -0.268 0.3357 0.0357
0.75 102.0 -0.3735 0.3884 0.0404
0.75 114.0 -0.2792 0.4711 0.0362
0.75 126.0 1.0353 0.6078 0.0808
0.75 234.0 -0.2185 0.616 0.0339
0.75 246.0 0.0681 0.4726 0.0304
0.75 258.0 0.571 0.4078 0.0511
0.75 270.0 -0.4526 0.3374 0.0445
0.75 282.0 0.6323 0.3711 0.0548
0.75 294.0 0.343 0.3995 0.039
0.75 306.0 0.6826 0.5479 0.0579
0.85 54.0 0.9921 0.6262 0.0779
0.85 66.0 0.4311 0.6114 0.0433
0.85 78.0 0.1923 0.3616 0.0331
0.85 90.0 -0.2803 0.3295 0.0362
0.85 102.0 -0.2818 0.375 0.0363
0.85 114.0 0.2705 0.3736 0.0358
0.85 126.0 -0.1666 0.4503 0.0323
0.85 138.0 0.4806 0.6595 0.046
0.85 150.0 -1.9056 0.7481 0.1414
0.85 198.0 -0.3546 0.8881 0.0395
0.85 210.0 0.8657 0.6383 0.0696
0.85 222.0 -0.1108 0.5567 0.0311
0.85 234.0 0.9126 0.4182 0.0727
0.85 246.0 -0.1955 0.3994 0.0332
0.85 258.0 0.3369 0.3377 0.0387
0.85 270.0 0.4788 0.3097 0.0459
0.85 282.0 -0.245 0.3215 0.0349
0.85 294.0 0.3362 0.3582 0.0387
0.85 306.0 0.3577 0.4292 0.0397
0.95 54.0 -0.7699 0.6899 0.0634
0.95 66.0 -0.0037 0.7308 0.03
0.95 78.0 0.0827 0.4023 0.0306
0.95 90.0 0.0125 0.3724 0.03
0.95 102.0 -0.0646 0.4477 0.0304
0.95 114.0 0.2448 0.4291 0.0349
0.95 126.0 0.0668 0.4574 0.0304
0.95 138.0 -0.6307 0.5015 0.0547
0.95 150.0 -0.31 0.5357 0.0375
0.95 162.0 0.6406 0.5788 0.0553
0.95 174.0 -0.3678 0.8022 0.0401
0.95 186.0 0.3828 0.7229 0.0409
0.95 198.0 -0.1274 0.6121 0.0314
0.95 210.0 0.7913 0.6211 0.0647
0.95 222.0 0.1312 0.4821 0.0315
0.95 234.0 0.1321 0.4388 0.0315
0.95 246.0 -0.3837 0.4675 0.0409
0.95 258.0 0.5896 0.3845 0.0522
0.95 270.0 -0.0501 0.3815 0.0302
0.95 282.0 0.6219 0.357 0.0542
0.95 294.0 -0.2776 0.3384 0.0361
0.95 306.0 0.0479 0.3979 0.0302
0.95 318.0 0.665 0.5048 0.0568
