Measurement E151M2204

Experiment: EG4
Year: 2016

Experiment comment:

Final asymmetry results for the ep-> e pi+ (n) channel extracted from CLAS/EG4 data obtained using a longitudinally polarized beam and a longitudinally polarized NH3 target (CAA HS07-02).
Spokesperson: Xiaochao Zheng
Reaction: ep → π+n
Polarization: beam (longitudinal), target (longitudinal)
Quantity: ALL
εL: 0.6591
Q2: 0.2445 GeV2
W: 1325.0 GeV
Ebeam: 2.999 GeV
ε: 0.9597

Slice: cos(θπ+) =

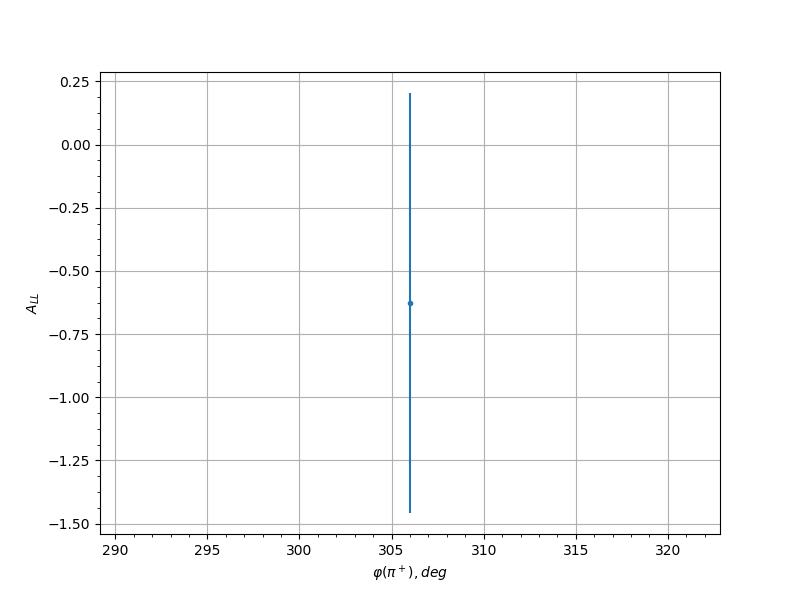

Measurement data
cos(θπ+) φ(π+), [deg] ALL uncertainty syst. uncert.
-0.15 306.0 -0.6268 0.8311 0.0545
-0.05 54.0 0.8954 0.8512 0.0715
-0.05 306.0 -0.1886 0.6986 0.033
0.05 54.0 -1.0123 0.6903 0.0793
0.05 66.0 -0.0901 0.6405 0.0307
0.05 306.0 -0.3586 0.7403 0.0397
0.15 54.0 -0.6534 0.7356 0.0561
0.15 66.0 0.5549 0.5814 0.0502
0.15 294.0 -0.6516 0.8372 0.056
0.15 306.0 -1.0021 0.7009 0.0786
0.25 54.0 -1.2766 0.7215 0.0973
0.25 66.0 -0.6593 0.5706 0.0564
0.25 78.0 0.0821 0.7972 0.0306
0.25 294.0 -0.0041 0.5646 0.03
0.25 306.0 0.7015 0.5724 0.0591
0.35 54.0 0.064 0.8873 0.0304
0.35 66.0 -1.1912 0.6045 0.0914
0.35 78.0 0.6932 0.6914 0.0585
0.35 294.0 0.1499 0.6528 0.0319
0.45 54.0 0.5419 0.7618 0.0494
0.45 66.0 1.0439 0.6068 0.0814
0.45 78.0 0.2876 0.9275 0.0365
0.45 270.0 -0.06 0.7413 0.0303
0.45 282.0 0.8072 0.8682 0.0658
0.45 294.0 -0.9417 0.7562 0.0746
0.55 66.0 0.3797 0.8384 0.0407
0.55 78.0 -0.3995 0.6716 0.0417
0.55 90.0 0.418 0.6739 0.0426
0.55 102.0 1.4255 0.7713 0.1076
0.55 270.0 0.2585 0.5933 0.0354
0.55 282.0 0.3078 0.5547 0.0374
0.55 294.0 1.0195 0.6162 0.0798
0.65 66.0 -0.2357 0.6476 0.0345
0.65 78.0 0.1065 0.5021 0.031
0.65 90.0 0.4389 0.4631 0.0437
0.65 102.0 0.414 0.5413 0.0424
0.65 114.0 -0.0274 0.8159 0.0301
0.65 258.0 0.0782 0.5165 0.0305
0.65 270.0 0.2129 0.4253 0.0337
0.65 282.0 0.1504 0.4886 0.0319
0.65 294.0 0.4966 0.5248 0.0469
0.75 66.0 -0.0759 0.5352 0.0305
0.75 78.0 0.3818 0.3753 0.0408
0.75 90.0 -0.132 0.3601 0.0315
0.75 102.0 -0.2023 0.4839 0.0334
0.75 114.0 -0.8097 0.4776 0.0659
0.75 126.0 0.8219 0.7663 0.0667
0.75 234.0 1.7047 0.6831 0.1272
0.75 246.0 0.2643 0.5236 0.0356
0.75 258.0 0.3377 0.3928 0.0387
0.75 270.0 0.0741 0.3824 0.0305
0.75 282.0 -0.5806 0.3674 0.0517
0.75 294.0 -0.2029 0.4067 0.0334
0.75 306.0 0.6628 0.5469 0.0567
0.85 54.0 -0.7286 0.5831 0.0608
0.85 66.0 -0.3407 0.5159 0.0389
0.85 78.0 -0.3865 0.4081 0.0411
0.85 90.0 -0.0929 0.3952 0.0307
0.85 102.0 0.614 0.3405 0.0537
0.85 114.0 0.0316 0.4324 0.0301
0.85 126.0 1.1032 0.5259 0.0854
0.85 138.0 -1.0253 0.6706 0.0802
0.85 150.0 -2.4523 2.4523 0.1803
0.85 210.0 1.7963 0.7714 0.1337
0.85 222.0 -0.4411 0.5093 0.0439
0.85 234.0 0.5922 0.4586 0.0524
0.85 246.0 -0.1585 0.406 0.0321
0.85 258.0 0.2621 0.4274 0.0355
0.85 270.0 -0.1532 0.367 0.032
0.85 282.0 0.5563 0.4046 0.0503
0.85 294.0 -0.1706 0.3483 0.0324
0.85 306.0 -0.4764 0.3851 0.0458
0.85 318.0 0.3502 0.5901 0.0393
0.95 66.0 0.5633 0.4628 0.0507
0.95 78.0 -0.3395 0.4624 0.0388
0.95 90.0 0.1496 0.4358 0.0319
0.95 102.0 -0.5693 0.4958 0.051
0.95 114.0 0.694 0.4388 0.0586
0.95 126.0 0.2176 0.5444 0.0339
0.95 138.0 0.1191 0.5791 0.0312
0.95 150.0 0.9107 0.5904 0.0725
0.95 162.0 0.825 0.8642 0.0669
0.95 174.0 0.5876 0.8514 0.0521
0.95 186.0 1.5491 0.7823 0.1163
0.95 198.0 0.3149 0.6758 0.0377
0.95 210.0 0.5049 0.644 0.0473
0.95 222.0 0.1124 0.528 0.0311
0.95 234.0 -0.3438 0.4402 0.039
0.95 246.0 0.5802 0.449 0.0517
0.95 258.0 -0.0693 0.448 0.0304
0.95 270.0 -0.4069 0.4153 0.0421
0.95 282.0 -0.3458 0.418 0.0391
0.95 294.0 0.7604 0.4324 0.0628
0.95 306.0 -0.0882 0.3772 0.0307
0.95 318.0 -1.3522 0.4358 0.1025
0.95 330.0 -0.5367 0.7982 0.0491
0.95 342.0 0.5792 0.6765 0.0516
