Measurement E213M169
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π−,p) | |
| Q2: | 2.0 — 2.4 GeV2 | |
| W: | 1.45 — 1.475 GeV | |
| Ebeam: | 5.754 GeV | |

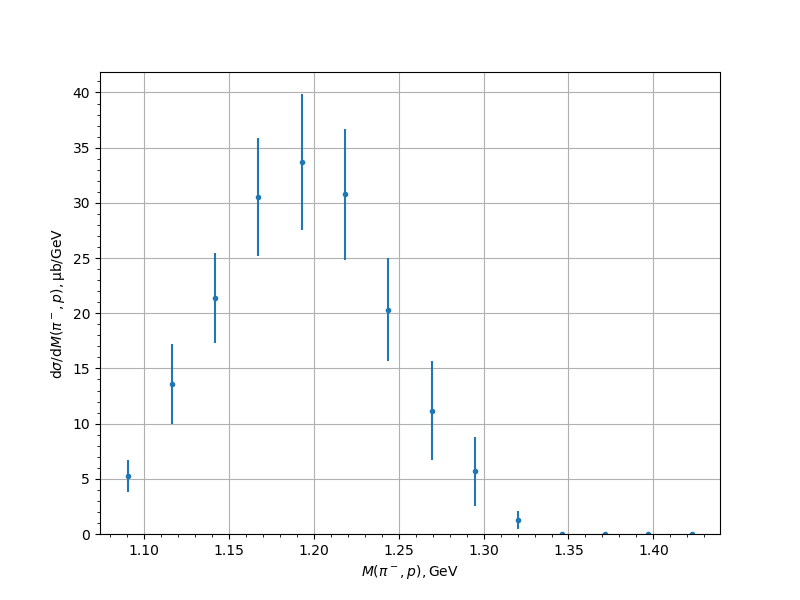

| M(π−,p), [GeV] | dσ/dM(π−,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.090613 | 5.2875 | 0.5124 | 1.0247 | 1.4475 |
| 1.116155 | 13.5917 | 0.9711 | 2.5506 | 3.6074 |
| 1.141697 | 21.3599 | 1.4815 | 3.7714 | 4.052 |
| 1.167239 | 30.5311 | 1.2017 | 5.2222 | 5.3587 |
| 1.192781 | 33.6807 | 1.3764 | 6.025 | 6.1802 |
| 1.218323 | 30.7571 | 1.6479 | 5.6794 | 5.9136 |
| 1.243865 | 20.3273 | 0.9963 | 4.5285 | 4.6368 |
| 1.269407 | 11.1521 | 0.6308 | 3.1039 | 4.4802 |
| 1.294949 | 5.6635 | 0.3845 | 2.1054 | 3.1288 |
| 1.320491 | 1.2893 | 0.1451 | 0.5779 | 0.8224 |
| 1.346033 | 0.0012 | 0.0001 | 0.0007 | 0.0007 |
| 1.371575 | 0.0 | 0.0 | 0.0 | 0.0 |
| 1.397117 | 0.0 | 0.0 | 0.0 | 0.0 |
| 1.422659 | 0.0 | 0.0 | 0.0 | 0.0 |
Experiment comment:
