Measurement E213M170
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π+,π−) | |
| Q2: | 2.0 — 2.4 GeV2 | |
| W: | 1.45 — 1.475 GeV | |
| Ebeam: | 5.754 GeV | |

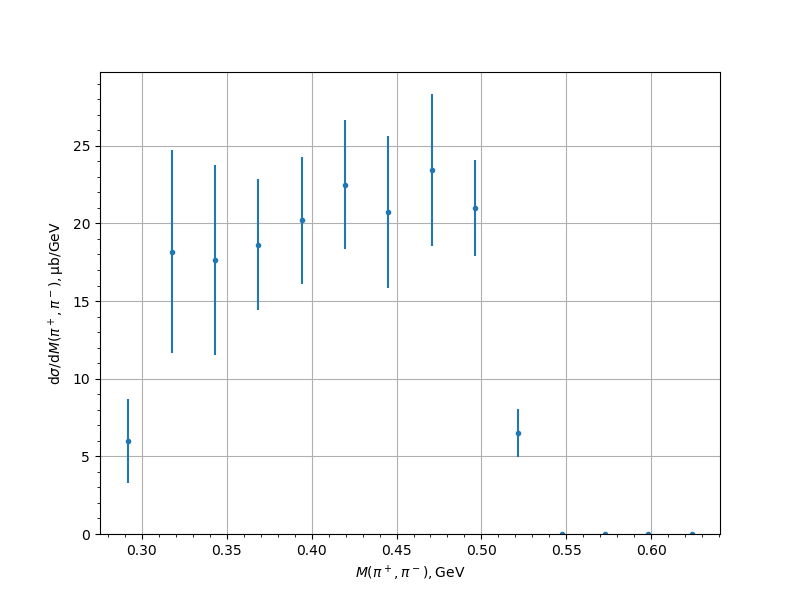

| M(π+,π−), [GeV] | dσ/dM(π+,π−), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 0.291911 | 5.9905 | 0.4606 | 1.9102 | 2.7017 |
| 0.317453 | 18.171 | 1.2084 | 4.6203 | 6.5398 |
| 0.342995 | 17.6304 | 1.0181 | 4.3165 | 6.1056 |
| 0.368537 | 18.625 | 1.0894 | 4.0749 | 4.218 |
| 0.394079 | 20.1996 | 1.0254 | 3.9528 | 4.0836 |
| 0.419621 | 22.5006 | 1.0784 | 4.0123 | 4.1547 |
| 0.445163 | 20.7416 | 1.0596 | 3.4765 | 4.9187 |
| 0.470705 | 23.4308 | 1.1781 | 3.4586 | 4.905 |
| 0.496247 | 20.9933 | 0.9986 | 2.919 | 3.0851 |
| 0.521789 | 6.5223 | 0.4655 | 1.0935 | 1.5479 |
| 0.547331 | 0.0043 | 0.0015 | 0.0026 | 0.003 |
| 0.572873 | 0.0 | 0.0 | 0.0 | 0.0 |
| 0.598415 | 0.0 | 0.0 | 0.0 | 0.0 |
| 0.623957 | 0.0 | 0.0 | 0.0 | 0.0 |
Experiment comment:
