Measurement E213M171
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π+,p) | |
| Q2: | 2.0 — 2.4 GeV2 | |
| W: | 1.45 — 1.475 GeV | |
| Ebeam: | 5.754 GeV | |

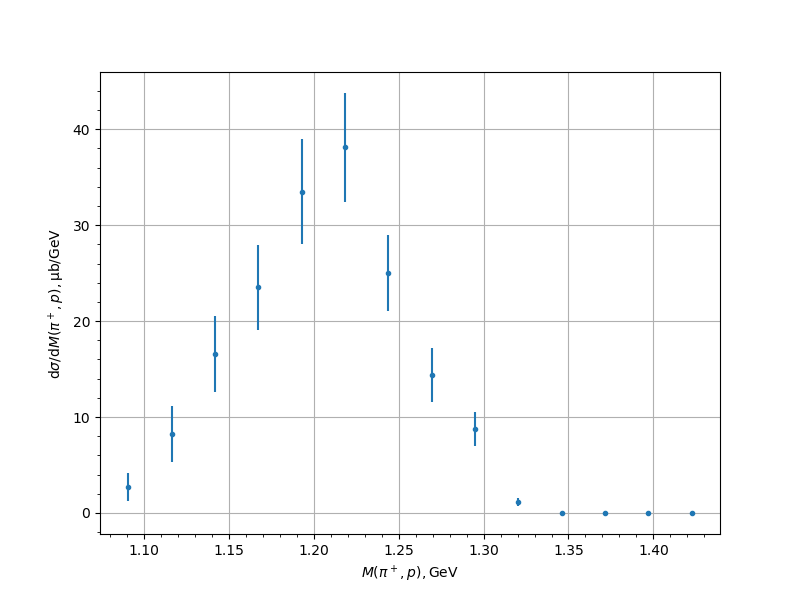

| M(π+,p), [GeV] | dσ/dM(π+,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.090613 | 2.7333 | 0.1345 | 1.466 | 1.4722 |
| 1.116155 | 8.215 | 0.5007 | 2.8718 | 2.9151 |
| 1.141697 | 16.5733 | 0.9564 | 3.8019 | 3.9204 |
| 1.167239 | 23.5045 | 1.0578 | 4.3179 | 4.4455 |
| 1.192781 | 33.4968 | 1.4682 | 5.2315 | 5.4337 |
| 1.218323 | 38.1022 | 1.6132 | 5.4354 | 5.6697 |
| 1.243865 | 24.9941 | 1.3016 | 3.7141 | 3.9355 |
| 1.269407 | 14.3737 | 1.4398 | 2.4045 | 2.8026 |
| 1.294949 | 8.7235 | 0.6568 | 1.636 | 1.7629 |
| 1.320491 | 1.1341 | 0.1165 | 0.4319 | 0.4473 |
| 1.346033 | 0.0015 | 0.005 | 0.0009 | 0.0051 |
| 1.371575 | 0.0 | 0.0025 | 0.0 | 0.0 |
| 1.397117 | 0.0 | 0.0001 | 0.0 | 0.0 |
| 1.422659 | 0.0 | 0.0025 | 0.0 | 0.0 |
Experiment comment:
