Measurement E213M529
| Experiment: | E1-6, 2025 | |
|---|---|---|
| Year: | 2001 | |
| Spokespersons: | R.W. Gothe, A. Trivedi | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/dM(π−,p) | |
| Q2: | 2.4 — 3.0 GeV2 | |
| W: | 1.725 — 1.75 GeV | |
| Ebeam: | 5.754 GeV | |

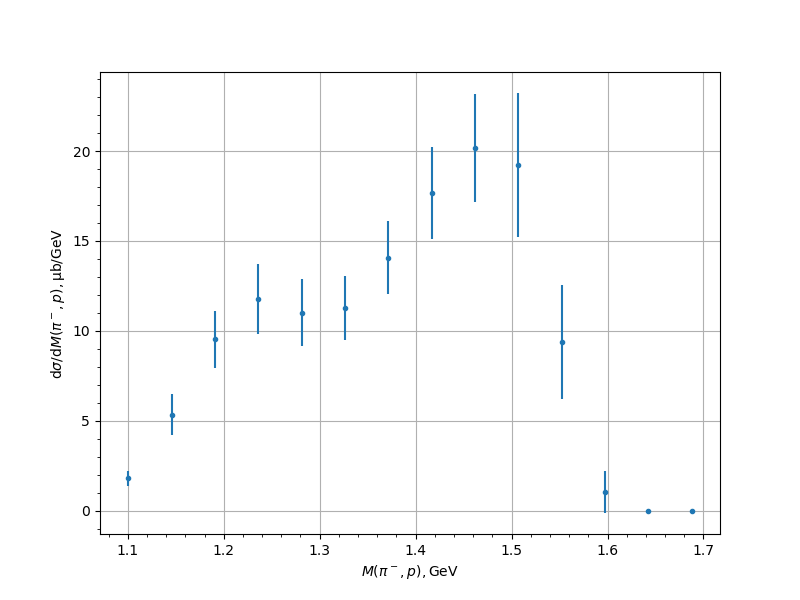

| M(π−,p), [GeV] | dσ/dM(π−,p), [μb/GeV] | uncertainty | syst. uncert. | total uncert. |
|---|---|---|---|---|
| 1.100435 | 1.7948 | 0.2161 | 0.2961 | 0.4331 |
| 1.145619 | 5.3432 | 0.4078 | 0.8083 | 1.1427 |
| 1.190804 | 9.5313 | 0.4287 | 1.5194 | 1.5787 |
| 1.235989 | 11.77 | 0.482 | 1.9095 | 1.9694 |
| 1.281174 | 11.0029 | 0.4471 | 1.8035 | 1.8581 |
| 1.326359 | 11.2562 | 0.4355 | 1.72 | 1.7743 |
| 1.371544 | 14.0709 | 0.5092 | 1.9752 | 2.0398 |
| 1.416728 | 17.6431 | 0.7863 | 2.4329 | 2.5568 |
| 1.461913 | 20.1757 | 0.8478 | 2.8625 | 2.9854 |
| 1.507098 | 19.2201 | 0.8142 | 2.853 | 4.0074 |
| 1.552283 | 9.3782 | 0.7118 | 1.6872 | 3.1938 |
| 1.597468 | 1.04 | 0.1412 | 0.2665 | 1.1719 |
| 1.642653 | 0.0 | 0.0 | 0.0 | 0.0 |
| 1.687837 | 0.0 | 0.0 | 0.0 | 0.0 |
Experiment comment:
