Measurement E216M232
| Experiment: | CLAS12 Run Group A | |
|---|---|---|
| Year: | 2018 |
|
| Spokesperson: | Krishna Chandra | |
| Reaction: | ep → π+π−p | |
| Polarization: | none | |
| Quantity: | dσ/d(−cos(θ(π−))) | |
| Q2: | 2.4 — 3.0 GeV2 | |
| W: | 1.95 — 2.0 GeV | |

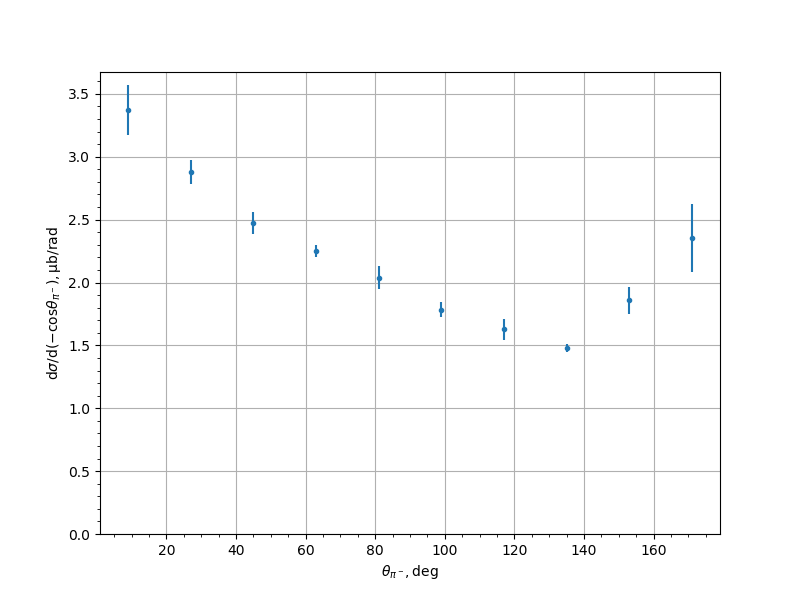

| θ(π−), [deg] | dσ/d(−cos(θ(π−))), [μb/rad] | uncertainty |
|---|---|---|
| 9.0 | 3.37141 | 0.19668 |
| 27.0 | 2.87765 | 0.0964898 |
| 45.0 | 2.47352 | 0.0838178 |
| 63.0 | 2.25151 | 0.0458591 |
| 81.0 | 2.03808 | 0.0905568 |
| 99.0 | 1.78322 | 0.0592861 |
| 117.0 | 1.62775 | 0.0857236 |
| 135.0 | 1.48066 | 0.0329288 |
| 153.0 | 1.85749 | 0.104497 |
| 171.0 | 2.35559 | 0.26903 |
